Shanbao PF1010 PF1210 PF1214 PF1315 Impact Crusher for Stone Crushing

Product Description

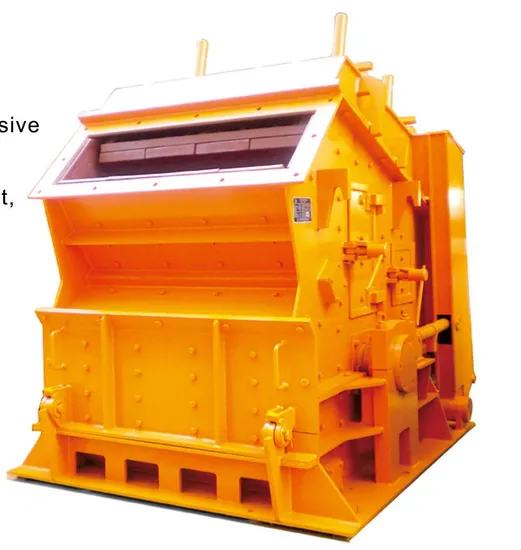

DENP Impact Crusher
Product Description
Product Description
The products of this series are generally used for secondary crushing with compressive resistance up to 350MPa and are suitable for crushing limestone, concrete and basalt, especially for preparing pavement stone. They are widely used in various fields such as mining, smelting, building materials, highway, railway, water conservancy and chemical industry etc.
Advantages
1.Big ratio of crushing
2.Unique impact plate with high wear resistance
3.Hammer made of high-chromium iron with advantages of good wear resistance and high impact resistance.
4.Big adjusting range of discharge gate to meet different customer's needs
5.Cover can be opened hydraulically or manually
6.Small noise and environmental-friendly
7.No-key connection
Technical Parameters

Model	Feed Hole Dimension (mm)	Max Feed Size (mm)	Rotor Dimension {mm*mm)	Handling Ability (t/h)	Power (kw)	Overall Dimension (mm*mm*mm)	Weight (t)
PF1007	400*730	250	1000*700	30-50	37-55	2440*1580*2672	98
PF1010	400*1080	250	1035*1050	50'80	55/90	2280*1840*2389	128
PF1210	400*1080	350	250*1050	70-120	110	3165*2027*2729	146
PF1214	400*1430	350	1250*1400	95-145	132/160	2571*2403*2705	17
PF1315	860'1520	350	1320*1500	150-200	220	3154*2695*2613	215
PF1320	860*2030	500	1320*1200	200-280	315	3320*3218*2613	25
PF1416	1052*1652	500	1420*1600	280^350	355	3405'2813*2713	29
PF1520	2040*1315	700	1512*2000	350^450	400/450	4138*3422*3649	44
PF1620	2040*1315	700	1612*2000	400'600	500	4236*3572*3735	47
PF1820	1620*2040	700	1800*2000	550'800	630/710	4471*3250*4008	66

Relative Products
Ralative Products

Blow bar / impact plate / impact hammer:	PF series, SMB series, PFW series, NP series, HS series, PLFC series, APK series,etc(OEM).
Liner plate
Main shaft
Side plate
Block plate

Who We Are
Who We Are:
DENP Industrial is a global manufacturer and supplier of crusher wear parts, crusher spare parts and original Shanbao brand stone crushers. DENP Foundry takes up 15000 square meter's factory, and produce capacity of around 10,000 tons annually,84 workers and 7 engineers. The biggest single casting we can make is 6 tons and diameter no more than 3 meters. DENP's products have a 20% to 30% longer service life than other traditional manganese and Chrome products in China. We has established import and export business since 2010 and have many years of history in the casting steel industry, basis on a foothold in the domestic market to a large number of exports to the overseas market.
DENP foundry founded in 1997, corrosion resistance, wear resistance, impact-resistant product development, and production. Moreover, a total of annual production is about 9,000 tons for various products. Besides. Our products include the standard parts: bowl liner, concave and mantle, jaw plate, shredder hammer, blow bar, impact plate, break plates, VSI parts, PLFC parts, Mill liner for top brands and non-standard crusher parts.
"Better Quality, Better Service!" is our business principle. Through tens years cooperation with our customers from domestic and abroad. We get good reputation from our customers through our quality castings, and get progress with our customers together in the area of USA, Canada, UK, Australia, Russia, Finland, Poland, Ukraine, Italy, Saudi Arabia, UAE, Oman, Africa, Indonesia, Sri Lanka, India, Malaysia, Mexico, Colombia, Honduras, Peru, Chile, and so on.
You warmly welcome to visit our foundry at your convenience!
