Professional High Quality Comparison Microscope CHP-100

Product Description

Professional High Quality Binoculars Biological Microscope CHP-100
1. Introduction and Beginning of a New Era in Observation Key Features and Benefits
Unlock the true power of enhanced observation with our cutting-edge comparison microscope. This sophisticated device not only magnifies objects with precision but also allows seamless comparison of images through its dual-view optical system. Effortlessly observe and analyze in cutting, joining, or overlapping view fields, making it indispensable for distinguishing minute differences in similar objects.
Introducing the Model CHP-100 Comparison Microscope, the epitome of our extensive expertise and groundbreaking innovations. This next-generation instrument excels with its adjustable separation line width, elevating its quality to meet and exceed international standards.
Ideal for law enforcement agencies, courts, and educational institutions, this model excels in identifying fingerprints, shot marks, tool traces, seals, and writings. Its versatility extends to banks, archaeological studies, electronics research, biological sciences, and agriculture, making it a valuable tool for a broad range of professional applications.
2.Comprehensive Standard Configuration:

Eyepiece Mag./Viewfield	10X Magnification	20X Magnification	Photographic -capabilities	Videographic -capabilities	Extended Working Distance
Precision Objective
0.8X Magnification	8X/φ28mm	16X/φ15mm	1.92X Magnification ~12X Magnification	Actual Measured Value	102mm
1.2X Magnification	12X/φ18mm	24X/φ10mm
2X Magnification	20X/φ11mm	40X/φ6mm
3X Magnification	30X/φ7mm	60X/φ4mm
4.8X Magnification	48X/φ4.6mm	96X/φ2.5mm
0.4X (attached objective) and 0.8X objective,10X eyepiece combination, yielding a comprehensive amplification power of 3.2X, with an ocular imaging view field φ60mm.

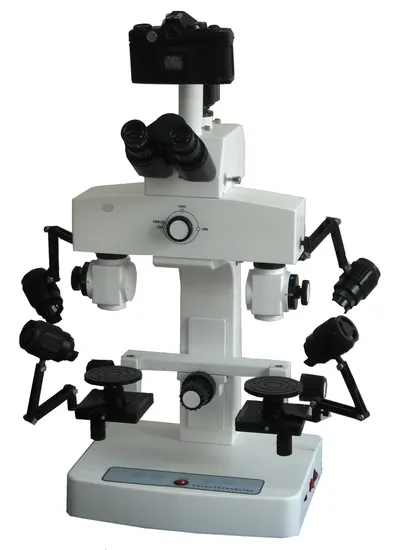

3. Product Imagery
Exquisite Product Packaging
4. Assembly and Preliminary Observation Begin by loosening the clamping screw, gently removing the dust cover. Securely attach the binocular head in place, fastening it with the original clamping screw for a firm hold. Carefully remove the two protective dust covers from the binocular tubes and insert the necessary eyepieces into each tube to prepare your microscope for optimal observation. Connect the power line by inserting one end into the base socket and the other end into a 110V-220V grounded power outlet, ensuring a safe and stable power supply for the microscope. With the initial setup complete, you are now ready to proceed with a preliminary observation using the comparison microscope. Position two pieces of paper on the table plates. Activate the instrument by pressing the main switch, and use the drive knob to adjust the view through both eyepieces. Fine-tune using the left or right lifting knob until you achieve the sharpest image possible.
To achieve superior observation results, it is essential to understand the full range of functions and capabilities of this sophisticated instrument.
5. Maintenance Ensure the instrument is stored in a shaded, cool, and dry area, free from dust, acids, alkalis, and vapors. Once operations are concluded, promptly cover the instrument with its dust cover. Maintain cleanliness by using an air blower to remove dust from optical surfaces or clean with a soft hairbrush. For smudges, gently wipe with lens tissue lightly moistened with xylene. Do not attempt to disassemble the instrument. Any necessary inspections or repairs should be handled by our factory or another specialized service provider to ensure the instrument remains in optimal condition.
