Standing Seam Sheet Metal Roofing Making Machine

Product Description

The Standing Seam Roofing Machine is a versatile and advanced roll forming system designed to produce various panel types. It optimizes space utilization, fitting into a 6-meter container to reduce on-site space requirements and transportation costs. Equipped with PLC industrial computer control, it supports fully automated production, minimizing labor requirements. The machine can create multiple standing seam metal roofing profiles, including snap lock and mechanical lock designs, offering exceptional flexibility and efficiency.
We offer a complete range of machines for roofing panel. Simply provide the profile, thickness, or any specific requirements you have, and we will provide you with customized solutions.
Profile Drawing and Sample Picture:
Profiles can be designed according to customers requirements

Customer's Project
Standing seam roof systems are highly durable and virtually leak-proof, reducing maintenance and repair costs over time. They can be installed over open framing or solid substrates such as wood decking, rigid board insulation, or metal decking. Options include Snap-Lock Profiles or Mechanically Seamed designs, using an electrical seaming machine to ensure a weather-tight connection. These systems minimize fastener penetrations, a common cause of roof leaks, and are available in a variety of panel profiles, gauges, widths, and finishes. Weather-tightness warranties can be provided for projects that meet specific criteria approved by the panel manufacturer.

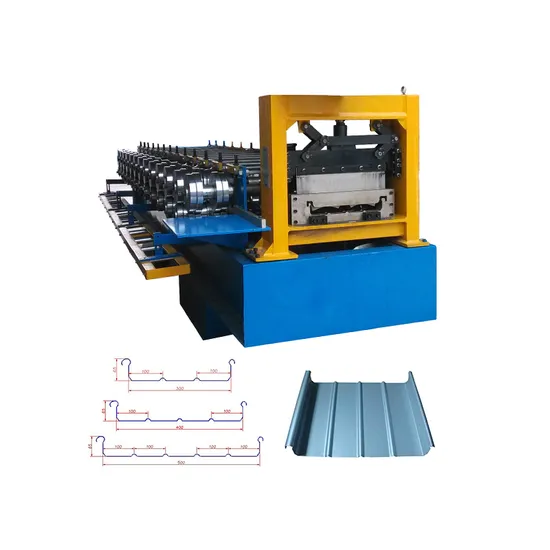

Machine Picture

Roller	Computer Control Cabinet	Hydraulic Cutter
high grade 45# forged steel,Plated Hard chrome and polished	PLC Frequency Control System with touch screen	Cr12 mold steel with quenched treatment 60-62°C

Technical Parameters

Type	YX65-400	YX65-430
Material Width	575-578mm	600-603mm
Height of Roofing	65mm	65mm
Effective Width	400mm	430mm
Thickness for steel	Q235-Q345(steel):0.5-0.8mm
Thickness for aluminum	(Al-Mg-Mn):0.7-1.0mm/0.9-1.2mm
Forming steps	13Steps
Dimension	5800*1600*1400mm
Motor Power	5.5KW*2 sets
Hydraulic Power	2.2KW
Forming Speed	8-14m/min
Weight	7000KGS
Material for producing roofing	Aluminum Sheet, PPGI Steel and GI Steel

Machine Components & Specifications

No.	Items	Quantity
1	Main Forming Machine for Straight and Tapered Roofing	1
2	5 Tons Manual Uncoiler	1
3	Hydraulic System	1
4	PLC Computer Controlling System With Touch Screen	1
5	Hydraulic Forming Cutter	3
6	Device for making tapered standing seam roofing	1
7	Auto Seamer	1
8	Hand Seamer	2
9	Run out tables	3
10	Operation Manual	1

Service
1. Factory Lifetime Service:offer technical support for the entire life of our machines.
2. Customized Profile:can design the profile according to customer request.
3. One-Year Guarantee Period:we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.
Shipping
For different machines or production line parts, we have different packing solutions:
- For the machine or production line, we will use plastic film to cover and wrap. Then will be loaded to the container by forklift or crane.
- For the key parts such as the roll forming rollers set, we will use the metal frame to package.
All Steadily fastened in the container in a suitable manner with steel ropes and locks, being suitable for long-distance transportation.
