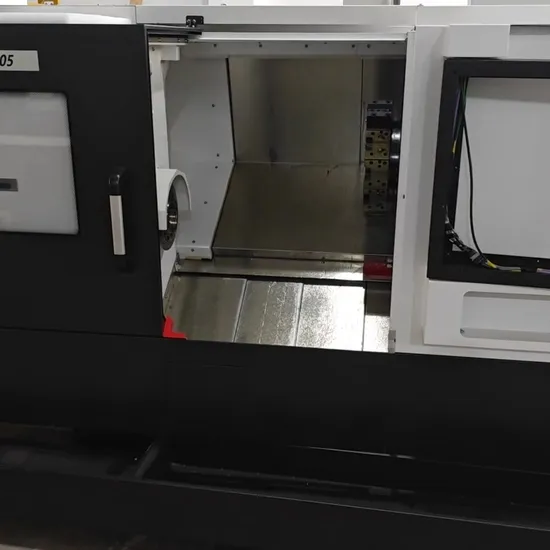

HD3105-04 Dynamic CNC Milling Machine, Lathe, Machining Center for Versatile Applications

Product Description

Product Description
·One-bed,30° inclined bed, which vastly enhances machining stability.
·All axes utilize hard rails, ensuring the production of superior-quality products.
·Achieves robust rapid traverse speeds up to (X/Z): 265/730 m/min.
·Optimally structured lineup to fulfill customer needs, featuring extended beds, turret punch presses, and servo axes.
·Streamlined design with a built-in motor to minimize machine length (standard bed style).
·Ergonomic design for convenient operation and maintenance.
Product Parameters

basic specification		Unit	HD3105
Maximum Swing Diameter		mm	φ740
Maximum swivelling diameter of the bed saddle		mm	φ656
Maximum cutting diameter		mm	φ500
Maximum cutting length		mm	708
spindle
Spindle motor power (continuous/30 min)		kw	15/18.5
Maximum spindle speed		rpm	2800
Spindle nose			A2-8
Spindle through-hole diameter		mm	φ91
Bar capacity		mm	φ74
Collet size		inch	12"
feed axis
Maximum stroke X/Z		mm	265/730
X/Z axis motor power		kw	syntec:3.9 fanuc:3
Fast shift speed X/Z		m/min	24/30
X/Z slide type			Box
C-axis (optional )
Minimum spindle positioning accuracy
Dynamic accuracy
turret
Turret Capacity			12
Quadratic cutter		mm	25
Round cutter		mm	φ50
Power Turret Motor Power		kw
Power Turret Tool Specifications
Power tool speed		rpm
tailstock
Mandrel Diameter		mm	φ100
Mandrel Stroke		mm	120
Tailstock body stroke		mm	730
Taper hole taper			MT#5
Programmable Control Mandrel/Tailstock Body			yes/no
Tailstock body movement method			saddle-driven [Programmed
Mechanical specifications
Positioning accuracy (X/Z)		mm	±0.007
Repeat Positioning Accuracy(X/Z)		mm	±0.003
CNC system			syntec or fanuc
chip conveyor			sidebar
Exterior(L×W×H)		mm	3284x1817x1755
Machine weight		kg	5800

Detailed Photos
One-piece bed
Optimized structural analysis
Optimized structural analysis of the main unit reduces the machine's height while maintaining the bed's dynamic rigidity during heavy machining. Even under substantial cutting forces, the bed's dynamic rigidity remains intact. The HD-3105 features a 30° inclined bed, significantly boosting machining stability.
Integrated Cutting Fluid Tank
The front-mounted cutting fluid tank enhances usability, and the right side of the machine can be cleaned of ferrous chips effortlessly.
Hard Rail
Hard rails on all axes offer superb vibration absorption during heavy cutting, ensuring the production of high-quality products. Specifically, the Z-axis is designed with an extended shaft, excelling in machining products with long shaft lengths.
Sealed GIB construction
The X-axis guideway mounting surface is protected by a sealed GIB structure to minimize cutting-induced damage, thus improving longevity and performance.
6-sided constrained design enhances mobility
Travel X/Y: 265/730 mm ·Spindle box
The symmetrical box design and heat dissipation plate structure minimize thermal deformation. The shaft features tapered roller bearings and angular contact ball bearings for stronger cutting capability. The 3V belt, being the shortest, reduces vibration and enhances longevity.
Spindle specifications: A2-8 (chuck 12")
Spindle speed: 2,800 rpm
Motor power: 18.5/15KW
Suzhou Wugan Intelligent Equipment Co., Ltd. specializes in manufacturing high-performance CNC lathes and CNC turning centers, designed with cutting-edge international lathe technology. Combining high rigidity, precision, productivity, and elegant design, we deliver efficient and reliable cutting performance. To meet elevated customer demands, we also offer a high-performance mill-turn combined model that consolidates turning, milling, and drilling capabilities, enhancing product output and accommodating diverse processing needs effortlessly.
