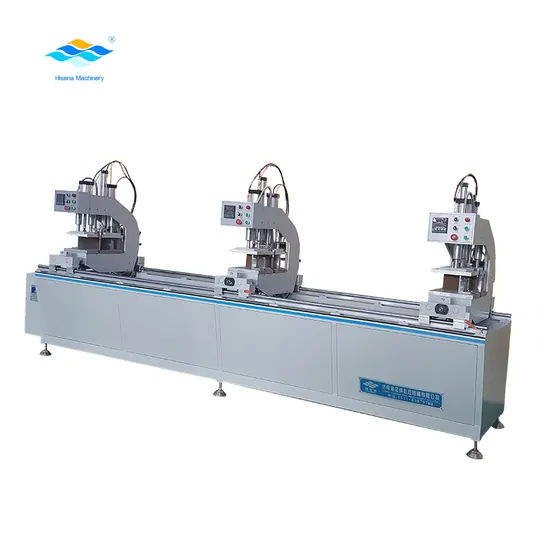

Efficient UPVC Window & Door Frame Three Head Seam Welding Machine
Basic Info.
Model NO.
SHB3
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
220V
Applicable Industries
Building Material Shops, Manufacturing Plant, Reta
Marketing Type
Ordinary Product
Core Components
Pressure Vessel, Bearing, Motor, PLC
Weight
1200 Kg
Applicable Material
PVC, UPVC
Key Selling Points
Easy to Operate
Welding Length
400-3500mm
Welding Height
20-120mm
Welding Width
Max120mm
Welding Mullion Width
110mm
Air Consumption
200L/Min
Specification
4600*1100*1700
Trademark
Hisena
Origin
China
Production Capacity
50sets/Month
Product Description
Products DescriptionUpvc Windows Machine Three Head Welding Machine Features:
1 Suitable for welding white upvc profile.
2 Adopt programmable controller ensure higher welding strength
3 Double pressing function ensures higher welding strength
4 Professional mold configuration can be designed according to the different profiles so that ensure the corners welding and
cleaning in good conditions
5 Front and back clamp pressure regulating device,realize the clamp pressure independent adjustment which can improve the
smoothness of the welding angle
6 The heads can be used individually,communicatively or jiontly as well as be combined at will.
Main Technique Parameter:
| Input power | 220v/50HZ |
| Total power | 3.5kw |
| Working air pressure | 0.5-0.8mpa |
| Air consumption | 200l/min |
| Height of welded profile | 20-150m |
| Width of welded profile | 0-120mm |
| Welding range | 400-3500mm |
| Dimension | 4600*1100*1700mm |
| Weight | 1200kg |
| Welding mullion width | ≤110mm |
| Welding Temperature | 260 ºC |
