HC-D006 Top Quality High frequency 50KW/32KW Medical Diagnostic HF X Ray Machine price

Product Description

Product Description
HC-D006 Top Quality High frequency 50KW/32KW Medical Diagnostic HF X Ray Machine price
Trade assurance
Product Description
Overall features:
Product Configuration:

1	X-ray tube
2	Collimator
3	Radiographic table
4	High voltage generator
5	Micro console
6	High voltage cable
7	Double Grid
8	Vertical bucky stand

Packing Size

PRODUCT	SIZE	GW
Frame+Table	2.25×1.22m×0.88m	550KG
Generator	0.83 m×0.51 m×0.86m	140KG
Total	Two Carton	690KG

1. Main Technical Parameters
(1)Function: Radiography
(2)X-ray machine maximum output power:
Intermittent mode 100kV ,500mA,50kW
(3)Range of x-ray tube current:16mA~630mA
Range of x-ray tube voltage:40kV~125kV
(4)Exposure time: 0.0025s~6.3s
(5)Nominal working frequency≥30kHz
(6)Power supply: Three-phase five wires 380V±38V
2. Main configuration
(1)High frequency high voltage generator
(including control console)
(2)X-ray tube
Focus :small focus:1.0mm large focus:2.0mm
Anode speed: 2800r/min
Anode thermal capacity: 140KHU
(3)Collimator power supply: ac 24V
(4)Radiography bed
a. Single phase 220V±22V,50Hz±1Hz
b. X-ray components supporting frame
Braking mode: Electromagnetic brake, braking force ≥98 N, button operation
Filter: N40.r10.f0=180cm, stationary type,
size: 5″×7″ 8″×10″ 10″×12″ 11″×14″ 14″×17″
C.Size: L2000mm×W760mm×H685mm
Vertical moving range: ≥825mm
Horizontal moving range: ≥250mm

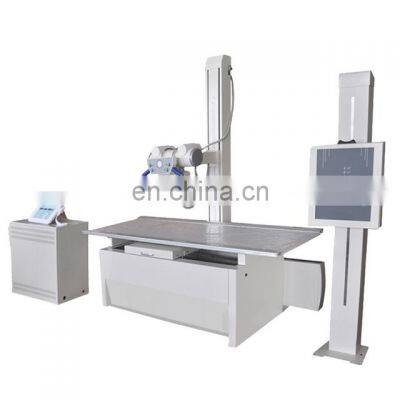

Pictures for HC-D006 50KW/32KW Medical Diagnostic HF X Ray Machine price:
Packaging & Shipping
Company Information
Clients and Projects
Our Services
FAQ
1. How to place order of HC-D006 50KW/32KW Medical Diagnostic HF X Ray Machine price ?A: Firstly we confirm product details and then send the Proforma Invoice,
You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram,
after we confirm your payment then ship the product to you once finished production.
2. For HC-D006 50KW/32KW Medical Diagnostic HF X Ray Machine price product,What’s the minimum order quantity (MOQ)?
A: For disposable material,We have our own MOQ,For our HC-D006 50KW/32KW Medical Diagnostic HF X Ray Machine price , our MOQ:1pc,
3. What is your warranty?
A: For most products the warranty is for 12 months, some products we provide 18 months warranty.
For HC-D006 50KW/32KW Medical Diagnostic HF X Ray Machine price , we provide 12 months warranty.
4. What’s your delivery time?
A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity.
For HC-D006 50KW/32KW Medical Diagnostic HF X Ray Machine price , the delivery time is 10 working days.
5. How to ship the product?
A: The shipping way normally depand on your quantity,total CBM and weight.
We have our own shipping company to provide best shipping cost and efficient way.
