Aohong High Quality Sells Well Bridge Galvanized Metal Tunnel Steel Culvert Pipe Spiral Corrugated Culvert Tube Custom Diameter Flexible

Product Description

Drainage Culvert Long Lifespan Customizable Galvanized Corrugated Culvert Pipe
Product Description

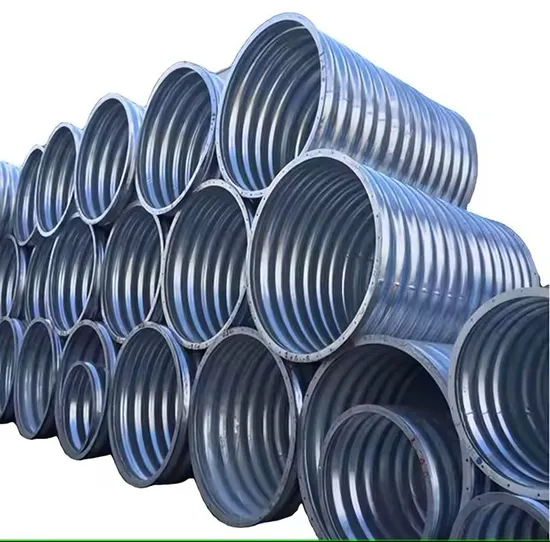

Galvanized Corrugated Steel Culvert Pipe
Galvanized corrugated steel culvert also called corrugated metal culvert pipe, refers to laying buried in the highway, or railway culvert under the screw corrugated pipe, it is made of corrugated metal plate roll or semicircle corrugated steel plate made of makings of circular corrugated pipe, widely used in highways, railways, bridges, tunnels, retaining walls, and a variety of mines and the retaining wall of roadway supporting the engineering of the culvert (tube).
Compared with reinforced concrete culverts, corrugated culvert has the advantages of thin pipe sections, lightweight, easy transportation and storage, simple construction technology, quick assembly, short construction period,d and so on.
When building a corrugated culvert, can be assembled into any length according to the need, when necessary, the pipe section can also be removed, and moved to another place to build, in the lack of sand and stone material area or low foundation-bearing capacity area, the superior of the corrugated culvert is more significant.Convenient construction: bellows culm is the use of a sleeve or flange connection, and can be customized according to the length, even if not skilled workers can also operate, construction with a small amount of manual operation, can be completed in a short time, fast and convenient.Product Parameters

GALVANIZED CORRUGATED STEEL CULVERT PIPE
Product Name	Galvanized Corrugated Steel Culvert Pipe
Keywords	Corrugated Galvanized Steel Culvert Pipe
Material Grade	Q195,Q235,Q345,SS400,A36,A53,10#,20#,35#,45#,20g,40cr,20gr,16mn-45mn
Length	12m, 6m, 6.4m or Customized
Thickness	2 - 10 mm Customizable
Spacing Wave	150, 200, 300, 400mm
Type	Welding, Punching, Cutting
Shape	Extruded, Culvert Pipe
Surface Treatment	Hot Dip Galvanized, Pre-galvanized
Tolerance	±5%
Diameter	500-14000mm or Customized
Standard	GB,ASTM,API,JIS
Application	Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, OIL PIPE, Chemical Fertilizer Pipe, Structure Pipe
Payment Terms	L/C ; T/T
The Table Parameters Are For Reference Only, Please Refer To The Actual Goods Received

High-strength Corrosion Resistance
The corrugated design increases the strength and load-bearing capacity of the pipeline, allowing it to withstand greater pressure and load, and is suitable for various engineering environments. it has good corrosion resistance and can be used for a long time in humid and corrosive environments.Lightweight
Compared with traditional steel pipes, corrugated steel pipes are lighter in weight, easier to transport and install, and reduce the requirements for supporting structures.Flexibility
Corrugated steel pipes have a certain degree of flexibility and can adapt to terrain changes, reducing the requirements for foundations, and being suitable for complex terrain and geological conditions.Inspection Test & Thickness Test
Raw material sampling inspection, tensile strength test.
Compressing waves, curve shape, and slotting are all strictly accorded with standardLong Service Life
The steel corrugated pipe culvert adopts hot-dip galvanized steel pipe, with a service life of 80-100 years. when used in a particularly corrosive environment, the steel corrugated pipe with asphalt coating on the inner and outer surfaces can be used to extend the original service life by more than 20 years.Detailed Photos
FAQ
Q1: Where is your factory?
A1: Our factories are mostly located in Hebei, china.
Q2: What's your MOQ?
A2: Commonly our MOQ is one container, but different for some goods, pls contact us for details.
Q3: What is your sample policy?
A3: We can supply the sample if we have ready parts in stock, but the customers must pay the courier cost. all the sample costs will be refunded after you place the order.
Q4: Do you test all your goods before delivery?
A4: Yes, we would like the goods to be tested before delivery.
Q5: All costs will be clear?
A5: Our quotations are straightforward to understand. it won't cause any extra co
