Conveyor Belt Woven Dryer Mesh Fabric Filter Cloth

Product Description

Product Description

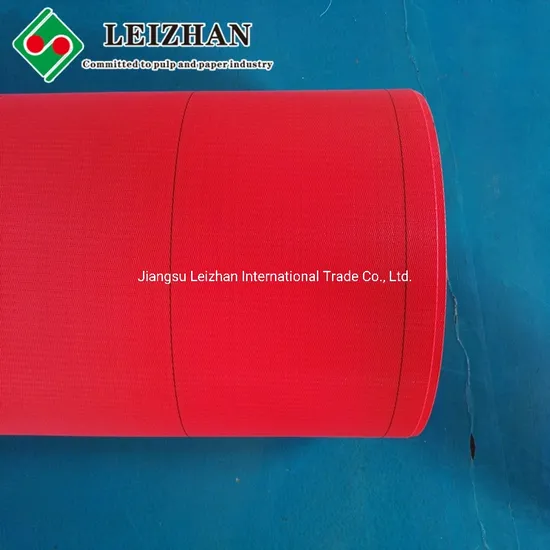

Flat yarn dryer screen's description:
According to the category, polyester dryer fabrics can be divided into one and a half layer dryer fabric, double layer dryer fabric, flat wire dryer fabric, flat double warp wire dryer fabric and special material dryer fabric.
3-shed, 4-shed one layer and a half are suitable for drying cultural paper, printing paper and packing paper etc.
Flat wire and flat double warp wire dryer fabric is suitable for the fore several heating box of the drying zone, quality papers can use the both.
Special material dryer fabric have the characteristics of high temperature resistance, abrasion resistance and aging resistance etc.
Mainly used in paper mills paper drying. drying of textile printing and dyeing productso applies to the following speed m600/ s.For horizontal belt vacuum washer (to replace the rubber band).Features: breathable, easy to repair, smooth surface, long life.

Product Parameters
Features:1) Acid resistance, alkali resistance, wear resistance, high temperature resistance, long service life, which is several times of the woven dry blanket, canvas and ordinary dry net.2) Flat mesh surface, high tensile strength, good permeability and high heat transfer efficiency.3) Easy to install and use, no imprinting on the interface, and no deformation during use. Application:
Cultural papers ,Coated white paper ,White cardboard Kraft Cardboard paper,Corrugated base paper

Polyester Dryer Fabric
Weaving Kind	Fabric Model	Wire Diameter mm		Density(root/cm)		Tensile strength(N/cm)			Air Permeability		Weight Kg/m2	Thickness mm
		Warp	Weft	Warp	Weft	Surface	Joint	Socket Screw-ring interface	M3/m2h	CFM
Flat wire dryer fabric	4106-2	0.35x0.68	0.50	19.6	15.7	2200	1500	900	5500	345	1.10	1.62
	15505	0.25x0.40	0.50	17	13.5	2000	1500	900	6500	406	0.75	0.83
	20654	0.33x0.52	0.65	22	7.5	2000	1400	800	10000	625	1.02	1.35
	18688	0.30x0.58	0.35	20	18.5	2000	1400	800	1600	100	1.2	1.40
			0.68
	16904	0.29x1.06	0.90	15.2	8.6	2600	1800	1500	1920	120	1.33	1.54

Joint Type Detailed Photos
Working Principle
FAQ
1. Q: Can i have a sample order for round yarn dryer screen?
A: Yes, we can provide free sample together with our catalogue for customer to test and check quality.
But the freight charge will on your side. We'll refund the freight charge when you make an order.
2.Q: How to proceed an inquiry for dryer screen ?
A: You need to provide
1)speed of paper making machine
2)kind of paper
3)GSM of paper
You can also indicate if you have any special requirement. We'll recommend most suitable type for you and provide a formal quotation list after your inquiry received.
3. Q: When will delivery the goods?
A: Usally, we will deliver the goods within 10 working days. And if the quantity is big, it will take about 15 working days.
About Us
We are a China industrial felt and fabric manufacturer located at Jiangsu province,Xuzhou city. We committed to offer best quality products,most favourable price,free consultation and complete solution related to paper-making industry,filter press,transportation and pavement construction industry. For years,we have insisted on taking customer's requirements as our center and having strict quality-control and innovation in the whole process.
With advantage technology and excellent produce equipment,we provide one-stop service from consultation,process design and optimization , manufacture ,installation , commissioning and personnel training and so on.At the meantime,we can custom design according to customers' requirements. Now, in addition to providing high-quality products and basic services, we pay more attention to providing customers with technical support and a complete set of solutions. Through our professional analysis, we can reduce customers' costs, enhance their competitiveness, and provide customers with one-stop industrial fabric solutions.
In the future, we will always be willing to provide customers all over the world with high-quality products and the best service to make them more successful.
We are appreciated for the long-term trust and favor from our customers.Hope we can cooperate sincerely and make progress together with our new and old customer.
Leizhan corporate spirit : "Unity, innovation, pragmatism, and truth-seeking".
Since the establishment of Leizhan, we have insisted on taking customer needs as our core, thinking about what customers think, worrying about what customers need, and striving to achieve customer satisfaction. We insist on growing and succeeding together with customers, and have established long-term stable and successful cooperative relations with customers in 35 countries.
We are united. In today's globalization, we unite with our customers, develop together, and make customers more successful.
