Hot Selling Carton Baling Machinery Hydraulic Recycling Baler Machine

Product Description

Hot Selling Carton Baling Machinery Hydraulic Recycling Baler Machine
Product Description

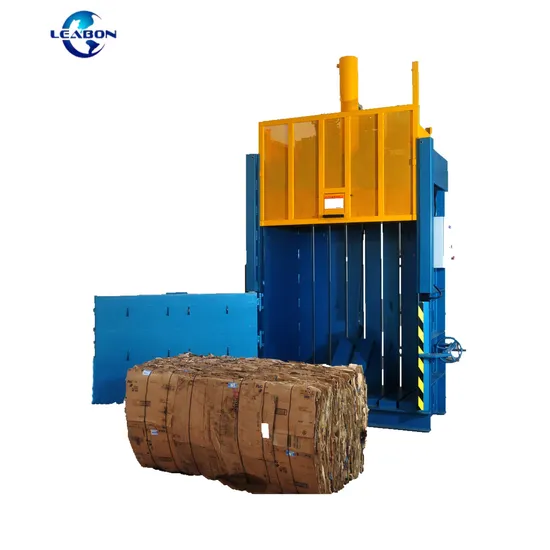

Vertical Fiber Baler Machine is most popular down stroke balers, is vertical baling machines which are put to great use in the disposal of cardboard/carton, ideal for waste recycling facilities, cardboard/paper manufacturing units, supermarkets, department stores, grocery stores, printing facilities, and others that generate massive waste cardboard/paper.
Features
* Auto Chain Bale Ejector For automatically ejecting bales out of the chamber through the lifting force of the chain.
* Auto Lifting Feeding Door Can be automatically lifted up when the platen moves upwards, which cuts the labor cost for door opening and promotes work efficiency View image.
* Wide Feed Opening Makes it easier and more efficient to feed big-size waste sheets View image.
Product Parameters

Model	LB30LT	LB50LT	LB60LT	LB80LT
Hydraulic power	30Ton	50Ton	60Ton	80Ton
Packaging size(L*W*H)	600*400*400-600 mm	760*520*400-800 mm	1000*700*400-800 mm	1100*800*400-900 mm
Feed opening size(L*H)	600*460mm	760*460mm	1000*460m m	1100*460mm
Chamber Size (L*W*H)	600*400*1200 mm	760*520*1250 mm	1000*700*1250 mm	1100*800*1250 mm
Bale weight	40-60Kg	80-120Kg	150-200Kg	200-300Kg
Voltage(can be customized)	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Power	5.5KW/7.5HP	7.5KW/10HP	11KW/15HP	15KW/20HP
Machine size(L*W*H)	1300*760*3780mm	1500*880*3780mm	1700*1000*3780mm	1850*1200*3800mm
Weight	1700Kg	2100Kg	2600Kg	3000Kg

Structure of Vertical Hydraulic Baler
1.Electric Controlled: For easy operation, simply by operating on buttons and switches to fulfill platen moving and bale ejecting
2.Hydraulic Lifting Chamber Door: For automatically lifting up to let the bales come out, which promotes operation efficiency and increase output
3.Automatic Feeding Conveyor is Optional: For continuous feeding material, and with the help of sensors and conveyor will automatically start or stop when the material below or certain position on hopper. This Enhances feeding speed and maximize throughput
4. Horizontal Cutter on Feeding Mouth: For cutting off the excessive material to prevent it from being stuck feeding mouth
5.Automatic Bale Ejecting System: Enables labor-free bale ejecting
6.Close-end Design: Ensures dense bales especially for hollow products
7.Bale Guide Island: Allows bale to be easily removed with forklift
8.PLC Control System: Automates the Operation and promotes accuracy
Application Range
1)Paper/cardboard recycling facilities;
2)Carton manufacturers;
3)Printing facilities;
4)Textile waste recycling installations;
5)Distribution centers;
6)Pet bottle recycling plants.
Horizontal Hydraulic Baler
Packaging & Shipping
Normally, we adopt wooden case or container.If export to European countries,the wooden box will be fumigated.If container is too small,we will use PE film for packing or pack it according to customers special request. Our transport operators & delivery facilities are ready on time and when the contains arrive at the factory , they are guaranteed to ship according to the scales
Company Profile
1.We can provide you the one year warranty but without the spare parts.
2.The professional and timely 24 hours after-sale service.
3.The relative video of the machine installation and instruction will be provided for you.
4.We can provide you the different mould to meet your different requirements.
5.We can also meet the special voltage demand.
6.The engineer is available to service machinery oversea.
