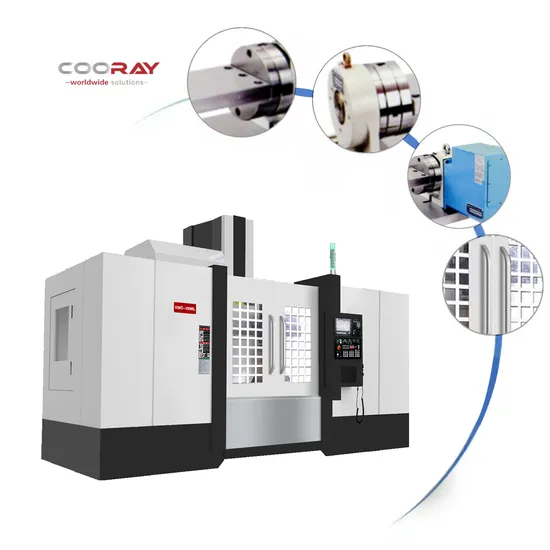

Cooray Cr-Vmc Two-Axis Line Rail Machining Center Vertical Machining Center
| US$50,000.00-90,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TWO-AXIS LINE RAIL MACHINING CENTER
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Condition
New
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Core Components
Bearing, Motor
Brand Name
Cooray
Transport Package
The Two Sides Negotiate Logistics.
Specification
4400*3500*3500
Trademark
COORAY
Origin
China
HS Code
84609090
Production Capacity
5000
Packaging & Delivery
Package Size
440.00cm * 350.00cm * 350.00cm
Package Gross Weight
15500.000kg
Product Description
Product Description| Machine data/model | Unit | VMC-850LVMC-1060L | VMC-1270L | VMC-1370L | VMC-1580L | VMC-1690L | VMC-1890L | ||
| X/Y/Z axistravel | mm | 800/500/500 | 1000/600/600 | 1200/700/600 | 1300/700/650 | 1500/800/700 | 1600/900/700 | 1800/900/700 | |
| Travel | Distancefom spindle nose to table surface | mm | 110-610 | 70-670 | 87-687 | 150-800 | 130-830 | 112-712 | 160-760 |
| Dstance fromspindlecentertoclumnguidesurface | mm | 560 | 655 | 785 | 757 | 810 | 950 | 950 | |
Workbench | Workbench size | mm | 1000×500 | 1300×600 | 1360×700 | 1500×700 | 1700×800 | 1800×900 | 2000×900 |
| Workbench load-bearing | kg | 500 | 1000 | 1200 | 1200 | 1500 | 1500 | 1600 | |
| T-slot(numberofslots-sizexspacing) | mm | 5-18×90 | 5-18×100 | 5-18×152.5 | 5-18×152.5 | 5-22×140 | 5-22×165 | 5-22×165 | |
Spindle | Spindle taper specifications | BT40 | BT40 | BT40/BT50 | BT50 | BT50 | BT50 | BT50 | |
| Spindle speed(Optional) | rpm | 8000/10000/12000 | 8000/10000 | 8000 | 6000 | 6000 | 6000 | ||
| Spindle motorpower | kw | 7.5 | 11 | 15 | 15 | 18.5 | 18.5 | 18.5 | |
Three-axis parameters | Three-axis motor power(X/Y/Z) | kw | 1.8/1.8/3.0 | 3.0/3.0/3.0 | 3.0/3.0/3.0 | 3.0/3.0/3.0 | 4.0/4.0/4.0 | 4.0/4.0/4.0 | 4.0/4.0/4.0 |
| X/Y/Z axis rapid moving speed | m/min | 24/24/18 | 24/24/18 | 24/24/18 | 24/24/18 | 20/20/15 | 20/20/15 | 20/20/15 | |
| Cutting feedspeed | mm/min | 0-10000 | 0-10000 | 0-10000 | 0-10000 | 0-10000 | 0-10000 | 0-10000 | |
Position | Position accuracy | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Repeated position accuracy | mm | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | ±0.003 | |
Magazine | Magazine capacity | Put | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| The maximumweight of cutter | kg | 7 | 7 | 18 | 18 | 18 | 18 | 18 | |
| The maximum length of cutter | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | |
| Cutter diameter(ful/interspace) | mm | 80/150 | 80/150 | 112/200 | 112/200 | 112/200 | 112/200 | 112/200 | |
| Magazine form | Disc type | ||||||||
Other | Pressuredemand | Kq/cm² | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 |
| Machine weight | Kg | 5500 | 7500 | 10500 | 11000 | 13500 | 13500 | 15500 | |
| Machine size(length x width ×height) | m | 2.7×2.5×2.8 | 3.3×2.8×2.9 | 3.5×3×3.2 | 3.5×3.1×3.3 | 3.9×3.3×3.5 | 4.1×3.5×3.5 | 4.4×3.5×3.5 | |
