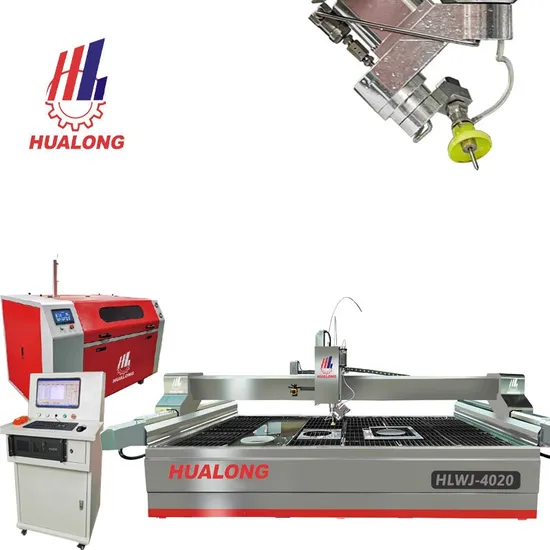

Hualong Machinery 3 Axis CNC Waterjet Steel Water Jet Cutting Machine

Product Description

5 Axis CNC WaterJet Cutting MachineWaterjet cutting enables you to get sleek, precise line cuts in a wide range of materials and thicknesses. At HUALONG, we offer 5-axis waterjet cutting equipments that give your projects the power of precision from custom waterjet cutting.
The HLWJ Series water jet cutting system is our newest water jet cutter for sale. This system is updated with automatic photograph and automatic CAD pattern generation technology, while maintaining a simple operationg interface. Beside the usual appliction in a variety of industry, it's a snap for it to make bathroom countertop and basin combination processing. The waterjet cutting efficiency and results are exceptional.Advanatages

* Automatic photograph* Automatic leveling * Automatic generate CAD pattern

* Automatic detect height* Automatic set tool length * Automatic cut

Main Features1) Processable any curve cutting, flexible, convenient and versatile.
2) Notch is fast and smooth, no dust, no thermal deformation and no pollution.
Tension-free processed parts due to minimal cutting force.3) Narrow kerf - The amount of material removed by the water jet stream is typically about 0.5-1.0 mm wide. Cut width optimizes material use, increasing cost effectiveness.
4) Cut Recovery - Pick back up where Jet stopped.
5) Programmable Z axis height. Z axis retracts between pierces.
6) Servo motor, linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement.
7) High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed.
8) Driver system sealed against water,dust and grit. Long working life.Application Fileds:* Stone/Ceramic industries such as used for countertops, art puzzles, flooring Inlays and mosaics.* Glass industry , such as bathroom glass, shop window glass, automotive glass and appliance glass.
* Metal industries such as Decoration, decoration in the stainless steel and other metal cutting process, equipment cover cutting,Cutting of metal parts.
* Gasket Cutting
* Foam Product Cutting.

TECHNICAL DATA
Model No.			HLWJ-2515P	HLRC-4020P
Working area		mm	2600*1600	4100*2100
X-axis stroke		mm	2500	4000
Y-axis stroke		mm	1500	2000
Z-axis stroke		mm	80-120	80-120
Max. angle of C axis rotation		°	+/- 360	0
Max. anglel of A axis swing		°	+/- 60	0
Cutting accuracy		mm	+/- 0.1	+/- 0.1
Repeatablbe accuracy		mm	+/- 0.05	+/- 0.05
Traverse speed		mm/min	6000/15000	6000/15000
Main motor power		kw	37	37
Dimensions (L x W x H)		cm	350x220x210	540x283x210

Accessories

Driving SystemAdopt imported core parts, durable and safe, pressurize water and continuously output water, so as to convert into supersonic water jet at cutting head. Maximum output pressure up to 4137bar(60000psi)400MPa, Sustainable cutting pressure up to 380MPa.

Auto Abrasive Delivery SystemTransfers the abrasive to the abrasive regulator.Air valve to prevent jams and breakages Auto control with CNC auxiliary function Self sealing Slightly adjust the flow.

Oil Cooled ChillerA less mantained, more stable and better working chiller.It cool and guarantee the hydraulic system can be used in a stable circular manner at 42-45°C,while at 55-57°C if by water chiller.

Movable Operator StationThe station comes equipped with NcStudio V10 Waterjet cutting CNC system, 19" LCD, pump interface,keyboard and mouse.
Compatible G code, PLT, DXF file generated by CAD/CAM software of UG, Mastercam, Casmate, Art Cam, Autocad, CorelDraw etc.
Remote Control (optional)
For operating the movement of 5 axises conviniently.Water Jet SoftwareBrand: WeihongOriginal: China
A mature motion control solutions, to solve the high pressure water jet taper, towing and other technical problems, and realize perfect dynamic five-axis cutting,Easy to operate and to learn. "Seamless Basin" vision solutionBrand: WeihongWith a 20-megapixel camera, excellent vision algorithms and fitting algorithms, the vision acquisition contour scheme is embedded with a CNC system, which achieve a high degree of automation.After the image is taken by camera, the smooth cutting process with high precision can be carried out immediately. Laser SensorBrand: WeihongOriginal: China
Automatic scanning precision altimeter function, ensure the knife head distance workpiece surface constantLinear Guide* Linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement. * The linear slides and rails, helical rack and pinions in all systems are protected with automatic greasing pump in order to prevent rust and to continue sensibility.Servo MotorBrand: WeihongOrigin: China
Nr of revolutions: 0-1500 rpm
Directly coupled to precision ball srews.
Drive X axis moving accuracy and reposefully.Main MotorProduced by: ND
Original: China
Power: 37 kw
Efficiency: 93.9%
To generate motion energy throught electtical energy for high pressure pumpIntensifierTo produce high pressure water continuously.
Main parts come from Ashcroft, USA.Stable performance and operationElec-magnet ValveBrand: HytekOrigin: Taiwan, China
Indicate and change advantageFactory WorkshopQuality Fabrication Equipment* Made with 30 years+ expertise and patents.
* Many machines available to order
* Experienced techs for all your questions
* Customization available
Q: Are you manufacturer ?
A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service.
Q: Can I get a machine according to my own requirements?
A: Sure. Welcome OEM and ODM orders.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well.
Q: What's your MOQ and delivery?
A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.
Q: How is your after sales service?
A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance.
Q: If my machine is broken. Can you repair it for me?
A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.
