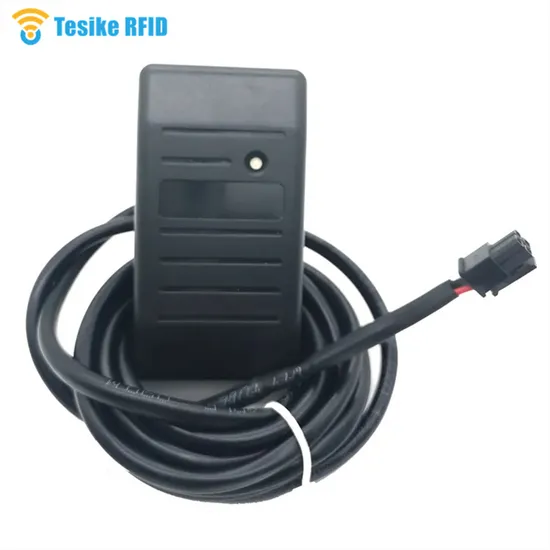

125kHz 13.56MHz RFID One Wire Reader for Tracking System
| US$13.00-65.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TSK-13.56Mhz rfid reader-HS34
Interface
USB, Serial Port
Reading Distance
5-10cm
Application
Parking, Hospital, Library, Company, Bank, Store
Name
13.56 RFID Reader ISO14443A for Door Access Contro
Frequency
13.56MHz
Support Chips
Ntag216/Icode II/F08/DESFire/Mi S50/S70/Ultralight
Sheathing Material
ABS
Power Supply
9V~12V/5V
Baud Rate
9600~115200(Configurable, Default 9600)
Protocol
ISO14443A/B, ISO15693 & ISO18092
Function
Read Only or Read & Write
Software
Supply Sdk&Demo for Free
Color
White
Read/Write
Read Uid Only/Read Write
Dimension
Optional
Mount Type
Wall-Mounted
Transport Package
DHL/Fed-Ex/UPS
Specification
100*100*27cm
Trademark
TESIKE
Origin
China
HS Code
8471900090
Production Capacity
500piece/Week
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
0.300kg
Product Description
125Khz 13.56Mhz RFID one wire reader for tracking system ODM/OEMFree Sample Test before you place an order to us !
Instruction:
TSK65X0/TSK85X0 is a LF/HF reader that connect to PC and related devices via wg26/34, RS232, RS485 interface with read only and
read write options.
Feature:
Supports card : 125Khz/3.56Mhz optional
Support wg26/34, RS232, RS485 communication
A buzzer and a LED indicator light
Parameter:
| Module NO. | TSK8560 |
| Standard | ISO/IEC 14443-A |
| Supporting Card | Mifare®S50/S70/ICODE SLI |
| Interface | wg26/34, RS232, RS485,one wire |
| Power Supply | External 9V(default), optional 5V, 9-30V |
| Read Distance | 0-8cm (Depending on label size and antenna technology) |
| Baud Rate | 9600-115200bit/s(Configurable , default 9600) |
| Operating Temperature | -10ºC-50ºC |
| Housing Material | ABS |
| Dimension | optional |
Packing information:
| Packing | ||
| Quantity | Dimension(cm) | Weight(kg) |
| 100pcs | 55*40*33cm | 7.5-10kg |
Model Description:
| TSK8560-W | WG26 |
| TSK8560-G | WG34 |
| TSK8560-S | RS232 |
| TSK8560-R | RS485 |
| TSK8560-T | TTL |
RFID 1 wire reader for GPS tracking system One wire reader for 125Khz
| Frequency | 125KHz |
| Support card | EM4200,TK4100 and compatible card |
| Interface | One wire/iButton |
| Read Distance | > 5cm(Card reading distance depends on card packaging and surroundings) |
| Indicator | A LED light,A buzzer |
| Power Supply | DC +9V ~ +12V(±5%) |
| Current | <60mA |
| Baud Rate | 9600 |
| Storage Temperature | -20ºC~70ºC |
| Operating Temperature | -10ºC~50ºC |
| Dimension | 80*43*13mm |
| Humidity | 0 ~ 95% |
One wire reader for 13.56Mhz
Instruction:
TSK8520-1W is TESIKE developed 13.56MHz wall-mounted card reader with one wire interface .
All 1-Wire devices, including iButton devices, contain an 8-byte unique registration number.
The computation begins with the MSB of the 64-bit, This 1-Wire Data consists of an 8-bit CRC,
a unique 48-bit serial number and an 8- bit family code.The family code is fixed 0x01.
| Frequency | 13.56MHz |
| Support card | ISO14443A mifare 1K and compatible card, |
| Interface | 1-Wire Bus |
| Read Distance | > 5cm(Card reading distance depends on card packaging and surroundings) |
| Indicator | A LED light,A buzzer |
| Power Supply | DC +9V ~ +12V(±5%) |
| Current | <60mA |
| Baud Rate | 9600 |
| Storage Temperature | -20ºC~70ºC |
| Operating Temperature | -10ºC~50ºC |
| Dimension | 80*43*13mm |
| Humidity | 0 ~ 95% |
Application:
Piles
Smart wine cabinet
printer/duplicator
Attendance machine
Advertising tablet PC
Medical Electronic Equipment
Identification card scanner
Smart game equipment
Hand-held intelligent terminal
POS consumption endpoint
