Product Description

I. Product overview

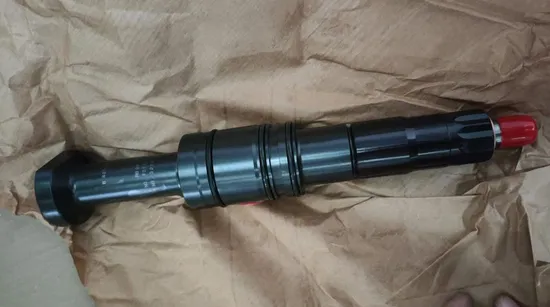

The product involved in this report is the pump nozzle of the model F00BL0J050, which works in pressure combustion mode, the fuel is diesel and the material is hardware. The following describes the parameters of GE injector and the performance test results of the injector.
2. GE F00BL0J050 Injector parameter information
(1) Weight parameters
1. Single net weight: 2.66kg
2. Single gross weight: 3.17kg
3. Gross weight of 6 pieces: 20.32kg
(2) Size parameters
1. Single size: 51.5×18×14cm
2. 6 pieces size: 57.8×53×31.2cm
3. Pump nozzle (Type: F00BL0J050) Performance test report
(1) Test basic information
1. Test date: 28.11.2024 15:50:25
2. Test unit: BOTEN
(2) Test conditions
1. Working mode: compression combustion
2. Fuel: diesel
(3) Test results
Test Name Pulse Width Speed Angle Oil quantity Measured value Standard oil quantity is qualified
Clean 1100.0 150.0 35.0 608.8 606±100 Yes
No load 1100.0 100.0 35.0 436.3 430±50 Yes
Load 1100.0 150.0 35.0 563.4 606±100 Yes
Max power 1100.0 300.0 35.0 966.8 995±75 Yes
(4) Test and analysis
1. Cleaning test
- In the cleaning test, when the pulse width is 1100.0, the speed is 150.0, and the Angle is 35.0, the measured oil quantity is 608.8. The standard oil volume range is 606±100, and the measured value is within this range, indicating that the oil injection volume of the pump nozzle under cleaning conditions meets the standard requirements.
2. No-load test
- When unloaded, the pulse width is also 1100.0, the speed is 100.0, the Angle is 35.0, and the measured oil quantity is 436.3. The standard oil volume range is 430±50, and the measured value meets the standard, indicating that the performance of the pump nozzle is stable in the no-load state.
3. Load test
- In load test, pulse width 1100.0, speed 150.0, Angle 35.0, oil quantity measured 563.4. The standard oil volume range is 606±100, and the measured value is within the range, indicating that the pump nozzle can work normally under load conditions.
4. Maximum power test
- When under the maximum power test conditions, pulse width 1100.0, speed 300.0, Angle 35.0, measured oil value 966.8. The standard oil quantity range is 995±75, and the measured value conforms to the standard, which indicates that the pump nozzle can ensure the accuracy of the oil injection quantity at the maximum power operation.
Iv. Summary
1. The weight and size parameters of the GE F00BL0J050 injector are clear, which can provide accurate data support for installation and transportation.
2. The performance test results of the injector F00BL0J050 under different working conditions (clean, no-load, load, maximum power) meet the corresponding standard oil volume range, and the performance is stable and reliable, which can meet the working requirements of compression comb
