CE ISO Certified 3 Ton Tailless Excavator with Cabin for Sale 3000kg Mini Digger Mini Excavadora Mini Excavator

Product Description

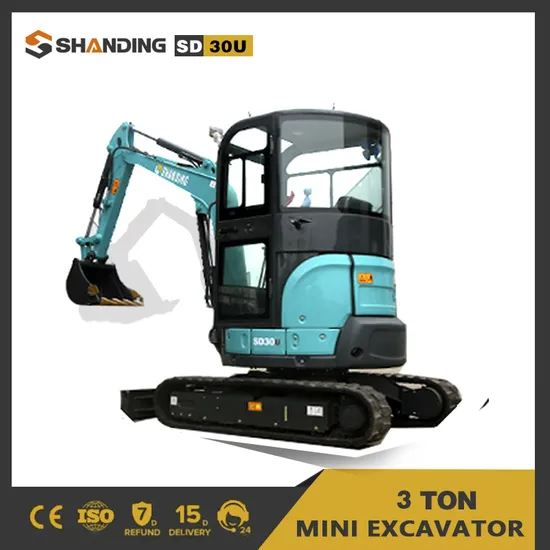

SD30U 3 TON CRAWLER EXCAVATOR Excavators are also called diggers, mechanical shovels, or 360-degree excavators (sometimes abbreviated simply to "360"). Tracked excavators are sometimes called "trackhoes" by analogy to the backhoe.Compact (mini) excavator delivers impressive performance in tight areas with minimal repositioning. Zero tail swing gives you better maneuverability on the most restricted jobsite. Choose an excavator with the ideal combination of horsepower, dig depth, arm configuration and tail swing style for your work. Add specialized attachments that do more than dig, and maximize productivity on every project you can take on, no matter how big or small.

SD30U parameters
Overall size
Overall Length	3800mm
Overall Width	1300mm
Overall Height	2450mm
Track Length	1880mm
Track Width	250mm
Minimum radius of Tail gyration	725mm
Min Ground Clearance	280mm
Platform Width	1290mm
Engine hood height	1350mm
Platform Height Above Ground	550mm
Transport Length	3750mm
Track center distance	1040mm
Bucket Width	500mm
Machine parameters
Weight	2700KG
Bucket Capacity	0.08m³
Rated Power	14.7KW
Rated Rotation Speed	2400r/min
Max Hydraulic Pressure	21.0[21.5] MPa
Max Grade	30°
Ground Pressure	24.6kpa
Max Walking Speed	4.6/2.8Km/h
Steering head angle	L:75/ R:50
Max. Traction	18.8(19.2)KN
Max Platform Rotation Speed	10rmp
Working range
Max. Digging Height	4000mm
Max. Dumping Height	2600mm
Max. Digging Depth	2280m
Max Digging Radius	4150mm
Maximum ground level digging distance	4000mm
Minimum radius of Tail gyration	725mm
Bulldozer Width	1290mm
Bulldozer Height	300mm
Machine configure
Model No.	SD30U
Engine Model	perkins 403-11
Main Pump	NAGHI Pump
Swing motor	eaton
Walking motor	LMT-03C
Drive Mode	Hydraulic Pilot
Valve	MNACHI

OPTIONAL ATTACHMENTS:
RELATED PRODUCTS:

MODEL NO	SD20U	SD25B	SD25U	SD30U WITH CABIN
OVERALL SIZE	3400mm*(1000/1320mm)*2280mm	4150mm*1350mm*2300mm	3950mm*1400mm*2300mm	4050*1450*2360MM
MACHINE WEIGHT	1980Kg	2280Kg	2420Kg	2870KG
ENGINE MODEL	Yanmar 3TNV74F	PERKINS 403J-11;Yanmar 3tnv76	PERKINS 403J-11;Yanmar 3tnv76	PERKINS 403J-11;Yanmar 3tnv76
RATED POWER	11.2KW	14.7KW/14.5kw	14.7KW/14.5kw	14.7KW/14.5kw
MAIN PUMP	TAIFENG-LOADING SENSATITIVE -PLUNGER PUMP	FUTAI	TAIFENG-LOADING SENSATITIVE -PLUNGER PUMP	TAIFENG-LOADING SENSATITIVE -PLUNGER PUMP
MAIN VALVE	HUSCO	HUSCO	TAIFENG	TAIFENG
WALKING MOTOR	LMT-03C DOUBLE SPEED MOTOR	EATON	LMT-03C DOUBLE SPEED MOTOR	LMT-03C DOUBLE SPEED MOTOR
ROTARY MOTOR	EATON	EATON	EATON	EATON
WALKING SPEED	2.5-3.5Km/h	2.7Km/h	2.5-3.5Km/h	2.5-3.5Km/h
MAX. DIGGING HEIGHT	3400mm	3750mm	4300mm	3865MM
MAX. DUMPING HEIGHT	2400mm	2250mm	2530mm	2760MM
MAX. DIGGING DEPTH	2050mm	2500mm	2550mm	2560MM
MAX. DIGGING RADIUS	3732mm	4250mm	4150mm	4375MM
BOOM SWING	WITH	OPTIONAL	WITH	WITH

FAQ
1.Can the factory support mass production? Can I purchase a customized sample first?
A:Dear friends,shanding company can support mass production. It can mass produce 200+mini excavator in one month, and can support customization (one piece is fine), but it cannot provide free prototypes. Please forgive me, my friend!
2.Can it be transported to my door? I want to get my favorite mini excavator soon?
A:Of course, my friend, but if your family is located very close to the port, we suggest that you can go directly to the port to transport your goods, so you can save a lot of money! If the distance is long, you can find an inland transportation company by yourself, and we can communicate with him; we can also find an agency for you, but the toll will be very high (not recommended)
During transportation, we will not charge any intermediate fees and additional service fees other than freight. We just want you to get your favorite mini excavator earlier.
3.How can I guarantee after-sales after I buy it?
A:Dear friends, our machine has a one-year/1000H work warranty period. During this time, if there is any problem with the machine itself, we will repair it for you free of charge, but if it is man-made damage, we will Not responsible for the maintenance of the machine, please forgive me, my friend.
If You Have Any Questions, Please Contact Us
