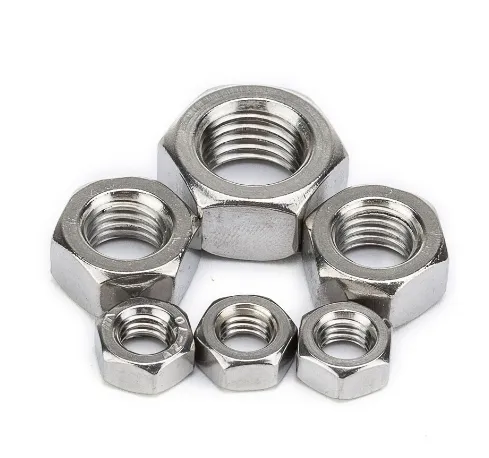

Fastener Factory Stainless Steel or Carbon Steel DIN934 Hexagon Nuts
| US$700.00-1,200.00 | 1 Ton (MOQ) |
Basic Info.
Model NO.
DIN934-7
Connection
Common Bolt
Head Style
Hexagonal
Standard
DIN, ANSI, GB, JIS, BSW
Grade
8.8
Transport Package
Cartons and Pallets
Specification
110*80*65
Trademark
LL
Origin
China
HS Code
7318160000
Production Capacity
200 Tons/Month
Packaging & Delivery
Package Size
400.00cm * 400.00cm * 500.00cm
Package Gross Weight
2.000kg
Product Description
DIN934 HEX nuts 1. Standard Code: DIN9342. Material: C1010 10B21 40CR
3. Grade: From Grade 4 to 12
4. Sizes: From M3 to M30
5. Surface: Black, Zinc, Darcromet, Phosphated and so on.
6.manufacturing processes :cold forging
Product Description
| Thread Size d | M1 | M1.2 | M1.4 | M1.6 | (M1.7) | M2 | (M2.3) | M2.5 | (M2.6) | M3 | (M3.5) | M4 | M5 | M6 | (M7) | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | (M33) | M36 | (M39) | M42 | (M45) | M48 | (M52) | M56 | (M60) | M64 | (M68) | M72 | (M76) | M80 | (M85) | M90 | M100 | M110 | M125 | M140 | M160 | ||
| P | thread distance | UNC | 0.25 | 0.25 | 0.3 | 0.35 | 0.35 | 0.4 | 0.45 | 0.45 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | 5.5 | 5.5 | 6 | 6 | / | / | / | / | / | / | / | / | / | / |
| UNF1 | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | 1 | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 1.5 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | / | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||
| UNF2 | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | 1.25 | 1.25 | / | / | 2 | 1.5 | 2 | / | / | / | / | / | / | / | / | / | / | / | / | / | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | / | / | ||
| m | max | 0.8 | 1 | 1.2 | 1.3 | 1.4 | 1.6 | 1.8 | 2 | 2 | 2.4 | 2.8 | 3.2 | 4 | 5 | 5.5 | 6.5 | 8 | 10 | 11 | 13 | 15 | 16 | 18 | 19 | 22 | 24 | 26 | 29 | 31 | 34 | 36 | 38 | 42 | 45 | 48 | 51 | 54 | 58 | 61 | 64 | 68 | 72 | 80 | 88 | 100 | 112 | 128 | |
| min | 0.55 | 0.75 | 0.95 | 1.05 | 1.15 | 1.35 | 1.55 | 1.75 | 1.75 | 2.15 | 2.55 | 2.9 | 3.7 | 4.7 | 5.2 | 6.14 | 7.64 | 9.64 | 10.3 | 12.3 | 14.3 | 14.9 | 16.9 | 17.7 | 20.7 | 22.7 | 24.7 | 27.4 | 29.4 | 32.4 | 34.4 | 36.4 | 40.4 | 43.4 | 46.4 | 49.1 | 52.1 | 56.1 | 59.1 | 62.1 | 66.1 | 70.1 | 78.1 | 85.8 | 97.8 | 109.8 | 125.5 | ||
| mw | min | 0.44 | 0.6 | 0.76 | 0.84 | 0.92 | 1.08 | 1.24 | 1.4 | 1.4 | 1.72 | 2.04 | 2.32 | 2.96 | 3.76 | 4.16 | 4.91 | 6.11 | 7.71 | 8.24 | 9.84 | 11.4 | 11.9 | 13.5 | 14.2 | 16.6 | 18.2 | 19.8 | 21.9 | 23.5 | 25.9 | 27.5 | 29.1 | 32.3 | 34.7 | 37.1 | 39.3 | 41.7 | 44.9 | 47.3 | 49.7 | 52.9 | 56.1 | 62.5 | 68.6 | 78.2 | 87.8 | 100 | |
| s | max | 2.5 | 3 | 3 | 3.2 | 3.5 | 4 | 4.5 | 5 | 5 | 5.5 | 6 | 7 | 8 | 10 | 11 | 13 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | 105 | 110 | 115 | 120 | 130 | 145 | 155 | 180 | 200 | 230 | |
| min | 2.4 | 2.9 | 2.9 | 3.02 | 3.38 | 3.82 | 4.32 | 4.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 10.7 | 12.7 | 16.7 | 18.7 | 21.7 | 23.7 | 26.2 | 29.2 | 31 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | 82.8 | 87.8 | 92.8 | 97.8 | 103 | 108 | 113 | 118 | 127.5 | 142.5 | 152.5 | 177.5 | 195.4 | 225.4 | ||
| e | min | 2.71 | 3.28 | 3.28 | 3.41 | 3.82 | 4.32 | 4.88 | 5.45 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.1 | 12.1 | 14.4 | 18.9 | 21.1 | 24.5 | 26.8 | 29.6 | 33 | 35 | 39.6 | 45.2 | 50.9 | 55.4 | 60.8 | 66.4 | 71.3 | 77 | 82.6 | 88.3 | 93.6 | 99.2 | 105 | 111 | 116 | 122 | 127 | 133 | 144.08 | 161.02 | 172.32 | 200.57 | 220.8 | 254.7 | |
| * | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 170 | 196 | 216 | 248 | ||
