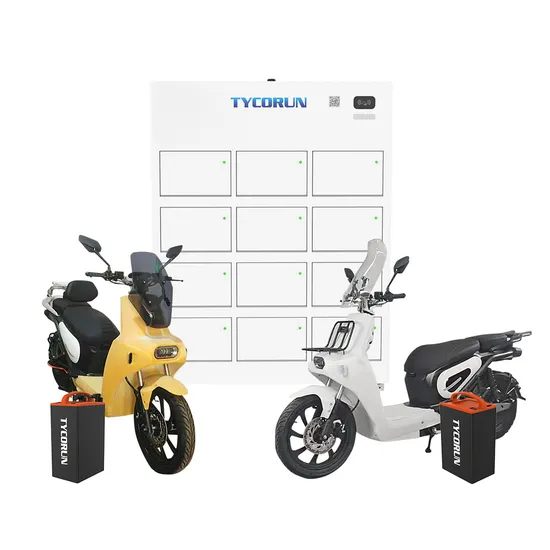

Tycorun Public Motorcycle Charging Station with Battery Swap Module

Product Description

Tycorun Public Motorcycle Charging Station with Battery Swap Module

Product name	Tycorun Public Motorcycle Charging Station with Battery Swap Module
Model	Swapping Charging Station
Battery Type	Ternary lithium battery
Rated voltage	48V 60V 72V
Rated capacity	50Ah@0.2C
Dimensions(LWH)	1355(W)*600(L)*1850(H)mm
Weight	350kg
Storage Temperature	0ºC~45ºC
Plastic Case	Metal
Cycle Life	>1000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 80% Capacity.

1, The battery can be controlled remotely, and the battery can be turned off according to the actual situation. 2, A positioning system can know the battery's internal voltage, current, temperature, and SOC.
3, It can realize the sale and purchase of battery rental and set the charge on a monthly and daily basis.
4, The power exchange cabinet replaces the battery pack, and the operation is simple. As long as the battery is inserted into the space of the power exchange cabinet, the internal identification battery automatically ejects the qualified battery and it can be used.
1, Meet the requirements for the use of electric vehicle battery packs. 2, Charge and discharge management adopts BMS management mode, with strict safety protection, SOC power calculation method, balance, battery fault diagnosis, data sampling, charging control, remote control, RS485 communication, and other functions. 3, The temperature and voltage sampling of the battery module is directly collected by the BMS

Project		Specifications
Typical capacity		34.8Ah (standard test)
Minimum capacity		34Ah (standard test)
Energy		About 2Kwh
Nominal voltage		60V
Shipping voltage		>59.2V
AC internal resistance		<180mΩ
Charge cut-off voltage		67.2V
Discharge cut-off voltage		44V
Standard charging method		Charge with constant current 0.5C (17A), charge to 67.2V constant voltage, cut-off current 0.01C (0.34A), ambient temperature 25ºC
Maximum charging current		≤15A
Standard discharge method		Discharge with constant current 1C (34A), discharge to discharge protection, ambient temperature 25 ºC
Maximum continuous discharge current		≤90A
Product Size		160*205*365mm
weight		About 13KG
cycle life		≥1000 times (standard charge and discharge mode), capacity ≥80%
Shell material		Aluminum profile: 3mm
connection plug		Anti-reverse plug connector
way of communication		RS485 2G module
range of working temperature		Charging: 0ºC--+45ºC(0.2C charge) Discharge: -10~60ºC(0.5C discharge)
storage temperature		-10ºC~+45ºC

Appearance requirements: A2-EV6034N-01, with anti-reverse insertion function, protection grade IP65, with voltage and power digital display. The appearance should be free of obvious dents, cracks, corrosion, and other defects, and the wiring should be intact. Power exchange cabinet installation 1.1 Specifications and dimensions. The size of the main cabinet is 2004mm*1550mm*1100mm, and the weight is about 350 kg. There are ground-fixing holes and supporting fixing angle steel sheets on both sides of the lower part. 1.2 Power consumption and electrical description. Each cabinet has 12 slots, equipped with 12 900W chargers, the maximum power consumption is 12KW, and the standby power consumption without charging is <=100W. The DV12 working power supply for the industrial control part, the DC24V working power supply for the lock control part, and the 220V working power supply for the charger support both 48V and 60V lithium battery charging. The system is equipped with an industrial computer, 21-inch touch display device, leakage switch, lock control device, automatic cooling system, automatic fire extinguisher, battery compartment locking device, communication module, power supply equipment and terminal wiring, etc. Support 4G module to expand the networking function. A special lithium battery protection module designed for lithium battery rental and replacement. In addition to the basic protection functions of lithium battery protection module, it also has a pre-discharge function, 485 communication (optional), GPS remote data transmission, GPS Power supply control and other functions. Solve the outstanding problems of midway power failure and hiccups caused by the interference of the communication module of the BMS. For more information, please click here to contact me.
