Variable Speed of Micro Lathe Machine Cj0618 Mini Bench Turning Machine
| US$400.00-500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CJ0618
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Table
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Spindle Bore
20mm
Swing Over Bed
180mm
Chuck Diameter
80mm
Transport Package
Wood Case
Specification
CE ISO9001 RoHS
Trademark
L&T
Origin
Tengzhou China
HS Code
8458190000
Production Capacity
200 PCS/Month
Product Description

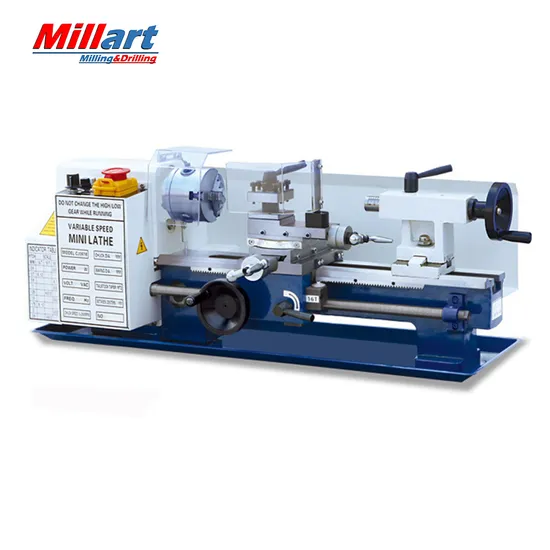

Variable Speed of Micro Lathe Machine CJ0618 Mini Bench Turning MachineFeatures:
1, This precision mini lathe is designed to perform various types of processing jobs. Counter face turning, drilling, threading, and cutting jobs on materials made up of round bar materials can be performed with this machine.
2, This machine can be used in areas such as mini precision pars processing, sample processing and modeling works.This machine is DC motor drived.
3, CJ0618 miniature lathe spindle speed 50-2500RPM continuously adjustable;
4, The feed speed can be adjusted according to the requirements of different workpieces.
Technical parameter:
| Model | CJ0618 |
| Distance between centers | 200/300/350mm |
| Swing over bed | 180mm |
| Swing over cross slide | 110mm |
| Spindle taper | MT3 |
| Tailstock taper | MT2 |
| Chuck diameter | 80mm |
| Spindle bore | 20mm |
| Cross slide travel | 65mm |
| Tool slide travel | 35mm |
| Range of metric threads | 0.5-2.5mm |
| Range of imperial threads | 12-52TPI |
| Spindle accuracy | 0.01mm |
| Spindle speed | 50-2500/100-2500RPM |
| Power of motor | 400W/550w |
| Voltage/Frequency | 230V/50Hz or 120V/60Hz |
| Net weight | 35Kg/38Kg/40Kg |
| Gross weight | 38Kg/42Kg/45Kg |
| Packing size | 660/760/810× 310× 320mm |
