ZICAR Woodworking machine row drilling new products MZ73212C
Basic Info.
Model NO.
MZ73212C
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max dril diameterr
Single hole 35mm
Max working depth
60mm
Vertical spindle head
0-1200mm
Number of spindle
21 spindle*2 row
Spindle speed
2800r/min
Install power
1.5kw*2
Air Pressure
0.6-0.8MPa
Overall size
2000*1200*1600mm
Transport Package
Plywood Case
Specification
2000*1200*1600mm
Trademark
Zicar
Origin
China
Production Capacity
500
Product Description

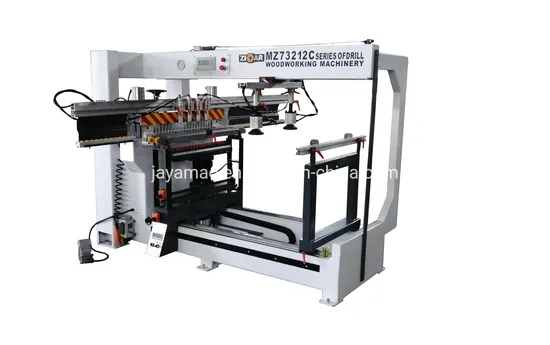

ZICAR High quality new design and new technology row drilling new products MZ73212C
Features:
1.Appllicable products: drilling of panel furniture such as solid wood board, fibreboard, particleboard, medium density board and other wood-based panels.
2.Achieve results: drilling range, drilling depth, distance positioning fast and accurate. Equipped with size digital calculator to improve work efficiency.
3.Structural advantages: the fuselage with double support, big beam desigh, enhance the stability of the machine. Body parts made of high steel, high temperature annealing treatment will never be deformed imported original brand of electrical components. Touch screen control system, equipment operation is simple, stable, powerful, low failure rate.
Specifications:
| Model | MZ73212C |
| Max dril diameter | Single hole 35mm |
| Max working depth | 60mm |
| Vertical spindle head | 0-1200mm |
| Number of spindle | 21 spindle*2 row |
| Spindle speed | 2800r/min |
| Install power | 1.5kw*2 |
| Air Pressure | 0.6-0.8Mpa |
| Overall size | 2000*1200*1600mm |
Detail Photos:
