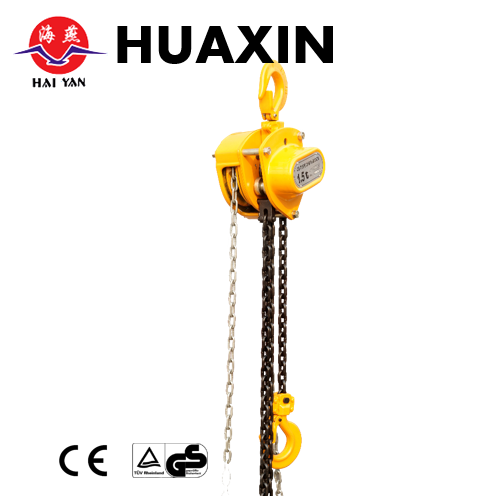

Supply CB Type Manual Chain Hoist Construction Equipment

Product Description

Product Description

As the second largest chain manufacturer, our other hoisting machineries have a huge cost advantage. For hoisting, moving, pulling, driving and conveying, our Huaxin lifting means, Huaxin hoist chains, Huaxin Chain block and Huaxin Electric hoist are a guarantee of quality, innovation and safety.

Advanced technology, excellent talents and high quality products make Baoding Jiazhong Hoisting Machinery Plant. the ideal choice for you.
1.Gear Case and Hand Wheel Cover Resistant to External Shocks:
Both sides of the hoist are covered with a thick steel gear case, processed with the highest level technology, and with a strengthened wheel cover. They have an ideal shape and rigidity to maintain bearing alignment and withstand external shock.
2.Double Enclosure to Keep Out Rainwater and Dust:
The braking mechanism, which makes up heart of the hoist, is enclosed in a double cover: the wheel and the brake covers. These protective covers not only keep out weather elements but also help to prevent mud and dust from entering internal mechanisms.
3.Double Pawl Spring Mechanism to Further Increase of Sureness:
In case one of Pawl spring is damaged, the other maintains its functions. This mechanism further increases sureness.
4.Sure and Reliable Mechanical Brake:
HUAXIN's dry type asbestos-free Mechanical Brake ensures strong brake performance.
5.Hooks for Easy Work:
Specially heat treated top and bottom hooks have enough strength and toughness for hard job. The design of the bottom hook, with relatively large dimensions, makes it easy to stabilize a load in proper position.
Bottom Yoke with Protecting Guard features a guard protecting the chain pin & nut from damage, enhancing safety.
6.Bearing Mechanism to Increase Mechanical Efficiency:
Use of unique ball and needle bearings remarkably increases mechanical efficiency and produces high output power with minimum manual input.
7.Load Chain Guide Mechanism:
Chain guide mechanism in flanged load sheave and guide roller facilitate smooth movement of the load chain.
8.Stopper Prevents Excessive Lowering:
9.Ultra Strong Load Chain (Nickel plated)

HSZ-CB Chain Block Specifications
Model		HSZ-CB
Capacity	T	1	1.5	2	3	5	10
Standard lifting height	M	2.5	2.5	2.5	3	3	3
Load chain	No. of falls	1	1	1	1	1	4
	Dimenshon	6*18	7.1*21	8*24	10*30	10*30	10*30
Force of full load		250	265	335	372	360	380
N.W/G.W	Kg	14.5/14	16.5/17	19.5/20.1	32/34	41.1/43.6	75.7/79.1
Dimension	A	149	176	176	231	249	463
	B	153	173	173	185	185	185
	C	29	35	35	39	49	54
	D	41	51	51	49	67	75
	Hmin	352	385	385	445	615	765
Additional weight per 1m lift	kg	0.8	1.1	1.4	2.2	3.8	8.8
