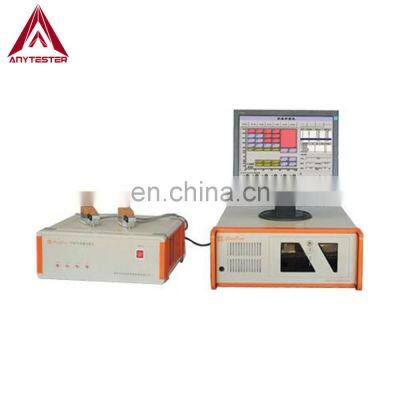

Yarn Classification Tester with Self-calibration

Product Description

Product Description
Product DescriptionHY0074 Yarn Classification tester is used to check cleared and un-cleared yarn to provide classification of thick and thin places, as well as check infrequently occurring yarn defects and foreign fibers in the yarn.SpecificationModelHY0074Measuring principleCapacitance detectingYarn count range4 ~ 112tex (MK15) 8 ~ 200tex (MK20)Winding speed300 ~ 1800m/minMeasuring heads6~12ClassificationClassifies faults into 3 major categories and 33 grades, 23 grades are usual including short thick area 16 grades, long thick area3 grades and long thin area 4 grades. Additional 10 grades including 4 grades are short thick area and 6 grades are shortthin area. It can optimize the production process so much betterPower supplyAC220V 50Hz 300WDetails & Features★ Detecting and analyzing seldom-occurring yarn faults, and classifying yarn faults★ Controlled by CAN-bus mode, the testing system is stable, reliable and better anti-interferential.★ Each testing unit has the function of self-calibration.★ Scatter diagram show the distribution of yarn faults exactly, which enables precise setting of yarn clearers.★ It can give a fault frequency in 100Km automatically by the detecting length.★ It can set the clearing channel, and detect the yarn length automatically.★ With database processing, convenient to copy, analyze, display and print test date.★ It can cut faults of specified channel, and have clearing function according to the channel.★ Detecting yarn count (yarn count monitoring), when has trouble, it will give alarm in timOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions720×360×1450mmWeight85kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
