5kw Medical Mobile Digital Radiography X Ray Portable Dr X-ray Machine for Veterinary and Human
| US$3,650.00-5,320.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MX-DR050B12
Certification
CE
Group
Vet
Item
Portable Digital X-ray Machine
Application
Human and Animal
Power
5kw
X Ray Tube Focus
1.8*1.8mm
Kv Adjustable Rang
40kv~110kv
Ma Adjustable Range
32mA~100mA
Mas Adjustable Range
0.32-315mas
Pixel Region
264*325mm
Pixel Matrix
3072*3072
a/D Convert
16bit
Transport Package
Standard Packing for Export
Trademark
MeCan
Origin
China
Production Capacity
500 Pieces/a Month
Product Description

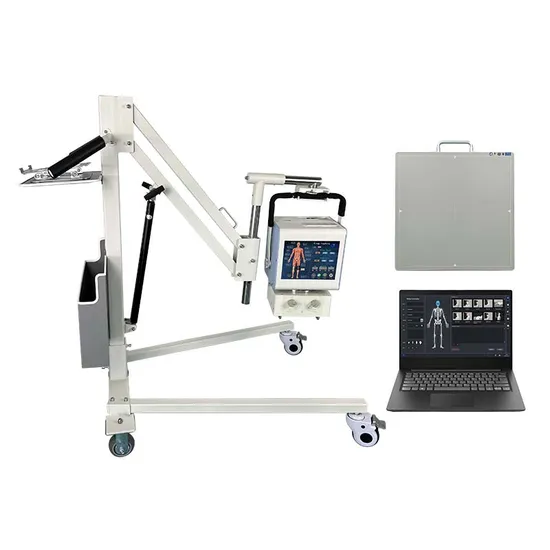

Product DescriptionPortable Digital X Ray
Model Number: MX-DR050B12
MeCan Medical is the professional manufacturer for portable xray machine, our 5KW portable digital x ray equipment is much better than 100 ma portable x ray machine in images, and much lighter, the big touch screen easy to operate the machine, it is very superior in portablexray machine, and we have 5.6kw portable xrays machine, 5.6kw battery powered x ray machine, 32kw mobile x ray machine, 50kw digital x ray machine and many other kinds of medical x-ray machine and pet x-ray machine.
Features of our Portable Digital X Ray Machine:
1) Simple & light structure;
2) LED digital display;
3) Anatomical memories for selection program;
4) Double-loop (analog & digital) high precision control mode;
5) High precision control in tube voltage & current;
6) Self-protection & auto-diagnosis available when malfunction occurs;
7)Light weight, portable medical x ray machine.
SpecificationPortable Digital X Ray Machine Specification:
| Power | 5kw |
| Power Supply | Single-phase 220V 50/60Hz (wire diameter>4mm2,internal resistance<0.5Ω) |
| Working Frequency | 30kHz |
| mA | 32-100mA |
| mAs | 0.32-315mAs |
| KV | 40-110kv |
| Exposure time | 0.01-6.3s |
| Tube focus | 1.8*1.8mm |
| Anode heat capacity | 42kHU |
| Flat Panel Detector | |
| Image size | 17*17 inch (14*17 for (option) |
| Pixels Matrix | 140μm |
| A/D Conversion | 16bits |
| Spatial Resolution | 3.6 Lp/mm |
| Software | Professional Software |
| Computer | R5-5500U/8G/512G |
DR system for portable x ray machine
