Home Theater Surround 7.1 Sound System Digital Audio Video Amplifier 5′′ Ceiling Speaker and 8′′ Subwoofer

Product Description

Product Description Home Theater Surround 7.1 Sound System
Description:
SH2048 Bluetooth-enabled 7.1-channel home theater sound system integrates LT-7.1 digital audio and video amplifier, 7 full range ceiling speakers and an 8-inch ceiling subwoofer, brings together the best of cinematic sound with versatile streaming capabilities. Enjoy your free time without compromise in one easy package. It is perfectly suitable for in ceiling home entertainment, surround sound, home theater, multiple room systems, background music, meeting, etc.
Features
LT-7.1 Digital Audio Video Amplifier 1. Simple and elegant intelligent operating system, full digital microcomputer menu control 2. Using the latest dual decoding chip, support (AC-3, DTS, PCM) optical fiber, coaxial, high-definition decodin
3. 8-channel independent volume adjustment, intelligent output protection circuit
4. High-speed central processing unit, automatically recognize audio input signals
5. Full-digital professional KTV karaoke mixing circuit, automatic noise reduction and electronic anti-acoustic processing function
6. U disk playback, support lossless audio formats: APE/FLAC/WAV and WMA/MP3
7. Built-in high-end Bluetooth chip, support most mobile audio devices
8. With a full-function infrared remote controller
9. 3 HD HDMI inputs, support 4K HD 3D video, support ARC (TV Audio Return) mode, support standby output audio to TV
10. The HDMI audio adopts the source code mode and supports Dolb 11. Atmos/Dolby-HD/Ac-3/EAc3/dTs-hd/dts-X/PCM2.1/LPCM5.1/LPCM7.1 and other decoding formats 12. Built-in high-performance professional U-segment wireless karaoke system, making karaoke simpler and more convenient to use
CP-520BL Ceiling Speaker 1. Elegant Rimless design 2. ABS in ceiling speaker at high performance 3. Easy and fast installation 4. Kevlar driver produces smooth and natural HiFi sound
LT-8.3SUB Subwoofer 1. Subwoofer 150W at 4 Ohm for smart home and hotels 2. With revealing clarity and flawless tonal accuracy
Ordering code: SH2048: CP-520BL 5" Rimless coaxial Ceiling Speaker with Kevlar driver 7PCS; 8-inch subwoofer LT-8.3SUB 1PC, 7.1 amplifier 1PC
Specification

Model	LT-7.1
Front Main Channel Output Power	120W+120W
Front Surround Channel	80W+80W
Rear Surround ChannelOutput Power	80W+80W
Center ChannelOutput Power	120W
Bass Channel Output Power	120W
Music Power	2000W
Harmonic Distortion	<0.5%(1kHz 5W)
Signal-to-noise Ratio	>85dB
Separation	>45dB
Input Sensitivity	<500mV
Frequency response
Front Channel	10Hz~40KHz(±2dB)
Surround Channel	10Hz~40KHz(±2dB)
Center Channel	10Hz~40KHz(±2dB)
Bass Channel	10Hz~200Hz(±2dB)
Treble Adjustment	Front channel+14dB(100Hz)
Bass Adjustment	Front channel +14dB(100Hz)
Gross Weight	9.5kg
Power Consumption	75W
Power Supply	~220V±10%,50Hz±1Hz

Model	CP-520BL
Product name	Ceiling Speaker
Rated Power	40W
Impedance	8ohm
SPL( 1W/1M)	89dB
Max SPL@ 1M	100dB
Product Size	Dia 205x85mm
Frequency range	80Hz-20KHz
Installation	In ceiling
Enclosure Material	ABS
Finish	White
Speaker	1"x1(TREBLE)5"x1(BASS)

Model	LT-8.3SUB
Power RMS	150W 4 ohm
Power PEAK	300W 4 ohm
SPL(1W/1M)	89dB
Max SPL@ 1M	109dB
Freg.Response	35-300Hz
Cutout Size	Dia 251mm
Product Size	Dia 273*107mm
Installation	In ceiling
Enclosure Material	ABS
Weight	3.6 kg
Finish	White grille with back body
Speakers	8 inch

Detailed Photos

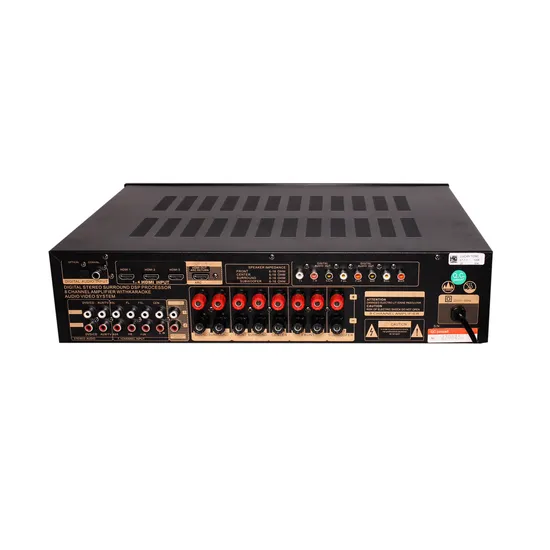

Amplifier:
Ceiling Speaker:
Subwoofer:
