CNC Drilling Milling Machine with Beam

Product Description

Product Description

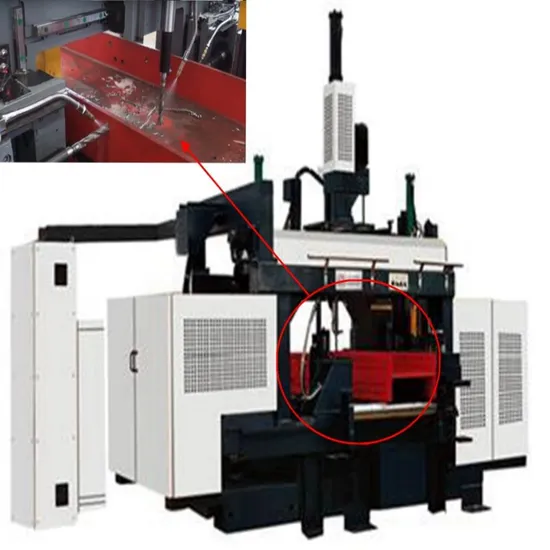

Normal machine for drilling beams' web and flange simultaneously Mainly composed of foundation, upper stand, CNC slideway, drilling head, clamp feeding device, electrical system, hydraulic system, cooling system etc. Malformation examination for webs and flanges.Horizontal and vertical clamping for H-beams. As for left and right spindles, one of them is fixed and the other can do horizontal movement so as to drill the workpiece of different size. The high-quality atomizing cooling system is of high quality that ensures the cooling and lubricating when drilling so that it can prolong the drill's life. Main components in control system are all world famous brands with high quality which ensures the reliability of machine. Programming, storing, display, selection and communication are convenient by using host computer. Clamping workpiece, drills feeding, are mainly driven by hydraulic system. Main components in hydraulic system are all world famous brands with high quality that ensures the reliability of the machine. Detailed Photos
Product Parameters

Model			ABD700	ABD1000	ABD1250
Drill Range	H*W	Max(mm)	700*400	1000*500	1250×600
		Min(mm)	100×50	150×75
	Thickness(mm)		≤50	≤80
Length	Auto mode(m)		3000
	Manual mode(m)		690-3000
Weight	(kg)		5000	8000	10000
Drill dia.	Vertical Drilling (mm)		φ12~φ30	φ12~φ33.5
	Horizontal Drilling (mm)		φ12~φ30	φ12~φ33.5
Drill Axis	Qty. of drill axis(pcs)		3 pcs
	Drill speed (r/min)		180 ~560(Frequency)
	Feeding speed (mm/min)		0-300
	Feeding stroke	Vertical axis(mm)	325
		Horizontal axis (mm)	140
	Horizontal axis move	In workpiece length (mm)	520
		in vertical direction (mm)	30-380	30-470	30-570
	Vertical axis move	In workpiece length (mm)	520
		in vertical direction (mm)	40-620	45-910	45-1160
Cooling	Cooling		Compressed air + cutting fluid
	Air pressure(mpa)		≥0.5
Accuracy	Error of adjacent holes in hole group (mm)		±0.5
	Accuracy of adjacent feeding distance within(mm)		±1
Motor power	Spindle axis motor(KW)		4x3
	Middle axis X servo motor(KW)		0.85
	Middle axis Z servo motor(KW)		1.3
	Side axis X servo motor(KW)		0.85x2
	Side axis Y servo motor(KW)		1.3x2
	Dragging Plate Motor(KW)		0.85
Dimension(L×W×H)(m)			36*15*25	45*24*33	47*24*33
Weight			5500	7000	8000
