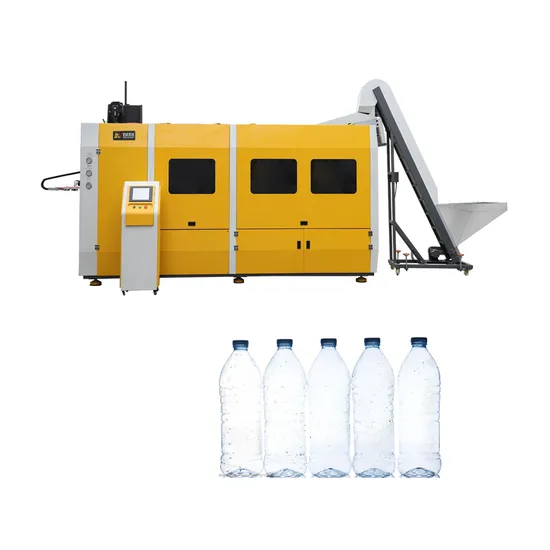

High Speed Automatic Blow Molding Machine Plastic Bottle Blowing Machine Machine Pet Bottle Blowing Machine

Product Description

Products Description
High Speed Blow Moulding Machine The fully automatic high-speed blow molding machine can efficiently and quickly blow bottles from 20ml to 2 liters, it has a complex design and well-designed machinery to achieve a gradual and stable blowing process. Uniform heating, layered preform heating system, automatic fault detection and alarm detection, can realize efficient control and stable production.

Features * Blowing Machine enables the production of various sizes of bottles with an improved design and vibration-free operation.* The hydraulic mold system adds to the stability and elaborate design of the machine. It also provides flawless clamping and sturdy operation.* The machine maintains a sound air control system that allows uniform airflow throughout the operation.* For the most convenient and accurate shaping, a cooling device works by attaching to the bottleneck. It cools down the specific part after molding.* The efficient servo motors allow convenient stretching of preforms. It will enable accurate and fast stretching strokes.


Detailed Photos


Product Paramenters

	Model	Unit	MW-4F/2000	MW-6F/800	MW-8F/800
Clamping Syatem	Number of cabity	cavities	4	6	8
	Calmping unit	KG	9600	9600	12500
	mold stroke	mm	120	100	100
	stretching stroke	mm	360	300	300
	bottom stroke	mm	35	35	35
	Cavitv pitch	mm	120	80	80
	number of holder	PCS
Container	Max container volume	ml	2000	800	800
	Max height diameter	mm	350	290	290
	Max container diameter	mm	110	72	72
	Max preform height	mm	180	180	180
	Max neck diameter	mm	38	38	38
Theoretica		B/H	7200B/H/500ml	11000B/H/500ml	15000B/H/500ml
Electrical Systeem	Heating oven qty	PCS	2	4	6
	Number of lamp	PCS	16	32	48
	Heating Power	KW	48	64	96
	Installed Power	KW	60	76	110
	Voltage	V	Customisation	Customisation	Customisation
Air System	Operating Pressure	mpa	1.0	1.0	1.0
	Blowing Pressure	mpa	3.0-3.5	3.0-3.5	3.0-3.5
	high pressure air consumption	L/min	4.0	6.0	8.0
	power	KW
Chiller Systeem	power	HP	5	8	10
Machine	machine dimension	M	4.5X1.9X2.6	5.2X1.9X2.6	6.5X1.9X2.6
	machine weight	KG	1500	6000	7500
	embrvo loader Size	M	2X1.2X2.7	2X1.2X2.7	2X1.2X2.7

Packing and Shipping

Packaging: Stable wooden packaging protects the machine from impact and damage. A wrapped plastic film protects the machine from moisture and corrosion. This is a fumigation-free package that supports smooth customs clearance. Large machines are fixed in containers without packaging.
Shipping: At LCL, we worked with a reliable logistics team to get the machine to the port quickly and safely. At FCL, we obtain containers, and our skilled workers carefully load the containers. As for forwarders, we have professional and long-term cooperation forwarders who can process your shipments smoothly. We also want to achieve seamless cooperation with forwarders at your convenience.
Customization Service
We will provide the best process plan based on your product and provide a complete set of mold designs to ensure that the bottle cap (injection mold) and bottle body (blow mold) match flawlessly.
Use high-precision machining centers to process high-precision molds * Excellent cooling effect * Provide free proofing service *Exquisite production technology *Strict quality requirements
Company Profile
Maiwei has been committed to the research of blow molding technology for many years. It has continuously accumulated experience in blow molding and improved product equipment to achieve more stable work, lower energy consumption and more durability. The product range includes: dairy products bottles, wine bottles, oil bottles, laundry detergent bottles, engine oil bottles, sprayers, hollow toys and other hollow plastic products. We'll actually help you solve your packaging blow molding problems, not just sell equipment. The machine has a wide application range and can increase or decrease the air source system according to user requirements. It has strong flexibility, low energy consumption and high efficiency.

FAQ
1.Q:Are you a factory or trading company? Where is your factory located? A: We are a factory,it is located in Huangyan,Taizhou city, Zhejiang Province, China.
2.Q:How about quality control in your factory? A: " Quality is the key point, do what customers needs."In the future, Maiwei will move towards more professional and deeper technical goals.
3.Q.What is your payment and delivery time? A:"The payment is 30% by T/T as down payment,70% by T/T before shipment.And the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 3-4 months.
4.Q.Do you provide any spare parts with the machine? A: Yes, MAIWEI will provide one set of standard spare parts to customers.
5.Q. What about the after-service? We offer over-all after sale service to meet customer's commandincluding on-line consulting and off line technical support.
