Aquatic Weed Harvester/Cutting Ship/Cleaning Boat/Water Clean Machine in Pond

Product Description

High Quality Aquatic Weed Harvesters Characteristic
1.This ship is a steel ship with two ends and single pontoon. It adopts transversal ribs and longitudinal frame structure,which completely conforms to the requirements of hydro mechanics and reduces the resistance to the lowest.Thus the efficiency of the ship is improve
2.This ship is mainly used for collecting and salvaging the algae in lakes and rivers. At the same time, the algae can be filtered, draining, dried into algae biscuit directly on ship, and all the collecting, filtration, draining can be completed by one man via controlling the control desk in the operation room, which is easy and convenient.
3.The algae collecting inlet is equipped at the bow, and sundries filter drum is equipped inside, which can prevent the suction of big garbage and avoid damage of algae collecting pimp.
4.The alage collecting inlet can adjust collecting depth according to requirements via hydraulic jacking device.The adjusting width is 1.7 - 4.5m.

Technical Parameters
Model	RL-AWH700	RL-AWH900	RL-AHW1300	RL-AWH1600	RL-AWH2100
Overal size (m)	7.3*2.4*2.7	9.5*3.6*2.8	13.5*4*2.8	16*4.5*4.2	21*6*5.3
Hull size (m)	4.3*1.9*0.9	6*2.8*1	8*3*1	9*3*1	11.6*1.8*1.5
Weight (kg)	1590	5000	8080	9500	20200
cutting wide (m)	1.5	2	2.5	2.5	3.0
cutting dept (m)	1.2	1.5	1.5	1.5	1.8

Details photo

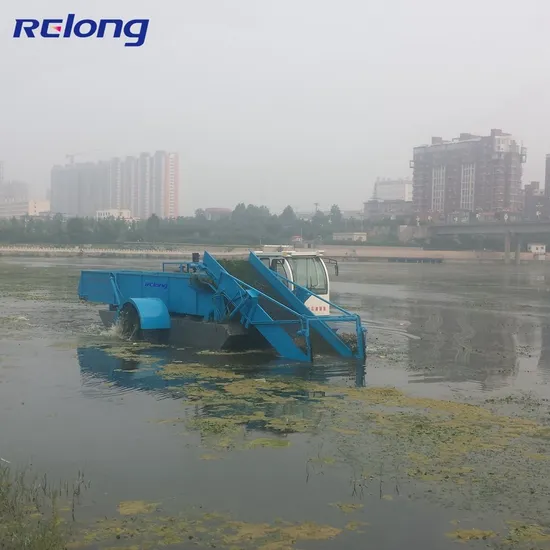

Working area
Before and after cleaning
Our product
