Jacket Heating Mechanical Seal Type Msgl Glass Lined Reactor for Specialty Chemical

Product Description

Shandong Luzhong Chemical Equipment Co., Ltd. is subordinate to Shanwang Industrial Equipment (Shandong) Group Co., Ltd. which is a group enterprise integrating, sales, R&D, production, import and export.
1992-The predecessor of the company, Zibo Star Chemical Equipment Factory, was established
2002-A branch plant, Zibo Kaizhi Chemical Equipment Manufacturing Co. was established
2016-Second branch plant, Zibo Yuankai Environmental Protection Equipment Manufacturing Co. was established
2017-ShanKing Industrial Equipment (Shandong) Group Co. was established
2022-Shandong Ludong Special Equipment Co. was established
2002 - Shandong Lugong Advanced Equipment Industry Research Co. was established

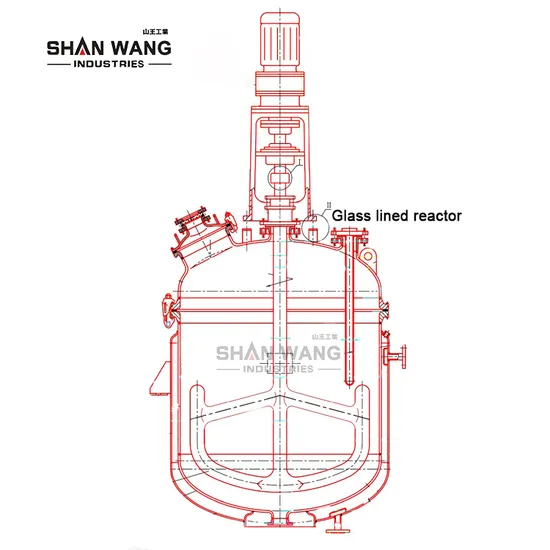

Glass-lined reactor: it is the enamel glaze containing high silica sprayed on the inner surface of the steel container, and firmly adhered to the metal surface as a composite material product through a reasonable high-temperature burning process. Convenient to use, easy to maintain and repair. It has the double advantages of glass stability and metal strength, is excellent corrosion-resistant chemical equipment, corrosion-resistant, impact-resistant, smooth and beautiful, insulation, heat-resistant, wear-resistant, and other reliable performance. Enamel reactors and other enamel equipment are widely used in chemical, petroleum, pharmaceutical, pesticide, food, dyes, and other industrial production process. They are the ideal equipment for hydrolysis, neutralization, crystallization, mixing, emulsification, and so on.
Detai
The glass-lined reactor for the industrial chemical factory is made by coating high silicon content on the surface of the metal body and then firing them at high temperatures (about 900°ºC) several times to achieve a high adhesive strength of the enamel on the steel base body. So the equipment has the dual advantage of both chemical stability similar to glass and high strength as metal.
Glass-lined equipment is widely used in distillation, concentration, and reactions such as synthesis, polymerization, chlorination nitrification, etc, which are common in the industries of chemistry, pharmaceutical, dyestuff, pesticide, organic synthesis, petroleum, food, defense as well as scientific research.
Production Display
Corrosion resistance stability: very high corrosion resistance against inorganic acid, organic solvents with different concentrations, and weak base, but not applicable to alkali, acid, fluoride bearing medium, and phosphoric acid with concentration above 30% at a temperature over 180°ºC.
Resistance to impact: Resistance to impact is over 220×10-3J; Never hit the glass lining with hard objects during operation.
Insulation performance: The enamel surface has been strictly tested at 20KV.
Thermal shock resistance: Resistance to sudden cooling is 110°ºC, and to sudden heating is 120°ºC.

Pressure	<0.6 Mpa
Temperature	0ºC-150ºC
High Voltage	20 KV
Glass-lined thickness	0.8-2.0MM
Resistance to sharp temperature variation	cool shock 110ºC, hot shock 120ºC

Production Equipment
Our company introduces the international advanced CNC cutting machine and the CNC four-roller winding machine, with high discharge efficiency, accurate size, and strong interminability, the drum is formed at one time, and the round tolerance is small.
The equipment adopts full automatic welding, automatic arc welding, automatic welding ratio of up to 80 %, and beautiful weld shape, ensuring product quality and product quality to reach the international advanced level.
Detailed Display
Package and Shipping
Installation site
Testing Facility

1	Mechanical Performance Test of Steel Plate
2	X-ray detection
3	Plane test of pipe mouth
4	Thickness test of the porcelain layer
5	Electric spark test
6	Hydraulic tests
7	Vacuum test
8	Empty operation and testing with water tape

Spare parts
FAQ:
Q1. Are you a factory or a trader?
A1. Shandong Luzhong Chemical Equipment Co., Ltd is an integrated industry and trade enterprise. We are the factory that manufactures and exports all kinds of chemical reactors, chemical storage tanks and machinery parts.
If you want to visit the factory to inspect the goods, we are happy to provide you with any help.
Q2. What is your delivery time?
A2. We support FOB, CIF, CFR shipping methods. Usually, the delivery time for one device is 30 to 40 days, depending on the shipping method.
Q3. How long is your warranty?
A3. We promise to provide a one-year warranty for all products we currently sell.
Q4. What payment methods do you accept?
A4. We can accept T/T, L/C, D/P.
The customer needs to pay 30% of the deposit in advance, and the remaining 70% of the payment is completed before delivery.
Q5. Do you provide installation guidance or other after-sales service?
A5. Yes, of course. Installation drawings and installation manuals are provided. If you are still unable to assemble, we have the professional engineer teams and will help you with voice or video contact.
Q6. How do you pack and ship the equipment?
A6. We offer sea, rail or combined transportation. At the same time, we also provide LCL (LCL), Full Container (FCL), Flat Rack (FR), Bulk and Express to ensure that the goods are safe and free from damage.
