China Professional Manufacturer Es-Top CNC Precision Planer Vertical Milling Machine Vm-2340CNC

Product Description

Es Top: Professional made the excellent machine.

ESTOPCNC is a manufacturer, distributor and exporter of industrial master machinery and CNC machine tools in China. The company is headquartered in Dongguan city, Guangdong Province. Company by a group of in Taiwan and mainland China engaged in more than 20 years of CNC milling machine manufacturing engineers, maintenance technicians, relying on the powerful world factory location advantage and talent advantage, constantly promote the shift to China smart upgrade, made in China to intelligent manufacturing in China. Cost-effective milling machine, grinding machine, gantry processing center and other CNC machinery and equipment to the international market.
ESTOPCNC in the form of diversified, intelligent response to changing market environment, from the introduction of advanced technology, digestion and absorption innovation, to fully replace imported Japan, Taiwan machine tools, in domestic application, and after ten years of precipitation and accumulation, reverse exports to Japan, Taiwan province, North America, Europe and southeast Asia and the Middle East countries, combined with professional management operation system and professional international after-sales service team, won the user's praise and affirmation.
We will continue to bring you high quality and a variety of machining center equipment. Single-minded, do a good job of machinery, good service hexahedral processing, that is, the perfect quality and excellent global after-sales service!
Product Description
Dongguan ESTOP Machinery Co., Ltd.
Model:VM-2340CNC

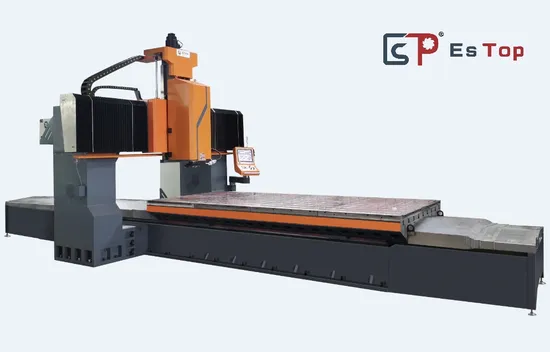

ESTOP CNC Vertical Milling Machine for Precision Engineering VM-2340CNC
CNC system once-setting for automatic guides where work-piece loading place, automatic measurement, automatic cutting, processing and setting at the same time, which can reduce machine waiting for manual operation and increase Productivity, to secure high-accuracy of dimension, flatness.
Product Parameters

VM-2340NC Specifications
No.	ITEM	Description	Parameter
1	Model	CNC gantry milling machine	VM-2340NC
2	Vertical milling capacity	Maximum machining length mm	4000
		Maximum machining width mm	2300
		Maximum processing height mm	600
	Sides milling capacity (Option)	Maximum machining length mm	3800
		Maximum machining width mm	2300
		Maximum processing height mm	400
3	Worktable	Worktable size mm	1800*4000
		Max loading weight	18000
4	Gear type Vertical milling head	Spindle power kw	15
		Spindle taper	BT50(7:24)
		Speed of mainshaft C/S	50-500
		Cutting diameter mm	250
5	Gear type side Milling head (Manual)	Spindle speed rpm	75/115/165/240/345/505
		Spindle power KW	15
		Cutting diameter mm	250
		Spindle taper	BT50(7:24)
6	Z-Axis Balance	Nitrogen counterweight Balance system	4 pcs
7	Travelling speed	X axis moving speed of mm/min	0-6000
		Y axis moving speed of mm/min	0-8000
		Z axis moving speed of mm/min	0-8000
8	Motor power	X,Y,Z axis motor KW	7.5,3,3
9	Cover	Metal sheep protect, open top, house cover, CE STADNARD	House cover
10	Dimension	Inside width	2300
		Machine area mm	9200*4200*4000
		Machine weight Kg	32000

VM-2340NC Main part
Item	Name	QTY	Original	Remark
Mechanical	Worktable Ball screw	1 pc	Taiwan Hiwin	steady transmission,High accuracy, wear-proof
	The milling head	2 sets	Taiwan GY/JX	Famous brand, high quality
	Bearing	1 set	NSK	famous brand, High accuracy, High quality
	Lubricating oil pump	3 sets	Baoteng	Famous brand, high precision, high quality
	Z Balance system	1 set	DC	Famous brand
Electrical	CNC system	1 set	LNC	Taiwan famous brand, High accuracy
	Servo motor	3 set	XY	Famous brand, high precision
	Electrical components	1 set	Schneider	Famous brand, steady property

Our Main Products: High precision machining centers, Surface Grinding machine, Gantry grinding machine, NC band saw machine, CNC Circular plate sawing, CNC Vertical milling machine, CNC Duplex milling machine, Deep hole drilling machine, Horizontal milling centers, Vertical machining centers, High speed CNC turning centers, High Precision 5-Axis Vertical Machining Center We can customize models according to customer requirements, more Non-standard series please consult the manufacturer.If you are interested in our machines, you can click on the picture below to enter our product homepage where there are more details. Our Advantages

Our Service

Certifications

Packaging & Shipping

FAQ
FAQ
Q1. What is the payment Terms ?
A1: T/T, 30% initial payment when order ,70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start to make production. When the machine is ready , we will take pictures to you after we got your balance payment. we will send the machine to you.
Q2.How can I choose the most suitable machines ?
A2: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you.
Q3. What is the package of the machines?
A3: The machines standard packed by iron pallets or Fumigated wood with plywood films.
Q4. What is your trade terms?
A4: FOB, CFR, CIF or others terms are all acceptable.
Q5. What is your minimum order quantity and warranty?
A5: MOQ is one set, and warranty is one year. but we will offer lifetime service for machine.
Q6.When is the delivery time?
A6: We will delivery then within 15-60 working days after received your deposit. If some special machines will be some longer, we will give you the answer accordingly.
Q7: How to ensure the quality?
A7: 1.Firstly we choose best material for the processing.
2.Being and after processing, we will inspect the finished parts.
3.Machine finished, our company QC will test the machine as per customer requests.
Q8: How to deal with the after-sales service?
A8: 1. Technician available for training and installation at customer's company
2. Internet service by sending emails and videos, communicating online or calling
3. One year warranty. During the warranty period, we will sent damage of the machine parts (non-human factors)for free.
Q9: How do we get the training for the machines?
A9: You can send your people to our factory and we will offer training free of charge, or we can send our engineer to your place.
Q10: Where is your factory located?
A10: Our factory is located in Dongguan city and Chongqing city.
