Best Seal Ultra-Fine Powder Mechanical Pulverizer Feed Processing Equipment

Product Description

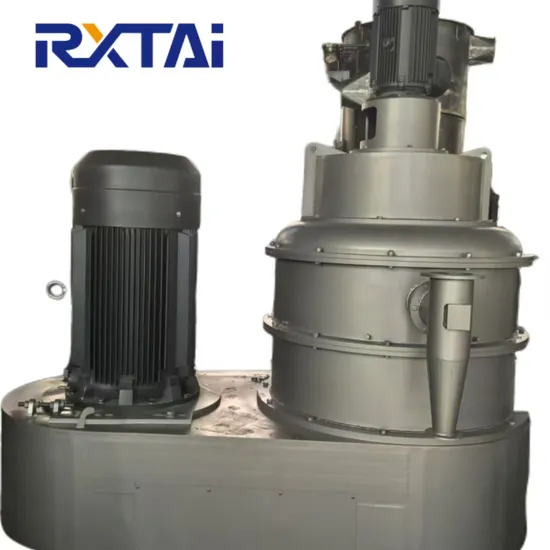

Best Seal Ultra-Fine Powder Mechanical Pulverizer Feed Processing Equipment
Product Description

The material after primary cleaning and magnetic separation enters the grinding chamber from the screw feeder for grinding. Due to the high-speed rotation of the crushing disc, under the action of centrifugal force, the material is crushed by the impact of the hammer knife on the crushing disc, and is spun to the surrounding gear ring at a very high speed, because the gap between the hammer knife and the gear ring is small, it is further crushed here.
Powerful Performance: High-efficiency motor, effortlessly crushes various materials

Safe & Durable: Reinforced body, anti-jamming design
Versatile: Suitable for grains, pigments, and more
Energy-saving: Low power consumption, reduces operating costs

Power Source	Electric
Automatic Grade	Automatic
Feed Type	Soybean Meal
Capacity	3000-5000kg
Power	75kw
Process	Grinding
Application	Dog, Fish, Cat, Bird, Cow Chicken

Model	RXT90
Graded rotational speed r/min	100~3000
Rotor diameter mm	900
Number of narrow V-belts in transmission	8
Number of hammers	16
Main motor power(kw)	90/110
Graded motor power(kw)	7.5
Feeding motor power(kw)	0.75

Model		RXT150
Capacity (t/h)	Common puffed fish (grass carp, tilapia) 80mesh>85%	≥1.2~1.5
	High grade puffed fish 80mesh>92%	≥1.2~1.5
	South American white prawn sauce 80mesh>95%	≥ 1.2~1.5
	Sea cucumber and abalone feed 300mesh>95%	≥0.5~0.6
Power(KW)		110

Company Profile
The company is an integrated manufacturing enterprise that combines technical research and development, production, sales, and after-sales service, specializing in the production of high-performance ultrafine pulverizers and related mechanical equipment. As a manufacturing company in the field of powder technology, Ruixintai Machinery has established a strong reputation and position in the powder industry through years of technical accumulation and production advantages, relying on advanced proprietary technology in China.
FAQ

1. How can I know your quality?
Our company is famuous in our industry. We have more than 10 years history. The best way to know the quality is comparison. You can come to our factory for on-the-spot investigation. You are welcome.
2. Can you supply sample test?
Of course our company can supply sample test before buying. And record the testing result and send to you by pictures or video.
3. What is your delivery time if I place order?
Usually 30~60 days. It depends on the machine itself, our actual order status.
4. Can you supply installation and commissioning service abroad when we received our equipment?
Yes, our company can send our engineers to your local workshop to guide installation and commissioning and training your operators.
5. How to operate and maintain the machine?
We will give you operation manual, drawing, circuit diagram spare parts list, etc after shipping.
6. What should I do if we can not solve the problems some times?
You just need to send email or make a call to us. We will reply within 12 hours and analyse the problems with you. Find the reason and find the way.
If we can not solve by communication after trying several ways, we can send our engineer to your place if you need.
7. What is your warranty period?
We supply one year warranty and life time after sales service for our euqipment.
