Construction Material Flat Roofing Materials Bitumen Waterproof Sheet Production Line

Product Description

Modifed bitumen waterproofng membrane production line is to produce SBS / APP Modifed Bitumen Waterproofing Membrane which is widely used in industrial and civil buildings such as roof, basement, toilet, bridge, park, swimming pool, tunnel for waterproofng and moisture proofng.
The working principle can be divided into 3 steps.
1.To mix the bitumen, polymer(SBS or APP) , talcum filler silo powder, engine oil and some other raw materials via modifed mixer tanks(the mixing tank should be kept warm by heat conducting oil). The finished mixtures can be called modifed bitumen.
2.The modifed bitumen will be deliveried into coating tanks. Then the carrier nonwoven(reinforcement) will be coated with the modifed bitumen. At last, the coated nonwoven will be covered by PE film or sand or other surface materials. Then, the bitumen membrane will be formed in to rolls.
3.The finished products will be cooled by water and air, then be rolled by winder.

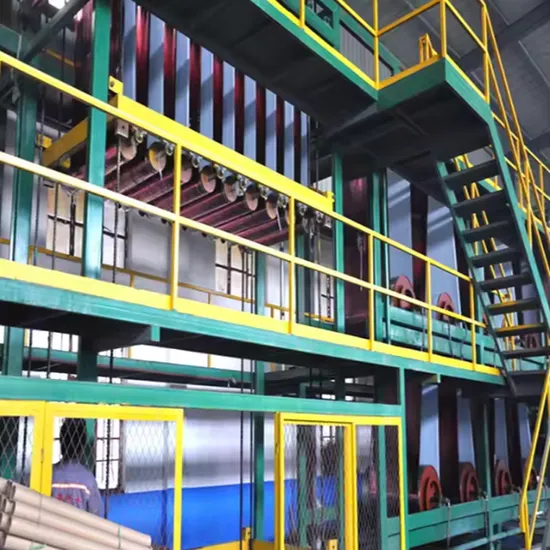

Asphalt waterproof roll machine/
asphalt waterproof roll production line to produce asphalt roll

Model Name	DYE---100	DYZ---200	DYZ---300	DYZ---500	DYZ-800	DYZ-1000	DYZ-->1000
Machine Type	Simple	Simple	Midsize	Midsize	Midsize	Large	Large
Membrane(m²) Annual Output	1 million	1.5--2	2.5--3	4.5--5	7-8	9-10	>10
Building required (L×W×H meter)	45×10×5	50×10×5	50×10×6	60×10×8	60×10×8	60×10×8	70×10×8
Operation Mode	Semi-automatic or automatic

Membrane Forming Production Line	Raw materials Oxidation System	Boiler Heating System	Environment Protection System
1.Unwindering&Splicing 2.Accumulating 3.Drying device. 4.Central Aligner. 5.Impregnating&coating 6.sand/film covering. 7.Cooling system 8.Buffering&winding 9.electrical operation control device.	Mix with different raw materials,such as,polymer(SBS or APP) ,Filler talc powder,bitumen......	Supply heat for conduction oil	Lampblack fume treatment

FINISHED PRODUCTS
Finished products of modifed bitumen waterproofng membrane production
Loading & Application:

RAW MATERIALS
Raw Materials As The Reference:
Shandong Chenhua Waterproof Co., Ltd. is your ideal choice, the factory was founded in 1994, the main products are asphal-t/non-asphalt waterproof materials, such as torch coated asphalt waterproof film, self-adhesive asphalt waterproof film, water-proof sealing tape, polymer waterproof film, polypropylene composite waterproof film, asphalt primer, K11 waterproof coating, JS waterproof coating, polyurethane coating. Polymer waterproof coating... in addition, we also produce production lines for va-rious waterproof materials, such as asphalt film production line, PVC film production line, non-woven fabric production line.
Based on the principle of "quality frst, reputation frst", the company has passed SGS IN-TERTEK and other quality service certif-cation. Product quality has been recognized and praised by domestic and foreign customers. At present, the company has expor-ted to the United States, France, Colombia, Jamaica, South America, Turkmenistan and other morethan 20 countries.
Chenhua Waterproof looks forward to win-win cooperation with you.

1) How to choose suitable machine capacity ?
-Please check how many rolls of bitumen membrane you plan to produce per day or per year(base on, 3mmx1mx10m per roll)
2)What questions to be answered by clients before seller's quotation ?
-A: What's the available fuel for boiler in your city ? such as, gas, diesel, coal or electric.
-B:Do you have ready workshop for installing this production line?
-C:Do you have experience of producing this kind membrane before ?
3) Are you manufacture ?
-Yes, by now, we have exported to and installed in more than 5 countries, such as, SaudiArabic, Oman, Algeria, Turkmenistan...besides, there are running production line in ourselves workshop, welcome your visiting to our factory, let's introduce every parts to you face-to-face for your better understanding.
4)Delivery time
-Normaly, machine order will be finished around 2 months after order confirmation. the delivery time are different according to different requirements and quantity.
