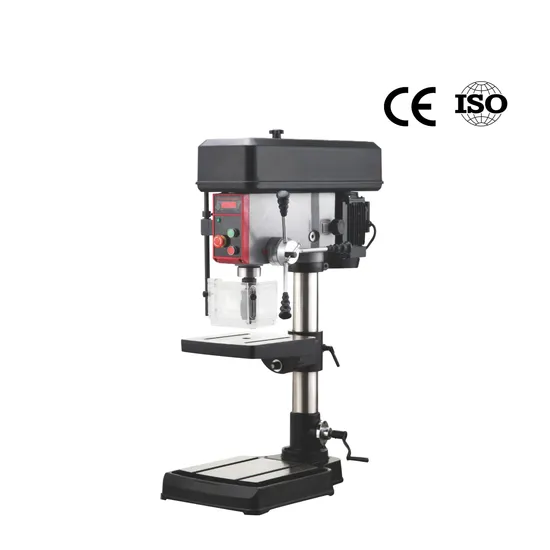

Z2025b Senmo Drilling Machine 25mm with Good Safety Performance and Wear Resistance
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
Z2025B
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Chuck Capacity
B16 1~16mm
Column Diameter
85mm
Spindle Travel
135mm
Swing
510mm
Spindle Taper
Mt3
Overall Height
1100mm
Motor Power
1100W
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84592900
Product Description
| Drilling Machine |
| Vertical Drilling Machine |
| Feature |
| Better rigidity due to construction by heavy solid cast iron after tempering failure processing. Excellent appearance due to surface treated by multi-process spray treatment. High precision due to highly processed operating table surface. Good wearing quality and long performance life. Harden and tempering treatment of spindle, gear and arbor. Steel made handle seat assembly. The machine is with front switch and emergency stop. Solid and secure safety guards. Good safety performance in accordance with the standard design of European and American countries. |
| Specifications | Z2025B |
| Max. drilling capacity | 25mm |
| Chuck capacity | B16 1~16mm |
| Column diameter | 85mm |
| Spindle travel | 135mm |
| Swing | 510mm |
| Max. distance spindle nose to table | 280mm |
| Max. distance spindle nose to base | 540mm |
| Spindle taper | MT3 |
| Spindle speed range | 200~2400rpm |
| Step of spindle speed | 5 |
| Table size | 338x300mm |
| Base size | 600x385mm |
| Overall height | 1100mm |
| Motor power | 1100W |
| Weight | 160kg |
| Packing size | 1595x710x485mm |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
