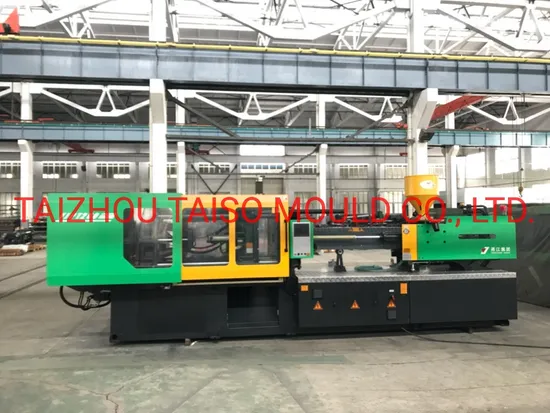

Plastic Injection Machinery/Injection Machine for Producing Preforms and Caps

Product Description

A. Hydraulic unit:
High efficiency, energy-saving and high precise proportional pressure and flow variable
displacement pump system make the out of the hydraulic system matching the required power
for entire machine operation without loss of high pressure throttle and overflow energy. As
compared with constant displacement pump, it saves power by 30%~60%. A motor with
same power may be fitted with an oil pump of bigger displacement and thus accelerates the
speed of machine. Besides, the low oil temperature will prolong the service life of sealing
elements. Buffer device is used in every mold opening and clamping oil way to ensure steady
mold opening and clamping operation without any impact. Besides, differential mold clamping
operation is fitted to ensure high production efficiency.
B. Mold adjusting unit:
The automatic mold adjusting device driven by hydraulic motor adopts gear coupling drive,
features steadiness, speediness, high-efficiency and saving mold loading time.
C. Mold locking unit:
The new generation mold locking device and computer emulation optimized parameter makes
motions of the moving plate fast and steady .When combining the box type moving plate, fixed
plate and high rigidity toggle structure, the characteristic of high strength and anti-fatigue is
secured. As compared with similar machines, it owns bigger internal spur between tie bars,
mold space and mold opening stroke and may process plastic products of bigger size.
D. Control unit:
High performance special control for injection molding machines, switches over Chinese and
English, clear and visual and easy to operate.
E. Injection unit:
Short and forceful double-cylinder injection system is used to ensure the steady injection
motions. The strain free fixed mold plate and screw assembly with optimized design help to
reach better plastizating capacity and effect. The screw head and back stop ring made of
Japanese high tenacity hot working tool steel by special heat treatment features high temperature
resistance, wear endurance and hot burnout resistance, maintaining extremely high hardness
during high temperature operation. The screw and material tube made of high
grade alloy steel by vacuum ion nitriding treatment feature high hardness, corrosion resistance
and wear endurance. PID temperature control in combination of high precision electronic ruler
and control regulate the speed and pressure of injection, pressure keeping, smelting, back
pressure and other motions to ensure the quality of formed products and continuation of
production. Auto material preparation, drooling proof, and anti cold start lapse functions ensure
the high efficient, simple and safe operations

1. PORCHESEN PLC with color touch screen

2. American VICKERS Oil Pump

3. American VICKERS Main Direction Valve

4. Japan DAIKIN Throttle

5. Taiwan Hydraulic Check Valve

6. British SEALTECH Oil Sealing

France SCHNEIDER Frequency Converter

8. SIEMENS BEIDE Motor

9. France SCHNEIDER A/C Converter

10. France SCHNEIDER Thermal Relay

11. France SCHNEIDER Air Switch
