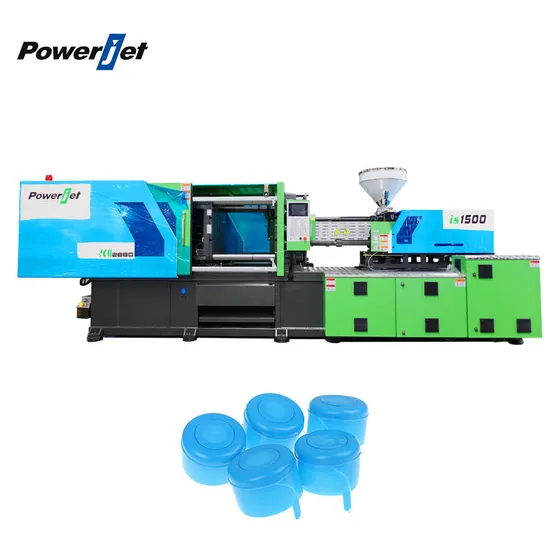

High-Precision Injection Molding Machine for Soap Bottle Production

Product Description

Products Description
New sheet metal appearance design,novel and fashionable
Center-press toggle system designed, fast and stable
New improved injection system, higher
injection speed, more precise

Strengthen rigid frame, better damping performance, production more stable
New servo motor system, high response and high precision
CLAMPING UNIT
-Improve stability in molding
-Minimize platen's damage -Higher speed and stable platen's movement
Center- Press Toggle Unit
Center press toggle system designed to apply equal force on mold during clamping and preventing platen's damage New design of the clamping structure, ensures the rigid mold platen enhancement increasing more than 20%.
Anti-tilt side design of the foot ensures the opening and closing of smooth high-speed;
European ejector design, enhances the adaptability of the mold;
Low stress and long life bar structure.
INJECTION UNIT
---Precision, Stability, Good Plasticization---

Improved injection mechanism,
Efficient driving technology, Fully reduce injection resistance, Improve speed and accuracy, Ensure plasticizing quality Color mixing performance.
Centralized lubrication
Shooting and moving double rod structure, positioning is firmer and more accurate
Proportional back pressure control of melting
Structure of long life transmission shaft and anti- fatigue injection piston rod
CONTROLLING UNIT
-----Easy To Use-----
PLC
. More reasonable electric circuit layout, improving anti-interference ability and stability; . More powerful software, highscalability; Optimized control system, energy saving and high response
Product Paramenters

DESCRIPTION			UNIT	KII288-S7
LAMPING UNIT	Clamping force	KN	2880
		Opening stroke	mm	550
		Max.datlight	mm	1160
		Platen size	mm	850*850
		Space between bars	mm	610*610
		Max.mold height	mm	610
		Min.mold height	mm	280
		Ejector stroke	mm	150
		Ejector force	KN	77
INJECTION UNIT	Screw diameter	mm	68
		Screw L/D Ratio	L/D	19
		Injection Pressure	MPa	145
		Shot volume	cm3	1017
		Shot weight (ps)	g	905
				oz	31.9
		Injection rate	g/s	402
		Screw stroke	mm	280
		Screw speed	rpm	236
POWER UNIT	Hydraulic system Pressure	MPa	17.5
		Pump motor power	KW	30/53.3
		Heater power	KW	13.8
GENERAL	Oil tank capacity	L	400
		Machine weight	T	9.7
		Machine dimensions (L*W*H)	m	6.1*1.61*1.85

Company Profile
POWERJET PLASTIC MACHINERY CO., LTD. is a high and new technology enterprise of R&D, manufacturing, sales, after-sales service of injection molding machine and blow molding machine. Powerjet was founded in 2000,occupying an area of 130,000 square meters. Annual production capacity has reach to 4000-5000 injection sets of. More than 20 offices have been set up in the global market, machines have been exported to more than 60 countries in the world. The machine specifications are complete, adapt to a variety of industries, cost-effective, and create high returns for customers. One-stop whole-process caring service.
Established distributors in multiple countries like Thailand, Malaysia, Indonesia, Vietnam, Uzbekistan, USA, Mexico, Brazil, and Pakistan, etc. With a global sales network, our local offices and agents can provide more convenient and sincere services. Agent In Worldwide
Setting Up Agent In More Than 20 Countries For Sales And Support
Lifetime Support
24 Hours Online Service And Overseas Installation & Maintenance
Spare Parts
We Supplying Screw, Motor, Control Panel And Plastic Mold For Machines
Operation Training
Support Training To Engineer For Setup, Processing & Troubleshooting
Plastic Mold Testing
Provide Testing Mold Service Before Customer Receiving The Machine
Project Cases


FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 24 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located in No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
