Tractor Mounted 1 2 3 4 Rows Deep Digging Depth Medium-Sized Potato Harvester

Product Description

Product Description
4UL-170C potato combine harvester can directly load potatoes into the truck, simplifying the workflow and reducing the labor intensity. The structure type is traction type. During work, the tractor pulls the combine harvester and excavates the digging shovel. At the same time, the potato-soil loosening and excavation depth limit are carried out by the contour-shaped deep-wheel, and the excavated potato soil is transported through the conveying net sieve for potato-soil separation and potato block transportation. In the process of potato tuber transport, the potato is separated, the clean potato after the potato-soil, potato-salt separation enters the potato transport device, and finally, the clean potato is transported to the transport vehicle through the potato transport device, and the transport vehicle after the harvest is transported away.

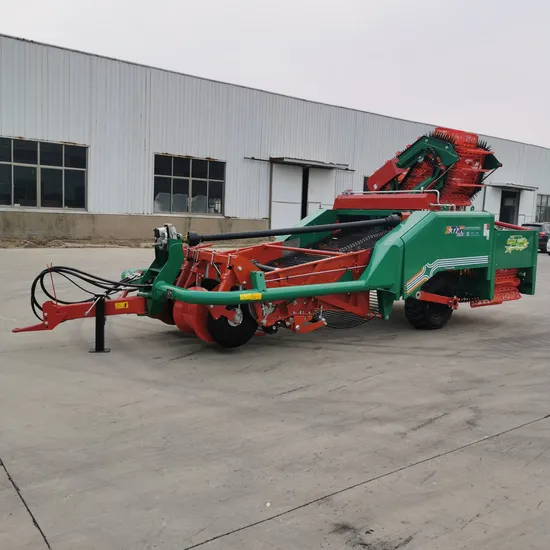

Detailed Photos
Product Parameters

Structural Style	Trailed
Overall Dimension (length×width×height)	6300×3750×2560mm
Machine Weight	3276kg
Tractor Engine Power	≥73.5kW
Working Ridges	2
Working Width	1700mm
Adapt to Ridge Width	900mm
Digging Depth	150~300mm
Productivity of Pure Working time	≥0.33hm2/h
Efficiency of Lifting Arm	60t/h
Maximum Loading Height	2940mm

Certifications
Our Advantages
The potato combine harvester can realize the one-time excavation of potatoes, the separation of potato-soil, the separation of potato- salt, centralized collection and transportation, etc., and can harvest two ridges at a time, the working efficiency is above 0.33 hm2/h, and the loss is small and the skin breaking rate is low. Low, the potato is light and contains fewer impurities. The structure mainly consists of a frame, a depth limited wheel, a potato soil separation device, a clearing and soil removing device, a non-equidistant potato collecting device, a conveying device and a hydraulic system.
