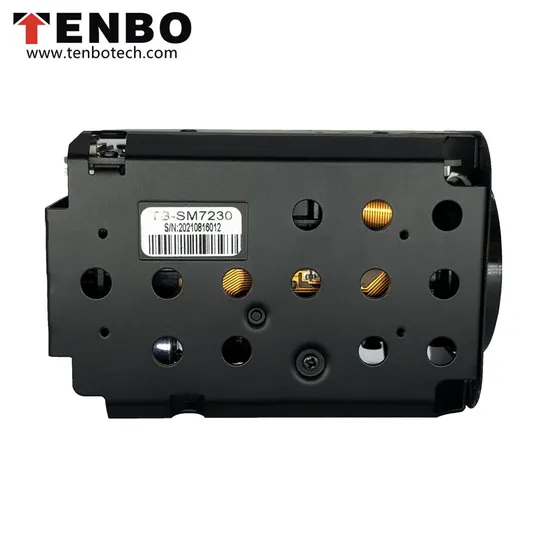

TB-SM7230 2MP 60fps 30X Optical Zoom Lens 32X Digital Zoom VISCA Sony CMOS CCTV Digital Block Zoom Camera Module with LVDS EX-SDI CVBS Output
| US$450.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TB-SM7230
Type
CCTV Camera
Sensor
CMOS
HDMI Format
1080P
Horizontal Resolution
1920x1080
Kind
Autofocus Lens
Certification
CE, FCC, RoHS
Feature
High Definition, Auto BLC, Auto Focus, Auto Iris
Effective Distance
>2000m
Sensor Size
1/2.9 Inch
Remote Control
With Remote Control
Image Sensor
1/2.9" Sony CMOS
Focal Length
4.3mm ~ 129mm
Optical Zoom
30X Optical Zoom
Digital Zoom
32X Digital Zoom
Max Frame Rate
60fps
Defog
Support
Privacy Zone Masking
Support
Motion Detection
Support
Digital Image Stabilization
Support
WDR/BLC/HLC
Support
DNR
2D+3D
Protocol
VISCA, Pelco-D/P
Power
9-15V DC
Weight
240g
Video Output
LVDS, EX-SDI, CVBS
Transport Package
Standard Carton
Specification
55.6(W) x 64(H) x 124(D)mm
Trademark
TENBOTECH
Origin
Shenzhen
HS Code
8525891900
Production Capacity
30000PCS/Year
Product Description
• 1/2.9" 2MP Panasonic Progressive Scan CMOS sensor• 1080P@60fps/ 30fps, 720P@60fps/ 30fps
• Lens f=4.3mm~129mm
• 30X Optical Zoom & 32X Digital Zoom
• F1.6(wide) ~ F4.7(tele)
• Day & Night(ICR)
• Real-time True WDR
• Digital Noise Reduction(2D+3D)
• Digital Image Stabilization
• Privacy Mask Function
• High Light Compensation
• WDR/BLC/HLC/AGC/DNR
• Intelligent Motion Detection
• Defog Function
• Supports VISCA, Pelco-D/P Protocol
• Video Out : LVDS, EX-SDI, CVBS
| Model No. | TB-SM7230 | |||
| Image Sensor | 1/2.9" Panasonic Progressive Scan CMOS Image Sensor | |||
| Total Pixels | 1956(H) x 1266(V) = 2.48M pixels | |||
| Active Pixels | 1944(H) x 1092(V) = 2.12M pixels | |||
| Scanning System | Progressive Scan | |||
| Sync. System | Internal Sync. | |||
| Resolution | Digital : 1080P@60(50)fps, 1080P@30(25)fps, 720P@60(50)fps, 720P@30(25)fps | |||
| Analog: CVBS (700TVL) | ||||
| Min. illumination | Color(1/30s) : 0.475 lux , BW(1/30s) : 0.085lux | |||
| Color DSS(1/7.5s) : 0.125 lux, BW DSS(1/7.5s) : 0.025 lux | ||||
| Video Output | Digital : LVDS / EX-SDI | |||
| Analog : CVBS(except WDR mode) | ||||
| S/N Ratio | more than 50dB (AGC off) | |||
| Lens type | 30X Day & Night Optical Zoom Lens | |||
| Zoom Ratio | 30X Optical Zoom , 32X Digital Zoom | |||
| Focal Length | f = 4.3mm - 129mm | |||
| Aperture Ratio | F1.6 (wide) ~ F4.7 (tele) | |||
| Angle of View (D, H, V) | Wide | 71.3° | 58.9° | 45.3° |
| Tele | 2.58° | 2.11° | 1.61° | |
| Focus Mode | Auto / One Push / Manual | |||
| Min.Distance | 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m | |||
| Zoom Speed | 0(Slow) ~ 7(Fast) | |||
| Lens Refresh | One Push / 1day ~ 10days | |||
| Digital Zoom | Off / MAX x2 ~ x32 | |||
| Exposure Mode | Auto / Iris. Priority / Shut. Priority / Manual | |||
| AGC(Gain Control) | 0 ~ 10 steps | |||
| Shutter Speed | 1/30(25) ~ 1/30,000 sec | |||
| Iris | 0 ~ 20 steps | |||
| DSS(Digital Slow Shutter) | Off / x2 / x4 / x8 / x16 / x32 | |||
| Flickerless | Off / On / Auto | |||
| Brightness | 0 ~ 20 steps | |||
| WDR/BLC | Off / WDR / BLC | |||
| Day&Night | Auto / Day / Night / Ext-in | |||
| White Balance Mode | Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext | |||
| Red Gain | 0 ~ 20 steps (Manual mode only) | |||
| Blue Gain | 0 ~ 20 steps (Manual mode only) | |||
| Chroma | 0 ~ 20 steps | |||
| HLC | Off / On / Night Only | |||
| DNR | Auto / Off / Low / Middle / High | |||
| Mirror | Off / H / V / H&V | |||
| Sharpness | 0 ~ 10 steps | |||
| ACE | Off / Low / Middle / High | |||
| Defog | Off / On(Auto / Manual) | |||
| Privacy Mask | Off / On ((Max.24 Areas) | |||
| Motion Detection | Off / On (Max.3 Areas) | |||
| DIS(Digital Image Stabilizer) | Off / On | |||
| Defect DET | Off / On | |||
| System | NTSC / PAL | |||
| Communication | ID : 1 ~ 255 | |||
| Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 bps | ||||
| Protocol : Pelco-P / Pelco-D / VISCA | ||||
| Language | English / Simplified Chinese / Traditional Chinese / Japanese | |||
| Power Input | 9V to 15V DC | |||
| Power Consumption | 500mA | |||
| Power Input | Connector | |||
| Video Output | Connector | |||
| Operating Temperature | -10ºC ~ +50ºC (Humidity : 0%RH ~ 90%RH) | |||
| Storage Temperature | -20ºC ~ +60ºC (Humidity : 0%RH ~ 90%RH) | |||
| External Dimension | 50(W) x 60(H) x 93(D) | |||
| Weight | 240g | |||
