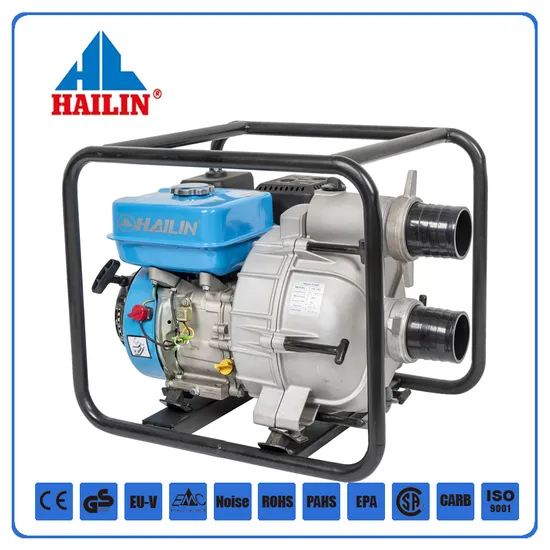

3 Inch Gasoline Water Pump, 80mm Petrol Pump, 2-4 Inch Water Pump
| US$125.00-150.00 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
HLS80
Max.Head
50-80m
Max.Capacity
>400 L/min
Driving Type
Motor
Impeller Number
Single-Stage Pump
Working Pressure
High Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Vertical Pump
Pump Casing Combined
Verticaljoint Surface Pump
Mounting Height
Suction Centrifugal
Impeller
Closed
Usage
Pump
Transport Package
Carton Box
Specification
265*250*280mm
Trademark
HAILIN
Origin
Fuzhou China
HS Code
8413910000
Production Capacity
10000piece/Month
Packaging & Delivery
Package Size
265.00cm * 250.00cm * 280.00cm
Package Gross Weight
38.000kg
Product Description
Product Description Semi-trash pumpPump body made by strengthen aluminum alloy, light and portable.
configure T-bolts for easy repairing.
High quality ceramic mechnical seal.
Optional pully with support for various application.
| Model | SP50/2 inch | SP80/3 inch | SP100/4 inch | ||||
| Inlet inch (mm) | 2"(50mm) | 3"(80mm) | 4"(100mm) | ||||
| Outlet inch (mm) | 2"(50mm) | 3"(80mm) | 4"(100mm) | ||||
| Max.head (m) | 27 | 27 | 30 | ||||
| Suction lift (m) | 8 | 8 | 8 | ||||
| Max.flow (L/min) | 700 | 1300 | 1700 | ||||
| Pump body | Aluminium alloy | Aluminium alloy | Aluminium alloy | ||||
| Impeller | Spheroidal Graphite Iron Casting | ||||||
| Mechanical seal | Silicon carbide | ||||||
| Driving power (KW) | 3.6 | 5.9 | 9.75 | ||||
| Working speed (rpm) | 3600 | 3600 | 3600 | ||||
| Dimension (mm) | 480*375*462 | 480*420*382 | 590*470*377 | ||||
| Weight (kg) | 22KG | 28KG | 40KG | ||||
Company Profile
Fujian Hailin Group was founded in 1999. Equiped with advanced production lines for casting, metal plate processing, maching and coating, Haiin is a modern enterprise that intergrates scientific research and development, production, sales and service, and import and export trade of water pump set and water pump, diesel generators. As one of the leading company in terms of company scale, technical strength and product quality within the industry, Hailin has gained its stable customers basis like HONDA, SAWAFUJI, HITACHI, and other international well-know companies with a series of related certification including ISO9001, EPAIII, EU-V, CE, EMC, ROHS.
