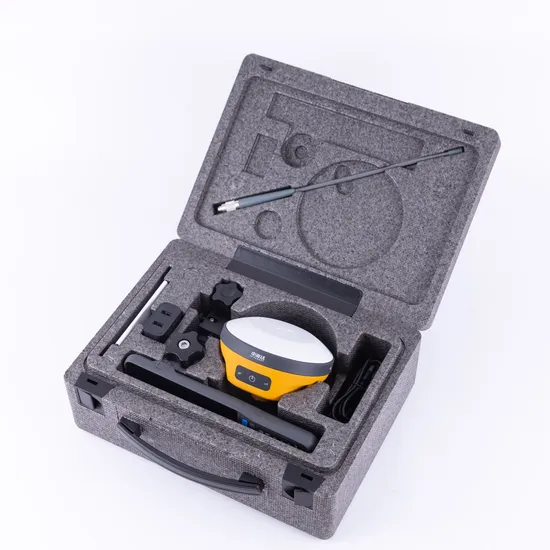

Hi-Target V200 Rtk GPS with High Performance Google GPS Gnss Receiver
Basic Info.
Model NO.
V200
Type
Geodesic Receiver
Channel
1408
GPS
L1 C/a,L2e,L2c,L5
Application
Land Surveying
Display
LCD
Transmitting Power
0.5W, 1W, 2W Adjustable
Internal Battery Life
Static 12 Hours
Transmitting Speed
9.6kbps, 19.2kbps
Warranty
12 Months
Software
Supports Multiple Languages
Size
35.5*15.5*39cm
Weight
7kg
Transport Package
Carton + Foam Packing
Specification
35.5*15.5*39cm 7kg
Trademark
Hi-target
Origin
China
HS Code
8526919090
Production Capacity
1000/Year
Packaging & Delivery
Package Size
35.50cm * 15.50cm * 30.00cm
Package Gross Weight
7.000kg
Product Description
Product DescriptionProduct Parameters
| Hi-target V200 gnss receiver specification | ||
| Channels | 1408 | |
| Satelite Tracked | GPS:L1/ L2/ L5/L2C | |
| BeiDou:B1/ B2/ B3/B1C/B2a | ||
| GLONASS: L1/L2/L3 | ||
| Galileo:E1/ E5 AltBOC/E5a/E5b/E6 | ||
| QZSS:L1/L2/L5/L6 | ||
| SBAS: L1/ L5 | ||
| IRNSS:L5 | ||
| Static and Fast static Gnss Surveying | ||
| Horizontal | ± (2.5+0.5× 10-6d) mm (D is the distance between measured points) | |
| Vertical | ± (5+0.5× 10-6d) mm (D is the distance between measured points) | |
| Post Processing Kinematic (PPK / Stop & Go ) GNSS Surveying | ||
| Horizontal | 8mm+1ppm RMS | |
| Vertical | 15mm+1ppm RMS | |
| Initialization time | Typically 10 min for base while 5 min for rover | |
| Initialization reliability | typically > 99.9% | |
| High-precision static GNSS Surveying | ||
| Horizontal | ±(8+1×10¯6D)mm (D is the distance between measured points) | |
| Vertical | :±(15+1×10¯6D)mm D is the distance between the measured points | |
| Code Differential GNSS Positionnig | ||
| Horizontal | ±0.25m + 1 ppm RMS | |
| Vertical | ±0.25m + 1 ppm RMS | |
| SBAS | ||
| Positioning accuracy | 0.50m Horizontal, 0.85m Vertical | |
| Real Time Kinematic (RTK) | ||
| Single Base | Horizonta:8mm+1ppm RMS | |
| Vertica:15mm+1ppm RMS | ||
| Network RTK | Horizonta:8mm+0.5ppm RMS | |
| Vertical:15mm+0.5ppm RMS | ||
| Initialization time:Typically <10s | ||
| Initialization reliability:Typically > 99.9% | ||
| Communication | ||
| Internal UHF Radio | Frequency: 410-470MHz | |
| Channels:116 (16 adjustable) | ||
| Transmitting power:0.5W,1W,2W | ||
| agreement:Hi-Target, Trimtalk450S, trimmarkIII, Transeot, SATEL-3AS,South,CHC,ect | ||
| Working Range:3-5km typical, 8-10km optimal | ||
| HI-TARGET External UHF Radio(Standard) | Frequency: 403-473MHz | |
| Transmitting speed:Up to 19.2Kbps | ||
| Channels:116 (16 adjustable) | ||
| 5W,10W,20W,30W adjustable | ||
| Working Range:8~10km typical,15~20km optimal | ||
| IMU(Tilt Survey) | Built-in high-precision inertial navigation, automatic attitude compensation, no correction, anti-magnetic interference, instant measurement at the point of arrival; | |
| Network Communication | ||
| Full band support for cellular mobile network(LTE, WCDMA, EDGE, GPRS, GSM) 2.4GHz WIFI, supports 802.11b/g/n. Network RTK (in CORS) range is 20-50km | ||
| Physical | ||
| Dimensions(W×H) | 132mm*67mm | |
| Weight | ≤0.83kg (includes battery) | |
| Shock and vibration | Designed to survive a 2m(9.84ft) natural fall onto concrete | |
| Water/Dustproof | IP67 | |
| Humidity | 100% condensing | |
| Operation temperature | -30ºC~+70ºC | |
| Storage temperature | -40ºC~+80ºC | |
| Bluetooth | 2.1+4.0 | |
| NFC | NFC flash even | |
| A serial port | RS232 serial port | |
| Control Panel | Physical button | |
| Energy consumption and working hours | ||
| Electrical | Power 6V to 28V DC external power input | |
| Power consumption≤4.2W | ||
| Built-in high-capacity lithium battery 6800mAh/7.4V, support USB PD3.0 super fast charging, charging time <3.5h | ||
| Internal Battery Life | Static more than 10 hours | |
| RTK rover (UHF/GPRS/3G)6-10 hours | ||
| RTK base more than 10 hours | ||
| Data Formats | ||
| 1Hz positioninng Output, up to 50Hz. CMR, RTCM2.X, RTCM3.0, RTCM3.1, RTCM3.2. Navigation outputs ASCII NMEA-0183, GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA,ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS, Binary: Trimble GSOF, NMEA2000 | ||
About payment Generally, we accept Online payment, Trade Assurance, Irrevocable LC at sight, Advance T/T, Escrow and West union.If you prefer other payment terms, please let us know.
