Metal Hydraulic CNC Surface Grinder Myk4080 CNC Surface Grinder Machine for Hot Sale

Product Description

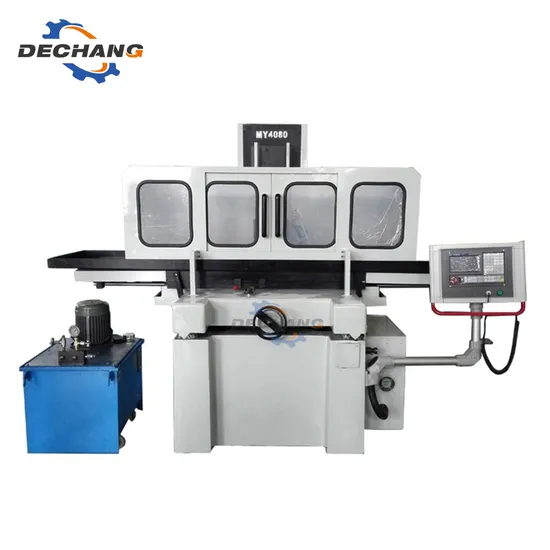

Metal Hydraulic CNC Surface Grinder MYK4080 cnc surface grinder machine for hot sale
Product Description
The main performance characteristics:
1. The structure of the machine tool is reasonable, large machine tool bed weight, excellent stability, using the cross saddle structure, good rigidity, has the advantages of beautiful appearance and convenient operation.
2. Horizontal movement of working table (before and after) by servo motor drive, precision ball screw drive, to ensure accuracy, accurate positioning, in accordance with the procedures of automatic feeding, automatically and fast forward and rewind functions.
3. Working table vertical (or so) movement, the use of a V a flat guide, and the artificial precision shovel flowers, the use of hydraulic transmission, stable operation.
4. The grinding head up and down movement driven by a servo motor, which can achieve precise positioning accuracy, automatic feed and fast lifting function.
5. The Guangzhou CNC system GSK96 and two axis NC, according to the actual processing conditions free programming, with pulse wheel, X and Z axis feed can be free to switch freely.
6. The characteristics of the CNC grinding machine is realize three-axis full automation, the second axis plane grinder while reducing the labor intensity of the operator, but also a single stand-alone operation, three axis automatic surface grinder, a worker can be 3 - 5 machines are operating at the same time, greatly reduce the labor cost, especially when the batch processing, the benefit is more remarkable.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Product main technical parameters:

Specifications				Units	MYK4080
workbench	Worktable size (L * W)			mm	800x400
	Max. travel of table			mm	900x500
	Table T slot (slot number x slot width)			mm	3x14
Grinding head	Special grinding wheel size (o. d * w * i. d.)			mm	Ø350×40×Ø127
	Distance spindle center line to working table			mm	600
	Grinding wheel speed			r/min	1450
The amount of feed	Table longitudinal (left and right) speed			m/min	3-25
	Table transverse (front and rear) feed handwheel feed			m/min	0.5-15
	Grinding head(up and down)automatic feed			mm	0.005-0.05
	Grinding head up and down is fast lifting speed (approximate value)			m/min	0.6
Hydraulic system	Hydraulic motor			KW	2.2
	working pressure			MPa	4
	Fuel tank capacity			L	100
	Maximum flow rate			L/min	20
Motor power	Spindle motor			kw	4
	Cooling motor			W	125
	Elevator servo motor			kw	1.0
	Front and rear servo motor			kw	1.0
working accuracy		The process surface of the base level of the parallel degree		mm	300:0.005
		Surface roughness		μm	Ra0.32
Machine weight			Net weight	kg	3000
			Gross weight	kg	3200
Suction cup specification				mm	400x800
External size (L * w * h)				mm	2550x2000x2100
