Small CNC Machining Center 3 Axis Vertical CNC Milling Machine Drilling Tapping Center for Metal

Product Description

Detailed Photos
Small VMC CNC Drilling Tapping Milling Machine Automatic for Metal (TC-640/T6//T600)

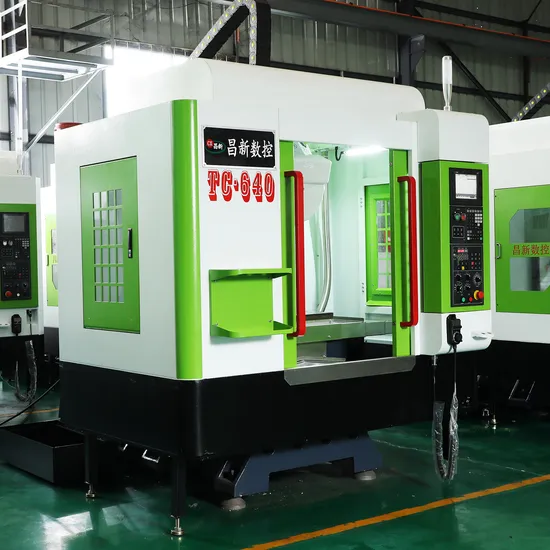

TC-640 vertical drilling and tapping center is a high-speed drilling and tapping center machine tool specially launched for the parts processing industry. It can meet high-speed drilling and tapping and high-speed milling, especially for IT and automotive parts processing industries. The machine has good rigidity, symmetrical structure, fast dynamic response, high precision, good stability and convenient and flexible operation. It can be used for vertical milling, drilling, expanding, boring, tapping and other processing procedures, and has a wide range of uses.

Good materials and good machine tools:
CNC drilling tapping center T6 Machine tool base, column, headstock, cross slide, worktable and other foundations are all cast by high-strength cast iron resin sand process, and the internal rib structure is stable. The matching ensures the high rigidity and long-term stability of the basic parts. The wide and solid machine base, the A-box cavity column, the widened and elongated integrated saddle, and the full-support load design achieve the best rigidity and stability of the overall bed.
High-speed and high-precision mechanical spindle
A: The spindle motor imported from Taiwan is adopted, the maximum power is 5.5KW, and the speed is 18000rpm;
B: Adopt Taiwan high-speed precision spindle BT30 15000-24000rpm;
C: Through the direct connection between the spindle and the spindle motor, the transmission efficiency is greatly improved and the transmission noise is reduced;
D: Both the spindle and the motor use IRD dynamic balance correction to ensure that the resonance phenomenon is avoided when the spindle is running at high speed, and the best processing finish and precision are ensured.
Excellent performance, high precision, and highly stable operation:
X, Y, Z axis adopts Taiwan Hiwin or PMI high-precision ball screw and linear guide, the feed motor adopts Japan Yaskawa absolute value servo motor, the dynamic and static friction force is small, the sensitivity is high, the high-speed vibration is small, and the low-speed has no creep. , High positioning accuracy, excellent servo performance, high precision, and highly stable operation.
High-speed servo tool magazine :
Taiwan clamping arm type (flying saucer type 21T) 21 BT30 tool magazines are very stable and efficient, with accurate positioning, the tool head is near the first tool, the spindle adopts servo linkage tool change, easy to maintain, fast tool exchange, tool-to-tool change tool time 0.8 seconds.
Beautiful, safe and leak proof :
The machine tool is equipped with a fully enclosed protective cover, which is beautiful, safe and leak-proof; the chip removal from front to back is highly inclined, and the large-flow automatic chip flushing device is simple, environmentally friendly and practical. Rear-mounted freestanding chip flutes make it easy to add cutting fluid and recover chips.
New high-speed bus system:
The standard configuration of the CNC control system of the drilling and tapping center TC-640 adopts the latest generation high-speed bus system 22MA from Taiwan, and the CNC system can be configured with a fourth axis interface to achieve complex four-axis linkage processing requirements. Japan's Mitsubishi or Japan's Fanuc system can also be configured according to customer requirements.
Centralized automatic oil injection system:
The guide screw of the drilling and tapping center T6 adopts a central centralized automatic oil injection system, which regularly and quantitatively supplies the oil required for each part that needs to be lubricated to ensure uniform lubrication of all points, effectively reducing frictional resistance, and ensuring the service life of the ball screw and guide rail. It also reduces the waste of lubricating oil.
Safe electrical box, free from external interference:
The wiring of the T6 electrical box of the drilling and tapping center is in compliance with safety regulations, and the large current and weak current are separated to ensure that the control system is not disturbed by external interference.
Quality Control
Horizontal and vertical testing
To insure the accuracy of the machine, we will do the horizontal and vertical testing . All joint surface of the machine body are manually scraped to ensure geometric accuracy and rigidity.

Reishaw laser interferometer inspection
Detecting the screw pitch error and the straightness of the linear guide rail in the XX and YY directions. Meanwhile, test the actual positioning accuracy and repeat positioning accuracy of the machine.
Running test
In order to ensure quality , the machine will go through other quality control procedures, such as spindle vibration , noise inspection, 72-hour full function running test.
Specifications:

Features:
* cast iron high strength body * Taiwan Syntec, Japan MITSUBISHI, Fanuc, Germany Siemens nc system * Taiwan spindle BT30 direct drive * Hiwin/PMI ball screw * NSK bearing * HIwin linear guide rails * The cutting of the cooling system * Full enclosed guard * Automatic lubricating system * Mechanical abnormal alarm trichromatic lamp * BT30 clip arm type servo tool magazine (tool changing 0.8 sec)
Specifications:
Table	Size	mm	700*420
	Travel of 3 axis(X/Y/Z)	mm	600/400/300
	Max table load	Kg	350
T-slot	Number*width*space	mm	3*18T*100
Spindle (direct drive)	Spindle taper		BT30
	Spindle center to column	mm	450
	Spindle nose to table	mm	135-435
	Max spindle speed	Rpm	20000
	Spindle Motor power	Kw	5.5
Accyracy	Positioning accuracy	mm	±0.005/300
	Repeatability	mm	±0.003/300
Axis motor	Power of X/Y/Z	Kw	1.3/1.3/3.0
Feeding Speed	Rapid feed of X/Y/Z	mm/min	48000
	Cutting feed of X/Y/Z	mm/min	20000
Parameters	Weight	Kg	4000
	Dimension(L*W*H)	mm	T
	Power	V	380
Bearing	Japan NSK or German FAG optional
Linear guide rail and ball screw	Taiwan Hiwin
Coupling	German BK3 SW*J
Main electrical accessories	Schneider, Merlin Gerin
Circuit breakers and relays	Schneider, Merlin Gerin
Working LED lamp	Taiwan
Hand control electronic hand wheel	Taiwan
Tool Magazine	Taiwan clip arm type servo tool magazine with 21 tools capacity
Control System	Taiwan Syntec, Japan Mitsubishi, Japan Fanu, Germany Siemens optional
Motor	Syntec /Mitsubishi /Fanuc/Siemens Servo Motor
Accessory	1. Tool box (1 set) 2. Tool Holder(2 PCS) 3. Vise and Lock knife seat (1 set) 4. High pressure spray gun(1 PCS) 5. Chip conveyor 6. Oil cooling station 7. Collets (4 PCS) 8. Hand Wheel(1 PCS) 9. Machine operating manual 10. Operation and programming manual 11. Servo Motor and Controller Manual

Machined Samples:
FAQ
Q1: How can I choose the most suitable machines ?
A1: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .Q2: What's your main products of your company?A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and soon.Q3: What's the Payment Terms ?A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.Q4: What's the MOQ?A4: 1setQ5: What's the warranty?A5: One year.
