Disc Chipper for MDF, Particle Board, Wood, Log, Timber, Pulp and Paper

Product Description

Product Description

The series of disc chipper machine are suitable for wood chips preparation in the paper pulp, wood-based panel industries, as well as the chip production bases, by which logs and small wood are cut into high quality chips with even length, smooth chip cut and uniform chip thickness. It is also possible for the chipping of branches and twigs, as well as planks, etc. The chipper consists of frame, knife disc, feed and discharge spout, hood and electrical control system, etc. The chips length is adjustable in accordance with the requirement of the paper pulp, particle board and fiberboard industries. Compact in structure, easy for operation and maintenance, high capacity, excellent quality of chips, as well as low energy consumption, all these features contributes to the fact that it is ideal equipment for chip production for various applications.
Main compose
The disc chipper is a sophisticated piece of machinery designed for efficient wood chipping, and it is composed of several critical components that work in unison to achieve optimal performance. At the core of the disc chipper is the robust frame, which serves as the foundation and provides structural integrity to the entire machine. The knife disc is the central component where the actual chipping process takes place; it is equipped with sharp knives that rotate at high speeds to slice the wood into uniform chips. The feed spout is responsible for directing the wood material into the chipper, ensuring a smooth and continuous flow of material into the knife disc area. The discharge spout, on the other hand, collects and expels the produced chips from the machine, maintaining an efficient output process. The hood encloses the working parts, providing safety to the operators and protection to the machinery from external elements. Lastly, the electrical control system is the brain of the disc chipper, managing the operation of the machine, ensuring that all components function in harmony and that the chipping process is both efficient and safe.
Main characteristics
Through decades of relentless innovation, our disc chippers have evolved into industry leaders, boasting a compact design, user-friendly operation, and high capacity. They are renowned for producing high-quality chips with minimal consumption, making them the ideal choice for manufacturers seeking to produce superior quality wood chips. Our comprehensive range of disc chippers is capable of handling output capacities up to an impressive 110 m³/hour. Furthermore, we offer complete chip production lines centered around our disc chippers, ensuring a seamless and efficient production process. With three decades of continuous innovation under our belt, we are confident in our ability to deliver high-quality chips that meet and exceed your expectations.
Economic and technical data

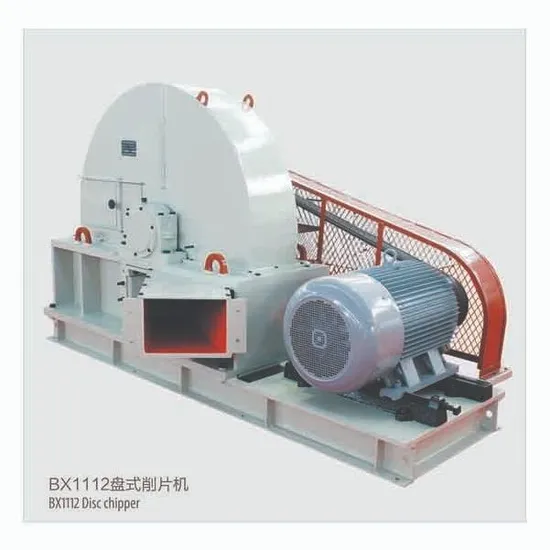

Techinical data/Model	BX116A	BX1710	BX6110D	BX1112	BX1112-1	BX1212	BX1212A	BX1216	BX1216-1
Knife disc diameter/ mm	630	950	950	1220	1220	1220	1220	1600	1600
Qty of knives/ pcs	3	6	6	4	4	6	6	6	6
Chip length/ mm	15-25	12-35	12-35	20-35	20-35	20-35	20-35	20-35	20-35
Type of feeding	Horizontal	Incline	Incline	Horizontal	Horizontal	Incline	incline	Horizontal	Horizontal
Feed opening dimension/ mm	130x150	207x190	207x190	400x275	400x275	300x300	300x300	545x383	545x383
Capacity/ m³/h	2-3	5.5-8	15-20	15-20	15-20	15-20	15-20	25-45	25-45
Power of main motor	22	75	75	110	110	90	110	220-250	220
Max.log diameter	Ф100	Ф100	Ф100	Ф200	Ф200	Ф160	Ф200	Ф300	Ф300
Type of discharge	upper	upper	upper	upper	Bottom	Upper	Bottom	Upper	Bottom
Total weight/kg	827	2080	2406	4585	4256	4256	4585	8732	8433
Overall dimension(L*W*H)/ mm	2340x1200x1845	2550x1600x1650	3983x2556x1940	3000x1570x1614	3000x1400x1614	3000x1400x1614	3100x1340x2093	3756x1855x2093	3756x1855x2020
Remarks	Diesel engine available	Right feeding	Right feeding	Right feeding	Right feeding	Re-chip	rght feeding	Right feeding	Right feeding

Techinical data/Model	BX1216-2	BX1216-3	BX1216-4	BX1220	BX1520/8	BX1225	BX1227
Knife disc diameter/ mm	1600	1600	1600	2060	2330	2490	2650
Qty of knives/ pcs	6	6	6	8	8	8	8
Chip length/ mm	20-35	20-35	20-35	20-35	20-30	20-35	20-35
Type of feeding	Horizontal	Horizontal	Incline	Horizontal	Horizontal	Horizontal	Horizontal
Feed opening dimension/ mm	545x383	545x383	545x383	584x560	590x59	650x615	584x600
Capacity/ m³/h	25-45	25-45	25-45	110	130	160	100-130
Power of main motor	220-25	220	220	500	160x4	315x2	2x280
Max.log diameter	Ф300	Ф300	Ф300	Ф500	Ф450	Ф450	Ф500
Type of discharge	Upper	Bottom	Bottom	Bottom	Bottom	Bottom	Bottom
Total weight/kg	8732	8732	8732	29140	17000	19000	32450
Overall dimension(L*W*H)/ mm	3756x1855x2093	3756x1855x2093	3756x1855x2093	6410x3963x3025	4400x3485x5380	5845x2580x3185	5745x4785x2845
Remarks	left feeding	left feeding	Incline feeding	Right feeding	Right feeding	Right feeding	Right feeding
