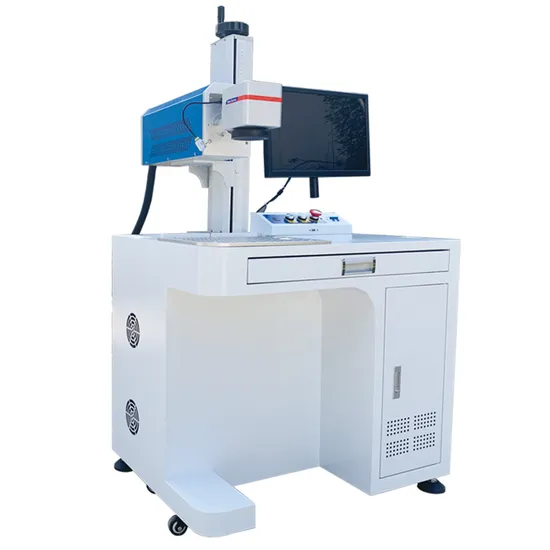

20W/30W Cabinet Fiber Laser Marker Metal Stainless Iron Laser Marking Machine

Product Description

20W/30W CabinetFiberLaserMarker Metal Stainless IronLaserMarkingMachine
Product Description

Detailed Photos
Galvo head
Famous brand Sino-galvo, adopting new technology, digital signal, high precision and speed.
F-theta lens
Singapore lens, 1064nm f=254nm, highest light transmission make sure no power reduction.
The default match is 110x110mm, optional 150x150mm, 200x200mm, 300x300mm, etc.
Laser Source
Wuhan Raycus brand fiber laser generator, with a normal working life of 100,000 hours. You can also choose MAX/JPT/IPG.
JCZ control board
EZCAD genuine products, user-friendly interface, fuctional diversity, high stability, high precison. Each board has its own number to ensure that it can be inquired in the origional factory. Refuse to fake.
Working platform
Aluminium working paltform and imported precise beeline device.
Flexibility mesa have multiple screw holes, convenient and custom installation, special fixture industry platform.
Marking ruler and rotating handle
Enables customers to precisely position for fast angraving.
Adapting to different products height.
2D/3D table and extended platform for option
50mm/80mm rotary for your option.
Also can customize according to your needs.
Product Parameters

Machine model	OM-F20A	OM-F30A	OM-F50A	OM-F100A
Wave length of laser	1064nm
Laser repetition frequency	20kHz~100kHz
Laser power	20W	30W	50W	100W
Marking scope	110*110 /150*150/175*175/200*200mm/300*300/400*400mm
Laser sources	Raycus/Max/JPT
Laser Head	Scanning head
The minimum focus facula diameter	20μm
Minimal character	0.01mm
Marking speed	7000mm/s
Repeated accuracy	0.0025mm
Cooling ways	Air Cooling
Power supply	110V/220V/, 50/60Hz
Process Material	All kinds of metal and part of Non-metal Materials
Support format	PLT, BMP, DXF, JPG, TIF, AI etc
Package	Standard export wood case

Application
Our Fiber Laser Marking Machine is specially engineered to work seamlessly with both metal and select non-metal materials.
Ideal for marking a variety of metals including gold, silver, stainless steel, brass, aluminum, steel, and iron.
Equally effective on non-metal materials such as ABS, nylon, PES, PVC, and Makrolon.

Packaging & Shipping
After Sales Service
1) 3 years for whole machine, 2 years for fiber source
2) Lifelong technical support online or by email
3) 24 hours online service to help you use our machine well
4) Offer oversea service for training,installing,operating if necessary
5) Offer training at our factory for free(you could visit us and learn)
6) CE and FDA certificate, the machines are produced according to standard
