Medium Temperature Mini Concentrating Solar Power Thermal Collector with Solar Tracker for College Education
| US$4,990.00-5,390.00 | 2 Sets (MOQ) |
Basic Info.
Model NO.
1m*2m
Certification
API, ISO, CB, CE
Concentrating
Yes
Working Temperature Range
High Temperature
Type
Pressurized
Application
Water Heater, Solar Thermal, Air Conditioning System
Pipe Material
Stainless Steel
Transport Package
Wooden Box, Steel Structure
Specification
1m*2m
Trademark
MLSUN
Origin
China
Production Capacity
500000m2/Year
Packaging & Delivery
Package Size
220.00cm * 120.00cm * 120.00cm
Package Gross Weight
220.000kg
Product Description

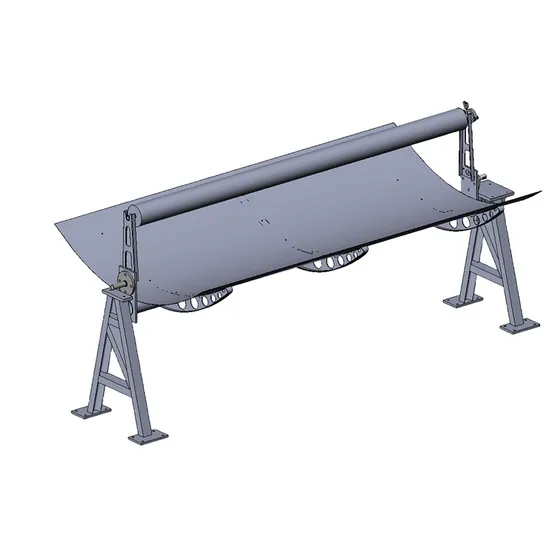

We manufacture Parabolic Troughs for Concentrated Solar Power plants. There are 3 regular models:Parabolic Trough 1m×2m, Parabolic Trough 2.55m×6m, Parabolic Trough 5.77m×12m.
Parabolic Trough 1m×2m is used for university teaching or laboratory research.
Parabolic Trough 2.55m×6m is used for drying, hot water, room heating, especially generating steam.
Parabolic Trough 5.77m×12m is used for generating electricity.
| No. | Parabolic Trough Concentrator | PTC1m*2m | PTC2.55m*6m | PTC5.77m*12m |
| 1 | Trough width | 1 m | 2.55 m | 5.77 m |
| 2 | Trough length | 2 m | 6 m | 12 m |
| 3 | Aperture area | 2 sqm | 15.3 sqm | 69.24 sqm |
| 4 | Tracking accuracy | 0.1° | 0.1° | 0.1° |
| 5 | Receiver tube (glass-to-metal) | 1 piece | 3 pieces | 3 pieces |
| 6 | Receiver tube material | SUS304 stainless steel | SUS304 stainless steel | SS321/316L stainless steel |
| 7 | Working temperature | 150ºC | 300ºC | 400ºC |
| 8 | Working pressure | 40 bar | 40 bar | 40 bar |
| 9 | Driving system | 1 set | 1 set | 1 set |
| 10 | Sun-tracking and control system | 1 set | 1 set | 1 set |
