High End Double Screw Air Bubble Film Wrap Sheet Roll Making Machine

Product Description

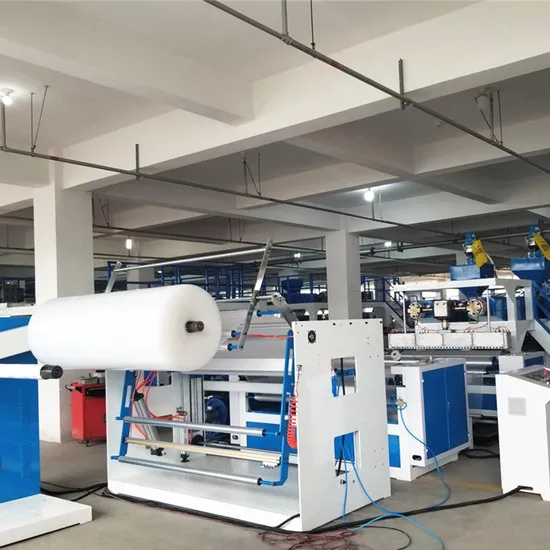

1600mm 2-layer Double screws PE air bubble film machine (2 extruders)
Product Introduction:
1. Main parts: 2 Extruder, Control Panel, Bubble forming section, Winder;
2. To produce 2 layers air bubble film (bubble layer + base layer);
3. Each layer is under individually control, can have different thickness & material formulation and color;
4. Film width from 1,000mm to 3,000mm;
5. Screw L/D ratio is 1:30, it adopts special mixing function and high plasticizing capacity design, with good plasticization, good mixing effect and high output;
6. The bubble forming cylinder adopts special internal circulation chilled water design to ensure perfect bubble forming effect under high speed operation.
Parameters

Model number	WT-2L- 1200	WT-2L-1600	WT-2L- 2000	WT-2L- 2600
Bubble film width(mm)	1200	1600	2000	2600
Material	LDPE/LLDPE	LDPE/LLDPE	LDPE/LLDPE	LDPE/LLDPE
Line speed(m/hr)	600-2100	600-2100	600-2100	600-2100
Capacity(kg/hr)	80-100	100-140	110-158	120-180
Thickness(g/m²)	38-300	38-300	40-300	45-300
Main screw diameter(mm)	Φ55	Φ75	Φ80	Φ90
Sub screw diameter(mm)	Φ55	Φ50	Φ65	Φ75
Heating power(kw)	55	65	72	82
Operation(kw)	36	42	50	65
Installation power(kw)	100	136	159	202
DimensionL×W×H(m)	10×5.0×2.5	10×6.0×2.5	11×6.5×2.5	12×7.5×2.5
weighr(kg)	6000	6500	7500	8500

Mechanical Transmission Diagram & Bubble Structure:
WENZHOU WANDUN MACHINERY CO.,LTD. is located in the south of Zhejiang. We are a professional producer of PE air bubble film making machines, film blowing machines, bag making machines, stretch film machines, plastic laminating machines, printing machines, plastic recycling machines, and so on. We have a good team for the R&D, design and sale. Our engineers have more than ten years of experience in plastic industry. We can design the machines according to our clients' requirements. Our main markets are South America, Africa, the Middle East, the EU and Southeast Asia. More than 98% of our products are exported to overseas markets, such as Greece, Croatia, America, Columbia, Dominican Republic, Nigeria, Ethiopia, South Africa, Saudi Arab, Israel, etc. We also provide good after-sales services immediately. The quality and good service are our business principle. You are welcome to visit our factory to have business discussion. We wish we can have great business cooperation together. Q1. What is your terms of packing?
A: The normal package is making a pallet to protect the machine at the bottom and wrap the whole machine with plastic film packing.
If export to EUROPEAN countries,the wooden box will be fumigated. we use PE film for packing or pack it according to customers
special request.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the
quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
