Commercial Multifunctional Dog Food Extruder Dry Method Dog Food Production Line

Product Description

Pet food production line, also known as pet food processing production line, is a production equipment specially used to produce food for pets such as dogs, cats, fish, and birds. It is mainly composed of equipment such as mixers, crushers, granulators, dryers, dehydrators, etc., and can produce pet food of various shapes, tastes, nutrition, and flavors.
Working Principle of Pet Food Production Line
The pet food production line mainly consists of the following processes: raw material processing, mixing, extrusion, drying, and packaging. First, raw materials such as grains, meat, and vegetables are processed and evenly mixed. Then, the mixed material is conveyed to the extruder, where it is heated and pressurized to produce puffed pet food. After that, the puffed pet food is dried by a dryer to remove moisture. Finally, the dried pet food is packaged by a packaging machine.

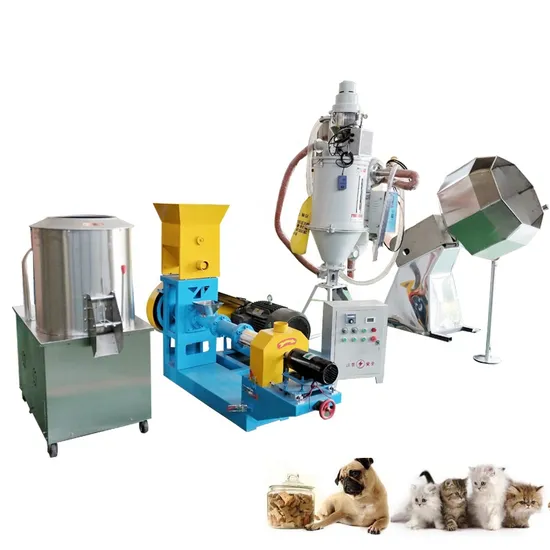

Machine Composition of Dog Food Production Line
The dog food production line mainly consists of the following machines: raw material crusher, raw material mixer, screw conveyor, extruder, airflow conveyor, dryer, cooler, packaging machine. Each machine completes a specific function, and all machines work together to produce high-quality dog food.
Advantages of pet feed production line
1. Safety and hygiene: high-quality production equipment and various raw materials are used to ensure hygiene and safety, and effectively protect the health of pets
2. Accurate formula: the production line has advanced technology, making the process of pet feed production more automated, and the proportion of nutrients can be more accurately controlled.
3. Diversity: the production line can launch pet feed with various flavors and special effects according to market demand, which can meet the tastes and needs of different pets.
4. Improve production efficiency: mechanized production improves production efficiency and saves labor costs.
5. Energy saving and environmental protection: the production line adopts new low-energy consumption equipment, which can effectively save energy and avoid environmental pollution.
Application scope of dog feed extruder production line
The dog food extruder production line is mainly used for the production of extruded dog food. The production line can produce dog food of various shapes, such as bone-shaped, round, and bar-shaped dog food. The dog food extruder production line is widely used in pet food processing plants, pet food stores and supermarkets.
Fish Feed Pellet Making Machine:

Model	WSJY-40	WSJY- 50	WSJY-60	WSJY-70	WSJY-80	WSJY-90	WSJY-120	WSJY-135	WSJY-160	WSJY-200
Capacity --- kg/h	30-40	60-80	120-150	180-250	300-350	400-450	500-700	800-1000	1200-1500	1800-2000
Pelleting Diameter--- mm	1-8	1-8	1 -10	1-10	1 -10	1 -10	1-10	1 -12	1-12	1-12
Motor Power--- kw	5	7.5	15	18.5	22	37	55	75	90	132
Cutting Power--- w	400	400	400	400	1100	1500	2200	2200	2200	3000
Screw Rod Diameter-- mm	40	50	60	70	80	90	120	135	160	200
Cooking degree	>95%	>95%	>95%	>95%	>95%	>95%	>95%	>95%	>95%	>95%
Size(m)	1.4*1.03*1.1	1.45*1.08*1.25	1.46*1.14*1.25	1.6*1.4*1.35	1.6*1.4*1.35	2.1*1.45*1.35	2.1*1.45*1.35	2.55*2.05*1.65	2.9*2.65*1.8	3*2.85*1.9
Weight(kg)	260	350	355	580	700	950	1700	1900	3600	4300

Operation steps of pet pellet feed production line
1. Put various raw materials into the mixer according to the formula ratio and mix and stir to make a mixture.
2. Put the mixture into the granulator to make a certain particle size, which depends on different specifications and pet sizes.
3. Put the granulated material into the dryer, and the pet food made by drying can be stored and sold.
4. Put the dried pet food into the dehydrator for dehydration to ensure that the dryness of the product meets the requirements.
5. Package the product and the finished product is ready for sale.
Common problems and solutions during the use of the production line
1. The extruder is blocked, causing the entire production line to fail.
Solution: Clean the extruder thoroughly and replace worn parts regularly.
2. The dryer cannot work, resulting in unqualified products.
Solution: Check the power supply and air circulation system of the dryer, and replace the heating element and fan if necessary.
3. The packaging machine cannot seal the bag, resulting in product leakage.
Solution: Adjust the temperature and pressure of the packaging machine and replace the sealing tape.
How do we ensure the quality of machine products?
Our company's pet food production line uses high-quality electrical components from well-known domestic and foreign brands, which makes the service life of the production line equipment longer. At the same time, we also have a professional technical team to develop, manufacture, and assemble lines. Every piece of equipment produced has been strictly tested to ensure that the quality of all machines and equipment is stable and reliable. And it can guarantee the efficacy and stability of all equipment. At the same time, we also design highly customized solutions for users to meet their needs to the greatest extent.
What are the pre-sales and after-sales services of our factory?
Pre-sales service: We provide customized solutions according to customer needs, such as product selection, process design, raw material analysis, etc. We also provide factory visits and machine demonstrations to help customers better understand our products.
After-sales service: We provide customers with one-year warranty and lifetime maintenance services for all machine products. We also have a professional after-sales team to provide customers with online and on-site technical support.
What is the difference between our company's machines and others?
1. Use advanced components: We use high-quality electrical components to ensure that our company's machines are more durable and more efficient.
2. Have innovative technical advantages: We have a professional R&D team dedicated to developing machines and equipment that are more suitable for market needs.
3. Highly customized: We take the needs of our customers into full consideration and provide highly customized production line solutions based on their different needs.
