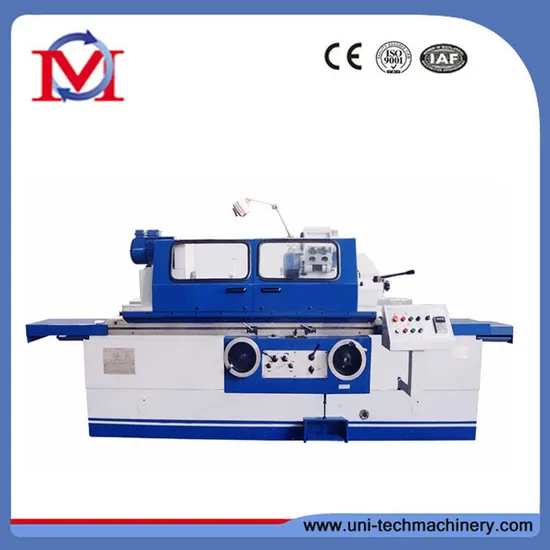

Universal Cylindrical Grinding Machine for Sale (M1432/3000)

Product Description

Product Description

When conical grinding, the table can be swivelled to either side and exactly positioned by using the scale
Oil film between bearing and spindle keeps vibrations at a minimum level, hence achieving outstanding results and top accuracy
Precisely balanced spindle head and solid grinding head guarantee extraordinary results at any type of operation
Strong reinforcements and solidly designed panels of the machine base makes it resistant to temperature fluctuations and deformations
Spindle is mounted from both sides and features adjustable sliding bearings consisting of three segments
Hydrodynamic bearing of spindle, therefore no contact between spindle and bearing
Longitudinal table feed can be set to automatic mode - hydraulically driven or manual mode - by handwheel
Stepless feed adjustments with the option of a programmable hold time at the end of each table movement
Hydraulic or manual repositioning of grinding spindle stock
Guideways in x- and y-axis are precisely constructed and hand-polished
Longitudinal table guide and cross guide of grinding headstock each feature a V-guide and flat guide

Product Parameters

MAIN SPECIFICATION		UNIT	M1432
General capacity
Distance between centers		mm	1000, 1500, 2000, 3000
Center height		mm	180
Dia.Ground (O.D)		mm	8-320
Dia.Ground (I.D)		mm	30-100
Max.length ground (O.D)		mm	1000, 1500, 2000, 3000
Max.length ground (I.D)		mm	125
Max.weight of work piece		kg	150
Workhead
Swiveling angle		/	+90°
Center taper (MT)		MT	4
Spindle speed		r/min	50HZ:25-220 Stepless
Wheelhead
Wheel spindle speed		r/min	1670
Wheelhead rapid travel		mm	50
Max.travel		mm	246
Swiveling angel		/	±30°
Hand feed per.rev		mm	rough:2 fine:0.5
Hand feed per.gra		mm	rought:0.01 fine:0.0025
Wheel size (ODxWxID)		mm	400x50x203
Periphearal velocity		m/s	35
Internal grinding device
Spindle speed		r/min	10000/15000
Dimension of wheel		mm	max:50x25x13, min:17x20x6
Table
Hand feed per.rev		mm	6
Max.swiveling angle of table	Clockwise	/	3°(1000, 1500), 2°(2000, 3000)
	Anticlockwise	/	7°(1000), 6°(1500), 5°(2000), 3°(3000)
Longitudinal speed range of table		m/min	0.1-4
Tailstock
Center taper (MT)		MT	4
Quil travel		mm	30
Motor
Wheelhead motor power		kw	5.5
Internal grinding		kw	1.1
Workhead motor power		kw	1.5
Machine
Gross weight		kg	5.3(1000), 6.1(1500), 7.9(2000), 9.9(3000)
Packing dimension		cm	322x200x205, 422x200x205, 540x200x205, 739x200x205

Standard accessories:
Grinding wheel
Grinding wheel flange
3-jaw chuck diam. 200 mm
Open steady rest
Internal grinding spindle
working light
Balancing arbor
Extent arbor
Alloy enter
Measuring bridge plate
Coolant tank
Table swiveling wrench
Dog arm
Dog pole
Seal rings
Wheel extractor
High speed strap
Multiple v-belt
Internal wheel wedge
Optional accessories:
Close steady rest
Radial dresser
End dresser
Balancing stand
Digital readout Detailed Photos

Packaging & Shipping

PALLET
