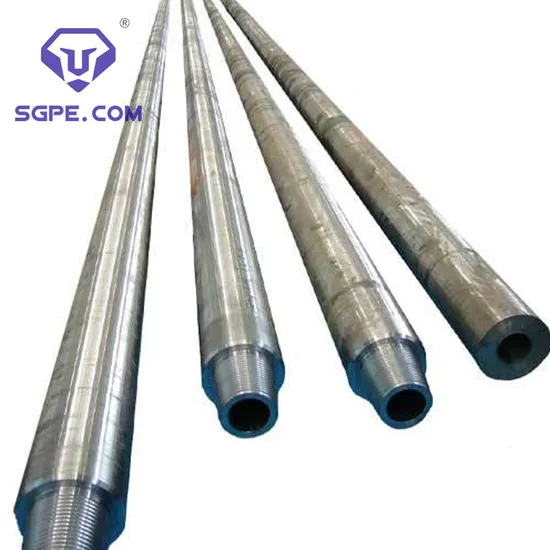

API Spec7 Non Magnetic Flex Drill Collar for for Oil Well Drilling
Basic Info.
Model NO.
API
Manufacturing Process
CNC Milling
Surface Treatment
Spray-Paint
Operation Pressure
Atmospheric Pressure
Material
Alloy
Size
2.3/8",2.7/8", 3.1/2", 4", 4.1/2", 5", 5 1/2 Inch
Diameter
60.32mm-139.7mm
Transport Package
Export Packing
Trademark
GPE
Origin
China
HS Code
8431
Production Capacity
150000
Packaging & Delivery
Package Size
500.00cm * 500.00cm * 300.00cm
Package Gross Weight
500.000kg
Product Description
Good Price API Oilfield Lifting Sub Lift Sub Drill Collar for Oil Well Drilling SaleThe drill collars are made of modified AISI 4145H chromium molybdenum alloy steel. These drill collar bars are full-length heat treated and water quenched to obtain ASTM A-370 mechanical properties. Full mechanical and chemical mill test certifications are supplied with all drill collars. These mill test certifications guarantee a hardness range of 285 to 341 BHN and an impact value of 40 ft.-lbs. at room temperature one inch below the surface.To ensure close tolerance bores, all drill collar bars are trepanned then drifted to API specifications. Bar surface finish is "as rolled" which is original mill finish.
Welcome to consult, we will provide the most comprehensive technical support!
| Connections | ODmm | IDmm | Lengthmm | |
| NC23-31 | 79.4 | 31.8 | 9150 | |
| NC26-35 | 88.9 | 38.1 | 9150 | |
| NC31-41 | 104.8 | 50.8 | 9150 or 9450 | |
| NC35-47 | 120.7 | 50.8 | 915 or 9450 | |
| NC38-50 | 127 | 57.2 | 9150 or 9450 | |
| NC44-60 | 152.4 | 57.2 | 9150 or 9450 | |
| NC44-60 | 152.4 | 71.4 | 9150 or 9450 | |
| NC44-62 | 158.8 | 57.2 | 9150 or 9450 | |
| NC46-62 | 158.8 | 71.4 | 9150 or 9450 | |
| NC46-65 | 165.1 | 57.2 | 9150 or 9450 | |
| NC46-65 | 165.1 | 71.4 | 9150 or 9450 | |
| NC46-67 | 171.4 | 57.2 | 9150 or 9450 | |
| NC50-67 | 171.4 | 71.4 | 9150 or 9450 | |
| NC50-70 | 177.8 | 57.2 | 9150 or 9450 | |
| NC50-70 | 177.8 | 71.4 | 9150 or 9450 | |
| NC50-72 | 184.2 | 71.4 | 9150 or 9450 | |
| NC56-77 | 196.8 | 71.4 | 9150 or 9450 | |
| NC56-80 | 203.2 | 71.4 | 9150 or 9450 | |
| 6 5/8REG | 209.6 | 71.4 | 9150 or 9450 | |
| NC61-90 | 228.6 | 71.4 | 9150 or 9450 | |
| 7 5/8REG | 241.3 | 76.2 | 9150 or 9450 | |
| NC70-97 | 247.6 | 76.2 | 9150 or 9450 | |
| NC70-100 | 254 | 76.2 | 9150 or 9450 | |
| 8 5/8REG | 279.4 | 76.2 | 9150 or 9450 | |
