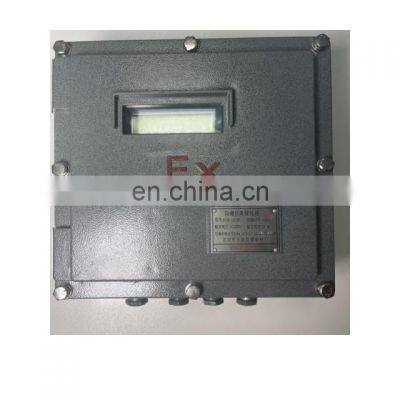

Taijia fixed non-contact clamp-on ultrasonic flow meter Explosion-proof ultrasonic heat flow meter

Product Description

Product Description
Product DescriptionTDS-100F2 ultrasonic flowmeter is widely used in industrial field in a variety of liquid online flow measurement.Ultrasonic flow meter is a non-contact instrument,Not only can the media flow measurementwithlarge diameter can also be used to measure is not easy to contact and observation of medium.Its measuring accuracy is high, the interference is almost not affected by various parameters of the measured medium.In particular, can solve the strong corrosive, non conductivity, radiation and flammable and explosive medium flow measurementSpecificationMeasurement accuracyBetter than 1%, repeatability is better than 0.2%Measurement cycle500ms (2 times per second, each cycle to collect 128 sets of data)Maximum flow rate64m / s (flow rate resolution 0.001m / s)Display2 × 10 Chinese character backlit LCD can display instantaneous flow and positive, negative, net cumulative flow, flow rate, etc.Operation4 × 4 touch the keyboard (F4 converter magnetic 4 button) operation.Signal input3 4-20mA analog input, precision 0.1%, can enter the pressure, level, temperature and other signals.2-way three-wire PT100 platinum resistanceData storageOptional built-in data memory (SD card) can store time, instantaneous flow, cumulative flow, signal status, etc. Through specialsoftware can be imported into the computer data, easy to statistics and management.Communication protocolMODBUS protocol, M-BUS protocol, FUJI expansion protocol, and compatible with other domesticOther features512 days before the first memory, the first 128 months, the first 10 years positive / negative / net cumulative flow.Automatically remember the first 30 times, power and time and flow can be achieved automatically or manually add traffic, readthrough the MODBUS protocol.Related productsCompany ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.FAQFAQ for Our Company1. Experienced company -- 15 years experience in supplying ultrasonic measurement equipment. 2. MOQ:1set 3. We accept T/T. Western Union.PayPal & Secure Payment 4. We offer 18 Month's Warranty on all product 5. Service express company:TNT/DHL/FedEX.
