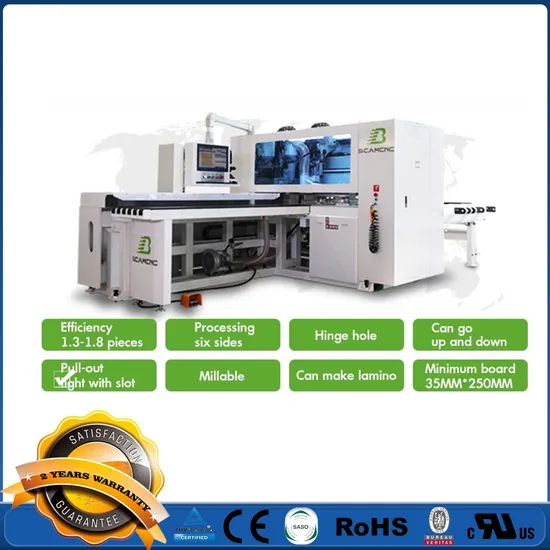

CNC Wood Fully Automatic 6 Six Sides Drilling Machine Automatic CNC Boring Machine for Woodworking MDF PVC

Product Description

CNC Wood Fully Automatic 6 Six Sides Drilling Machine Automatic CNC Boring Machine for Woodworking MDF PVC
Product Description
Features
1.Quickly and accurately,can drill multi kinds of hole and there is no limit to the board width
2.Specially developed for horizontal perforater plate custom furniture
3.Drive motor adopts servo motor equipped with reducer easily ensure machine run fast and smooth
4.Control system adopts the domestic high quality touch screen, operation.

Advantage
Save time, save human labor , high efficiency , the tolerance of the hole is very small .
1.The adoption of imported drillers improves durability
2,Selection of high quality steel machine parts,and it is never performed by high-strength heat treatment;
3,Equipped with digital calculator to measure size which enhances the work efficiency.
4.High quality infrared sensor,with high sensitivity,to ensure accurate positioning.
5.The feeding table is an air floating table, which can effectively protect the sheet from being scratched in the process of sliding.

Machine Name	Six side drilling machine
Machine Model	BCM612
Panel length	250-2800mm
Panel width	50-1200mm
Panel thickness	12-50mm
Max. Working Speed	135/135/75/30m/min
Spindle	3.5/3.0kw Air Cooling *2
Spindle Speed	18000rpm
Upper Vertical Drill	12 pcs*2
Bottom l drilling	9 pcs
Horizontal boring	X axis: 2*4 Y axis 2*2
Drive Motors	Japanese Yaskawa servo motor and drivers
Working Voltage	AC380v/50HZ/3 phase
Net weight	3500 kgs
Overall dimension	5900*2640*2100mm

Detailed Photos
1.Taiwan Control system and operation system
more reliable electricity components, Industry level computer. Open system design, it not only be docked with diversified data formats, but also flexible docking with cnc router , Edge banding machine by code ,etc
2.2 pcs boring unit
Horizontal Dril: X axis:2*4; Y axis: 2*2 Upper Vertical Drill: 12 PCS *2 Bottom Drilling : 9 PCS
Application&samples
Applied Materials
various artificial plates, solid wood plates, semi-solid wood plates,mdf,pvc, and trough processing applications.
Application industry
Production of closet, kitchen cabinet punching and slotting processing in plate type furniture factory
Related Products
If you have any questions, please contact us
Certifications

Company Profile
Jinan BCAMCNC Machinery Co., Ltd., established in 2002, specializing in CNC machinery with rich experience!The company has two factories: CNC Router and laser machine factories and plants.
BCAMCNC is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficienct CNC machines worldwide. With a strong staff team, "Brand BCAMCNC" gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion.
"BCAMCNC Products are widely used in the fields of advertising, furniture, jewelry pieces, gifts, packaging etc., materials of metal, wood, stone, leather etc."BCAMCNC"is wellknown not only in China, but also in Russia, Southeast Asia, Middle East, Africa, the Americas, India and other foreign countries.
BCAMCNC has already established branches in Shanghai , Dongguan, as well as foreign countries, such as Armenia , UK and Georgia. This year, BCAMCNC established long-term cooperative relationship with internationally renowned company, Shanghai Bcamtech CO.,LTD
In addition, we have established long-term cooperative relations in the field of laser machines with BCMTECH to develop CNC solution . BCAMCNC always adhere to the principle --- First class reputation, first-class service and excellent products.
By Global High-Tech CNC Equipment Supplier---BCAMCNC
After-sales service
#24 months guarantee of 3d wood cnc cutting machines router with auto tool changer, we will provide the consumable parts at an agency price when you need replacement.
# Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period
# Software is on update for free whole life.
# Our engineer could support you technology to your country if necessary.
# Our engineer could service on weekend even on vacation.
# Our engineer could train you in our factory for free.
# Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
# English manual and CD video for machine using and maintaining will send to you with the machine.
Customer praise

Packaging & Shipping
1.How is the packing?
1).The Big size manual 3d cnc router machines woodworking with oversea service is packaged with Standard plywood case, its compressive strength and bearing quality is better.
2).the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3).when importing, the plywood case is with fumigation-free, the procedure is simple.
2.How long is the delivery time?
For standard machine, it would be 7-10 working days;
For non-standard and customized machines according to client's specific requirements, it would be 15-30 working days.



FAQ
Q1: How do I get the best price?
A: Different type of CNC machine apply to the different price.
Q2: What machine suits me best?
A: Different material and the different model apply to the different machine.Please tell us what's material you want to cutting or engraving ?And what's MAX size of carved material ?We will recommend the most suitable model and the best price for you.
Q3: What should I do if the machine fails during warranty period?
A: Just contact us----our sales are online for 24-hours and ready to help.Replacement of damaged parts for free(make sure it is not broken because of wrong operation).The CD and operation manual----It shows the most common failures in working processing and how to solve the problems.
Q4: Are you trading company or manufacturer?
A: We are a factory direct sale, can guarantee you got the best product at the best price.All the products have CE, ISO certifications, all the machines are tested well before delivery. There is a 12 months warranty.
Q5: How long is your delivery time?
A:Generally it is a weekday if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according to your quantity.
If you have any questions, please contact us
