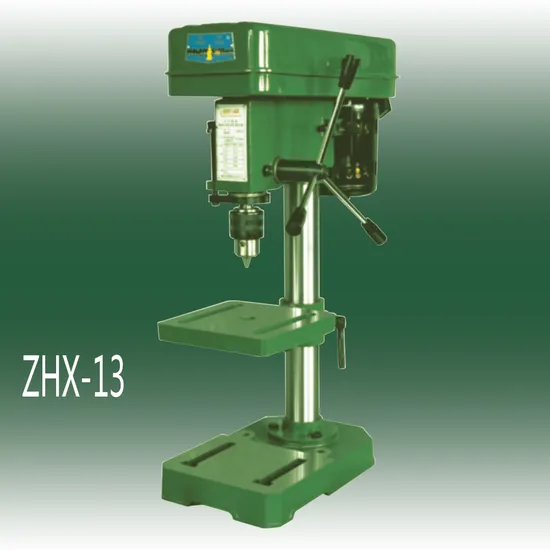

High Speed Light Bench Drill Zhx-13 Table High Precision Drilling Machine Maximum Diameter 13 mm
| US$184.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZHX-13
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Motor
180W
Max Drilling Capacity
13 mm
Transport Package
Wooden Case
Specification
47x33.5x24.5cm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300
Product Description
| Model | ZHX-13 | ZQ4113II/ZQ4116II | ZQ4113/ZQ4113B | ZQ4116/ZQ4119 | ZQ4125/ZQ4132 | ZQD4125/ZQD4132 |
| Max.drilling capacity | 13mm | 13mm/16mm | 13mm | 16/19mm | 25/31.5mm | 25/31.5mm |
| Diameter of column | 48mm | 73mm | 70mm | 70mm | 85mm | 85mm |
| Spindle travel | 50mm | 85mm | 85mm | 85mm | 110mm | 110mm |
| Distance spindle axis to column surface | 103mm | 165mm | 180mm | 180mm | 200mm | 200mm |
| Max.distance spindle nose to worktable | 220mm | 328mm/390mm | 318mm | MT.2:432mm(B18:400mm) | 485mm | 490mm |
| Max.distance spindle nose to base | 300mm | 488mm/562mm | 475mm | MT.2:592mm(B18:560mm) | 670mm | 1240mm |
| Spindle taper | B16 | B16/MT.2 | B16 | MT.2 or B18 | MT.3 | MT.3 |
| Spindle speeds range | 515-2580rpm | 420-2800rpm/210-2900rpm | 450-2650rpm | 400-2420or270-2880rpm | 200-2260rpm/150-2270rpm | 200-2260rpm/150-2270rpm |
| Spindle speeds | 5 | 5/12 | 5 or 12 | 9/12 | 9/12 | |
| Dimension of worktable surface | 165x162mm | 230x230mm/250mm | 240x240mm/300mm | 240x240or 300mm | 280x280 or 360mm | 280x280or 360mm |
| Dimension of base worktable surface | 140x178mm | 210x210mm | 220x220mm | 220x220mm | 300x300mm | 300x300mm |
| Overall height | 581mm | 825mm/890mm | 858mm | 956mm | 1109mm | 1680mm |
| Motor | (1 phase)150or 180(3 phase) | 250W(1 phase)or370W(3 phase)/370W | 370W | 370W/550W | 550(1 phase)or750(3 phase)W | 550(1 phase)or750(3 phase)W |
| G.W/N.W. | 23/21kg | 43/40kg/47/44kg | 62/59.5kg(ZQ4113B) | 62/59kg | 110/107.5kg | 125/120kg |
| 60/55kg(ZQ4113) | ||||||
| Ship measurement | 47*33.5x24.5cm | 80x46x23cm | 92x52x28cm | 92x52x28cm | 110x77x34cm | 110x77x34cm |
