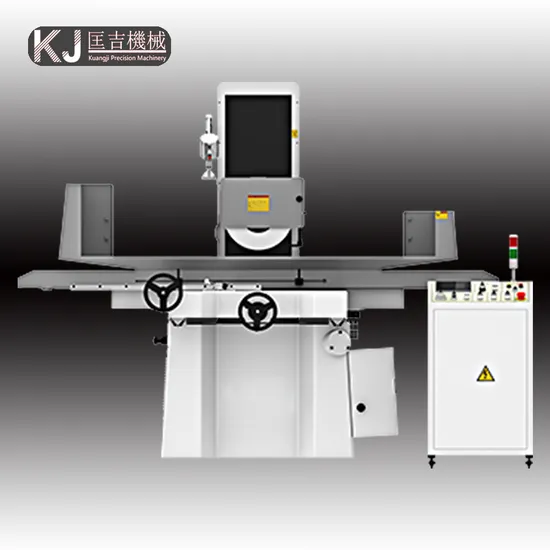

CNC Precision Surface Grinding Machine Psg-804wms Flat Grinder Saddle Type Three-Axis Automatic Series
| US$33,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PSG-804WMS
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Voltage
380V
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300
Product Description
PSG-804WMS Standard model configuration:Three-axis automatic, up and down Mitsubishi/Siemens servo, direct turbo worm, water tank, electromagnetic suction cup (magnetic strength can be adjusted), front and rear use ball screw (frequency conversion control) electric cabinet 7 inch touch screen, magnetic separator, large wall panel| Technical parameters | ||||||||||
| Item | Specification | Unit | PSG-818AH | PSG-818AHR | PSG-306AH | PSG-306AHR | PSG-804AHR | PSG-4510/5010AHR | ||
| Capacity | Overall table working area | mm | 460x200 | 460x200 | 600x300 | 600x300 | 800x400 | 1000x450 | 1000x500 | |
| Longitudinal table travel | mm | 560 | 560 | 700 | 700 | 860 | 1160 | |||
| Cross feed table travel | mm | 250 | 250 | 350 | 350 | 480 | 500 | 540 | ||
| Distance spindle center to table | mm | 470 | 470 | 525/(Standard)725/(Extended) | 525/(Standard)725/(Extended) | 580/(Standard)700/(Extended) | 585 | 585 | ||
| Table & Cross feed | Table load including magnetic chuck | kgs | 120 | 120 | 420 | 420 | 700 | 800 | 900 | |
| T-slot | mmxn | 14x1 | 14x1 | 14x1 | 14x1 | 14x3 | 16x3 | |||
| Longitudinal table speed | m/Min | 5-25 | 5-25 | 5-25 | 5-25 | 5-25 | 5-25 | |||
| Slide way | 1V1Flat | 1V1Flat | 1V1Flat | 1V1Flat | 1V1Flat | 1V1Flat | ||||
| Cross feed on hand wheel | lgra | mm | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | ||
| lrev | mm | 4 | 4 | 4 | 4 | 4 | / | |||
| Auto cross feed per stroke | mm | 0.1-8 | 0.1-8 | 0.1~8 | 0.1~8 | 0.1~8 | 0.1~8 | |||
| Power cross feed | 50HZ | mm | 820 | 820 | 790 | 790 | 990 | 700 | ||
| 60HZ | mm | / | / | 950 | 950 | 1190 | 800 | |||
| A few axis nc | unit | / | / | / | / | / | / | |||
| Grinding wheel | Wheel dimension | mm | 205x6~20x31.75 | 205x6~20x31.75 | 355x20~40x127 | 355x20~-40x127 | 355x20~40x127 | 355x20~50x127 | ||
| Spindle speed | 50HZ | R.P.M | 2850 | 2850 | 1450 | 1450 | 1450 | 1450 | ||
| 60HZ | R.P.M | 3420 | 3420 | 1740 | 1740 | 1740 | 1740 | |||
| Vertical movement | Vertical on handwheel | lgra | mm | 0.01 | 0.01 | 0.01 | 0.01 | 0.005 | 0.005 | |
| lrev | mm | 2 | 2 | 2 | 2 | 1 | 1 | |||
| Spindle speedAuto down feed elevation | mm | / | / | / | / | / | / | |||
| Power head increment | mm/min | / | 380 | / | 380 | 190 | 190 | |||
| Motor | Spindle motor | HXP | 2x2 | 2x2 | 5x4 | 5x4 | 7.5x4 | 7.5x4 | ||
| Power elevation motor | W | / | 150 | / | 150 | 150 | 150 | |||
| Hydraulic motor | HXP | 1x4 | 1X4 | 2x4 | 2x4 | 3x6 | 3x6 | |||
| Cross feed motor | W | 40 | 40 | 80 | 80 | 80 | 80 | |||
| Dust collection motor | HXP | 3/4x2(customizable) | 3/4x2(customizable) | / | / | / | / | |||
| Coolant motor | HXP | 1/8x2 | 1/8x2 | 1/8x2 | 1/8x2 | 1/8x2 | 1/8x2 | |||
| Dimension & Weight" | Machine height | mm | 1775 | 1775 | 1900/(Standard)2100/(Extended) | 1900/(Standard)2100/(Extended) | 1930/(Standard)2050/(Extended) | 1993/(Standard) | ||
| Floor space | mm | 2080x1400 | 2080x1400 | 2620x1700 | 2620x1700 | 3330x2040 | 4140x2330 | |||
| Net weight | kgs | 1450 | 1470 | 1750 | 1760 | 3000 | 3800 | 4200 | ||
| Gross weight | kgs | 1550 | 1570 | 1950 | 1960 | 3500 | 4800 | 5200 | ||
