Leabon CE Certification Maize Stalk Crusher Straw Bale Shredding Machine Price

Product Description

Leabon CE Certification Maize Stalk Crusher Straw Bale Shredding Machine Price
Product Description

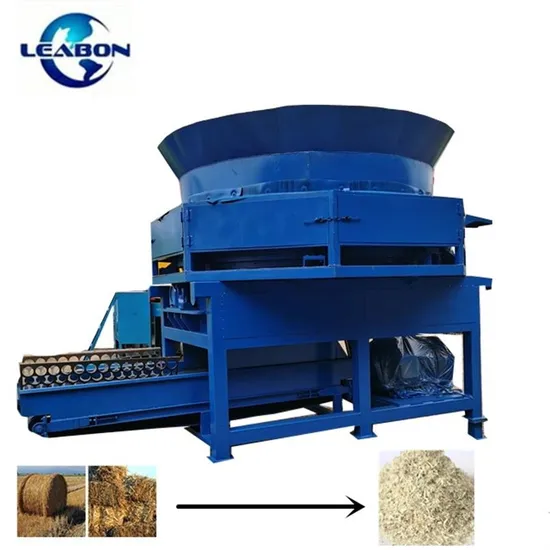

Vertical Straw Bales Shredder
The combined tractor power of F1000 is 90~180 hp, the rotational speed of the PTO shaft is 1000r/min. According to the different grass grinding lengths, the production efficiency can reach 3-15 tons per hour, and for grain grinding like corns, it can reach 40-70 tons per hour. Besides meeting the farm's self-use requirement of 5000 heads beefs, it can be also used to process for other farms to collect extra fee, thereby improve the utilization rate of the equipment and increase more benefits.

Product Parameters

Model	9FC-80	9FC-100	9FC-130	9FC-150	9FC-300
Power	22-30kw	45-55kw	75kw	90kw	90-110kw
Capacity	2-3t/h	3-5t/h	5-7t/h	8-10t/h	8-12t/h
Crushing effect	3-8cm	3-8cm	3-8cm	3-8cm	3-8cm
Top diameter	1800mm	2200mm	2600mnm	2800mm	3000mm
Bottom diameter	1500mm	1800mm	2200mm	2400mm	2600mm
Number of blades	24pcs	24pcs	24 pcs	24 pcs	24pcs
Discharge method	Spray	Spray type / bottom discharge	Bottom discharge	Bottom discharge	Bottom discharge
Total Weight	1700kg	2300kg	2800kg	4300kg	4500kg
Dimensions	3.2*1.8*2m	3.6*2.2*2.3m	4*2.6*2.5m	4.7*2.8*2.8m	4.7*3*2.8m

Belt Grass Bale Shredder
Product Description
Straw Bales Shredder is widely used in cutting straw, peanut vine, sweet potato vine, corn stalk, cotton stalk, grass, seaweed and all kinds of tree branches, essential equipment for large and medium farm, biomass power station, biogas digester, and biomass fuels plant and so on.
It can handle all kinds of bales with different thicknesses, different lengths, and different moisture contents, with a wide range of moisture and adaptability, and convenient disassembly and transportation.
Product Parameter

Model	9FC-80	9FC-100	9FC-130	9FC-150	9FC-300
Power	22-30kw	45-55kw	75kw	90kw	90-110kw
Capacity	2-3t/h	3-5t/h	5-7t/h	8-10t/h	8-12t/h
Crushing effect	3-8cm	3-8cm	3-8cm	3-8cm	3-8cm
Top diameter	1800mm	2200mm	2600mnm	2800mm	3000mm
Bottom diameter	1500mm	1800mm	2200mm	2400mm	2600mm
Number of blades	24pcs	24pcs	24 pcs	24 pcs	24pcs
Discharge method	Spray	Spray type / bottom discharge	Bottom discharge	Bottom discharge	Bottom discharge
Total Weight	1700kg	2300kg	2800kg	4300kg	4500kg
Dimensions	3.2*1.8*2m	3.6*2.2*2.3m	4*2.6*2.5m	4.7*2.8*2.8m	4.7*3*2.8m

Structure of Belt Grass Bale Shredder
Raw Material
Final Product

Packaging & Shipping
Normally, we adopt wooden case or container.If export to European countries,the wooden box will be fumigated.If container is too small,we will use PE film for packing or pack it according to customers special request.
Our transport operators & delivery facilities are ready on time and when the contains arrive at the factory , they are guaranteed to ship according to the scales .
Company Profile
1.Long Time Warranty, 2 Years. (Exclude Wearing Parts)
2.Offering Wearing Parts at Lower Price in the Future.
3.Prompt Response for your Doubts or Requirement.
4.Professional Solutions with different Demands.
5.SGS, BV Certificates for your Company, which means Trusbable Supplier in China.
6.CE, ISO Certificates of our Machine.
Customer Feedback
FAQ

Q1:What is your raw material ? ------Straw, peanut vine, sweet potato vine, corn stalk, cotton stalk, grass, seaweed and all kinds of tree branches, etc.

Q2:What is this capacity? ------2-3t/h,3-5t/h,5-7t/h,8-10t/h.

Q3:What's the machine application? ------This machine is widely used in large and medium farm, biomass power station, biogas digester, and biomass fuels plant and so on.

Q4:How many size we can produce with this machine? ------You can choose any size according to you need.

Q5: What's your payment terms? ------Payment terms: T/T; L/C; Western Union; Money Gram.
